diagrams-mcp-server

MCP server for generating cloud architecture diagrams, flowcharts, sequence diagrams, and more — powered by three rendering engines: mingrammer/diagrams, Mermaid, and PlantUML.

Getting Started

Hosted (Recommended)

Connect to the public hosted server — no installation required. All rendering engines and dependencies are pre-installed.

{
  "mcpServers": {
    "diagrams-mcp": {
      "url": "https://diagrams-mcp-production.up.railway.app/mcp"
    }
  }
}

claude mcp add diagrams-mcp https://diagrams-mcp-production.up.railway.app/mcp

{
  "mcpServers": {
    "diagrams-mcp": {
      "url": "https://diagrams-mcp-production.up.railway.app/mcp"
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "url": "https://diagrams-mcp-production.up.railway.app/mcp"
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "serverUrl": "https://diagrams-mcp-production.up.railway.app/mcp"
    }
  }
}

{
  "servers": {
    "diagrams-mcp": {
      "type": "http",
      "url": "https://diagrams-mcp-production.up.railway.app/mcp"
    }
  }
}

Local Installation

Prerequisites

Graphviz is required for the core diagram rendering engine. Mermaid CLI and PlantUML are optional — install them only if you need those specific rendering engines.

Note: The hosted server has all dependencies pre-installed. Local prerequisites only apply if you're running the server yourself.

Install the server

Via uvx (recommended):

uvx diagrams-mcp-server

Via pip:

pip install diagrams-mcp-server

From source:

pip install git+https://github.com/ByteOverDev/diagrams-mcp.git

Configure your MCP client

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "uvx",
      "args": ["diagrams-mcp-server"]
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "diagrams-mcp-server"
    }
  }
}

claude mcp add diagrams-mcp -- uvx diagrams-mcp-server

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "uvx",
      "args": ["diagrams-mcp-server"]
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "diagrams-mcp-server"
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "uvx",
      "args": ["diagrams-mcp-server"]
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "diagrams-mcp-server"
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "uvx",
      "args": ["diagrams-mcp-server"]
    }
  }
}

{
  "mcpServers": {
    "diagrams-mcp": {
      "command": "diagrams-mcp-server"
    }
  }
}

{
  "servers": {
    "diagrams-mcp": {
      "type": "stdio",
      "command": "uvx",
      "args": ["diagrams-mcp-server"]
    }
  }
}

{
  "servers": {
    "diagrams-mcp": {
      "type": "stdio",
      "command": "diagrams-mcp-server"
    }
  }
}

Available Tools

Discovery

• list_providers() → list[str] — List all diagram providers (aws, gcp, k8s, azure, onprem, etc.)
• list_services(provider) → list[str] — List service categories within a provider (e.g. aws → compute, database, network)
• list_nodes(provider, service) → list[dict] — List node classes for a provider.service pair with import paths
• search_nodes(query) → list[dict] — Search for nodes by keyword across all providers (e.g. "postgres", "lambda")

Rendering

• render_diagram(code) → Image (PNG) — Execute a Python script using mingrammer/diagrams in a sandboxed subprocess. Returns a rendered cloud architecture diagram.
• render_mermaid(definition) → Image (PNG/SVG) — Render a Mermaid diagram definition (flowcharts, sequence, class, ER, state, Gantt, and more).
• render_plantuml(definition) → Image (PNG) — Render a PlantUML diagram definition (sequence, class, component, activity, state, deployment).

Cross-Provider Equivalence

• find_equivalent(node, target_provider?) → dict — Find equivalent services across cloud providers (e.g. EC2 → ComputeEngine on GCP).
• list_categories() → list[dict] — List all 30 infrastructure role categories with mapped nodes across providers.

Resources

The server provides reference documentation accessible via MCP resource URIs:

Examples

Cloud Architecture (mingrammer/diagrams)

"Draw an AWS architecture with an ALB routing to two ECS services, backed by RDS and ElastiCache"

from diagrams import Diagram, Cluster
from diagrams.aws.network import ALB
from diagrams.aws.compute import ECS
from diagrams.aws.database import RDS, ElastiCache

with Diagram("ECS Service", direction="LR"):
    lb = ALB("ALB")

    with Cluster("ECS Cluster"):
        services = [ECS("Web"), ECS("API")]

    lb >> services
    services[0] >> ElastiCache("Cache")
    services[1] >> RDS("Database")

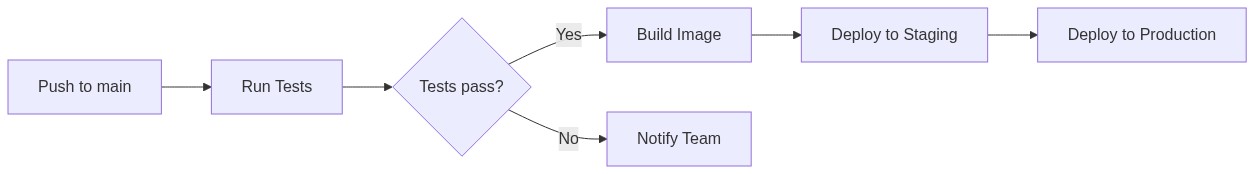

Flowchart (Mermaid)

"Create a flowchart showing a CI/CD pipeline"

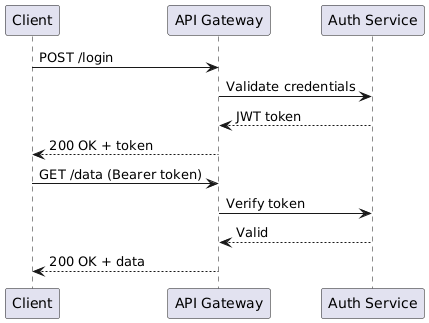

Sequence Diagram (PlantUML)

"Show the authentication flow between a client, API gateway, and auth service"

@startuml
Client -> "API Gateway": POST /login
"API Gateway" -> "Auth Service": Validate credentials
"Auth Service" --> "API Gateway": JWT token
"API Gateway" --> Client: 200 OK + token
Client -> "API Gateway": GET /data (Bearer token)
"API Gateway" -> "Auth Service": Verify token
"Auth Service" --> "API Gateway": Valid
"API Gateway" --> Client: 200 OK + data
@enduml

Development

# Clone and install
git clone https://github.com/ByteOverDev/diagrams-mcp.git
cd diagrams-mcp
pip install -e ".[dev]"

# Run tests
pytest

# Lint and format
ruff check .
ruff format .

# Run the MCP server locally (stdio mode)
diagrams-mcp-server

Supported Providers

The render_diagram tool supports all providers from the mingrammer/diagrams library, including:

AWS, GCP, Azure, Kubernetes, On-Premise, AlibabaCloud, OCI, OpenStack, DigitalOcean, Elastic, Outscale, Generic, and Custom nodes.

Use list_providers() and search_nodes(query) to discover available nodes.

License

MIT
