Android MCP Toolkit for AI Agents

Small MCP server with three tools:

• Fast SVG → Android VectorDrawable conversion (cached, file or inline).
• adb logcat reader with package/pid/tag filters for quick crash triage.
• Translation length difference estimator to flag risky length deltas before layout breaks.

Why this exists

The Mission: Bringing Native Android to the AI Agent Era

While the AI ecosystem flourishes with web-first tools, Android development often feels left behind. This MCP server is my answer to that gap—a dedicated bridge connecting AI Agents directly to the Android toolchain.

⚡ Zero-Friction Asset Conversion: Convert SVGs to VectorDrawables instantly without the overhead of launching Android Studio.

🔍 Direct Diagnostic Access: Empower agents to pull, filter, and analyze adb logcat streams (by package, PID, or tag) in real-time.

🤖 Agent-Native Architecture: Deliver structured, scriptable outputs that LLMs can parse and act upon efficiently.

🚀 Built for Extensibility: A solid foundation designed to grow, paving the way for future utilities like bitmap helpers and asset validation.

Pairing ideas

• Figma MCP: grab SVGs from designs, feed to convert-svg-to-android-drawable to get XML for Android resources.
• Debugging: while running the app, call read-adb-logcat with package name or tag to capture crashes and filtered logs without leaving the MCP client.

Previews

SVG to VectorDrawable

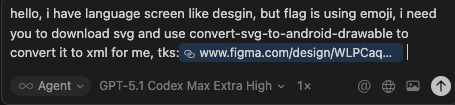

• Figma request → SVG extraction

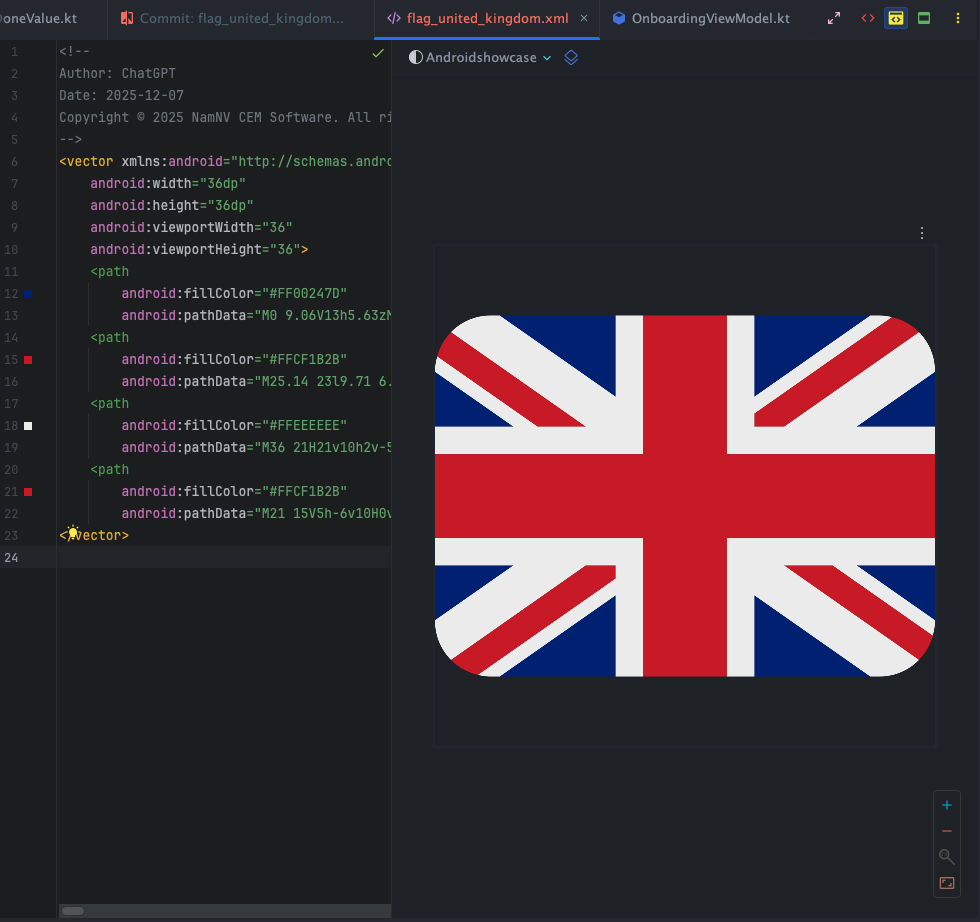

• Flag conversion preview (single)

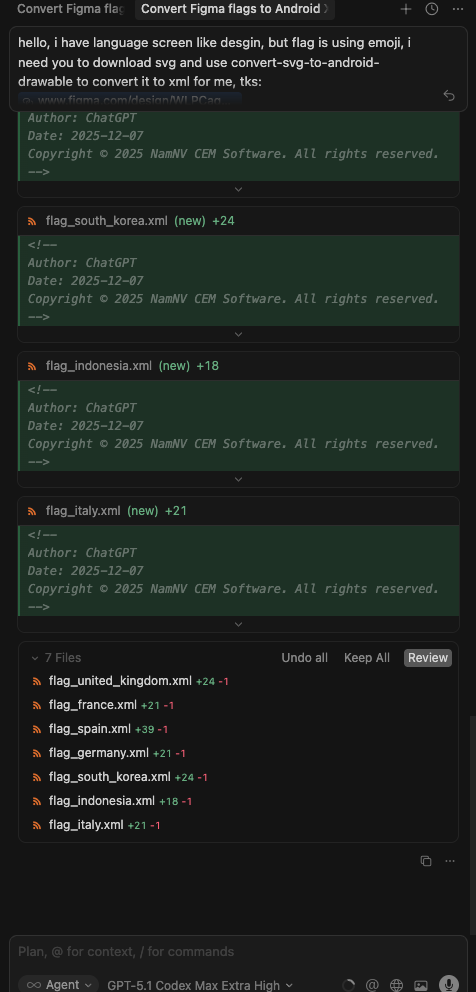

• Batch flag review (side-by-side)

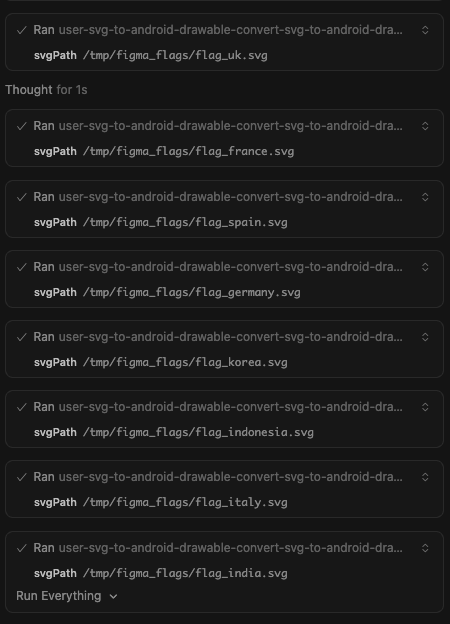

• Batch run via MCP (console)

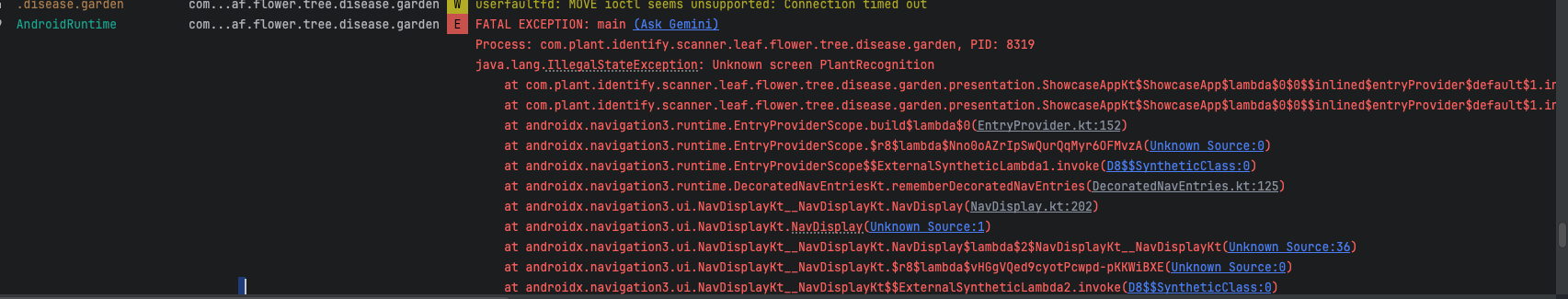

ADB logcat tool

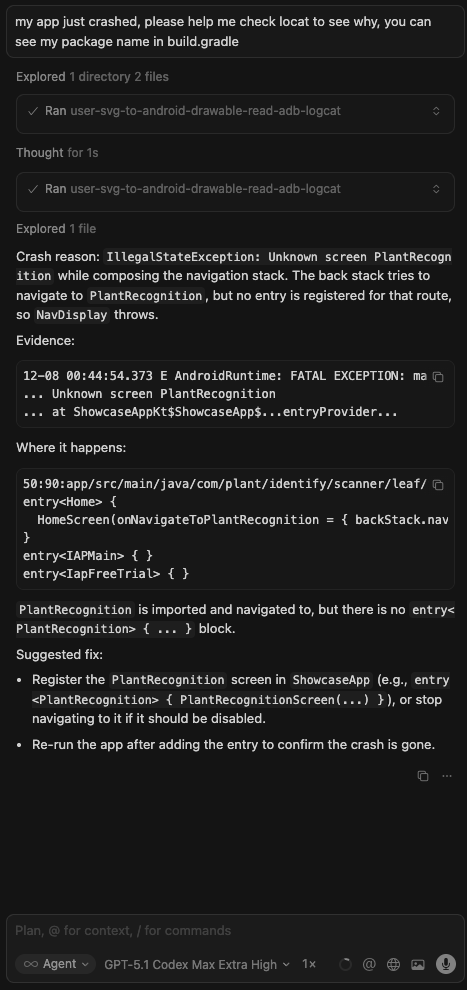

• Crash capture prompt (inputs + filters)

• Response preview (summarized logcat)


Current tools

• convert-svg-to-android-drawable

  • Inputs: svg (inline) or svgPath (file path). Optional: outputPath, floatPrecision (default 2), fillBlack (default false), xmlTag (default false), tint, cache (default true).
  • Output: VectorDrawable XML text; also writes to disk when outputPath is provided.
  • Performance: LRU cache (32 entries) keyed by SVG + options plus fast reuse in-session.
  • Converter: vendored fork in vendor/svg2vectordrawable with fixes for rgb()/rgba(), hsl()/hsla(), and named colors. Upstream license: vendor/svg2vectordrawable/LICENSE (MIT).

• manage-logcat

  • Inputs:
    • action: read (default), crash, anr, or clear.
    • packageName: Optional. Resolves PID via adb shell pidof.
    • pid: Optional. Explicit PID.
    • tag: Optional. Filter by tag (e.g. MyApp).
    • priority: V, D, I, W, E, F, S (default V).
    • maxLines: Tail count (default 200, max 2000).
    • timeoutMs: Default 5000.
  • Behavior:
    • read: Fetches logcat tail.
    • crash: Fetches logcat -b crash.
    • anr: Fetches recent ActivityManager ANR logs + tail of /data/anr/traces.txt.
    • clear: clears logcat buffers.

• get-current-activity

  • Inputs: timeoutMs (default 5000, max 15000).
  • Behavior: Inspects dumpsys window to find the currently focused app/window. Useful to verify state.

• dump-ui-hierarchy

  • Inputs: timeoutMs (default 10000).
  • Behavior: Captures current UI hierarchy as XML via uiautomator.

• take-screenshot

  • Inputs: outputPath (required), timeoutMs.
  • Behavior: Saves device screenshot to local file.

• inject-input

  • Inputs: command (tap, text, swipe, keyevent, back, home), args (array), timeoutMs.
  • Optional: elementId or elementText (finds element center and taps it).
  • Behavior: Simulates user interaction suitable for testing flows.

• estimate-text-length-difference

  • Inputs: sourceText (original), translatedText (to compare), tolerancePercent (default 30, max 500).
  • Behavior: Measures grapheme length of both strings, computes percent change, and reports whether it exceeds the tolerance (useful to catch translation length blowups that could break layouts).

Roadmap (planned)

• Additional MCP tools for Android assets (e.g., batch conversions, validations, optimizers).
• Optional resource prompts for common Android drawables/templates.

Quick start

• npm install
• npm run build
• node dist/index.js (stdio MCP server)

Run via npx

• Global: npx android-mcp-toolkit

Use in Cursor (MCP config)

Add to your Cursor settings JSON:

{
  "mcpServers": {
    "android-mcp-toolkit": {
      "command": "npx",
      "args": [
        "-y",
        "android-mcp-toolkit"
      ]
    }
  }
}

The npx call downloads the published package; no local path required.

Quick install via Cursor deep link:

• cursor://anysphere.cursor-deeplink/mcp/install?name=android-mcp-toolkit&config=eyJjb21tYW5kIjoibnB4IC15IGFuZHJvaWQtbWNwLXRvb2xraXQifQ%3D%3D

Examples

• Input SVG: sample_svg.svg
• Output VectorDrawable: examples/sample_svg.xml

Notes

• Transport: stdio via @modelcontextprotocol/sdk.
• Base deps kept minimal; everything needed to convert SVGs is vendored/included.
