This fork of DrawDB extends the original with AI assistant integration via Model Context Protocol (MCP). AI assistants like Claude can now create, modify, and manage database diagrams programmatically through a WebSocket API.

Demo Video

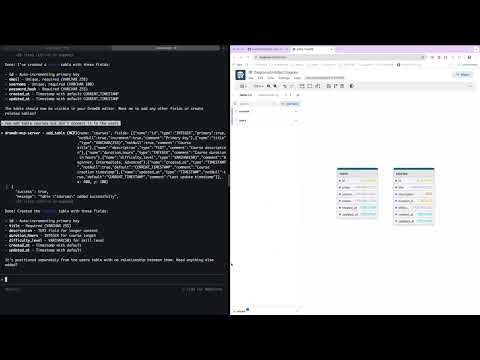

DrawDB MCP Integration Demo

Watch how to design database schemas using natural language with Claude AI.

Architecture:

  • apps/gui: Original React-based DrawDB frontend
  • apps/backend: NestJS MCP server that enables AI assistants to control the diagram editor
  • Built with Turborepo and pnpm workspaces

Getting Started

Quick Start with Docker (Recommended)

The easiest way to get started is using Docker:

docker run \
  --name drawdb-mcp \
  -p 8080:80 \
  -p 3000:3000 \
  --restart unless-stopped \
  ghcr.io/anatoly314/drawdb-mcp:latest

Then:

  1. Open GUI: http://localhost:8080
  2. Connect Claude Code to the MCP server:
claude mcp add --transport http drawdb-mcp http://127.0.0.1:3000

Now Claude can create and modify database diagrams for you!

See GHCR_DEPLOYMENT.md for available tags and advanced usage.

Local Development

Prerequisites

  • Node.js 20+
  • pnpm 8.15.0+ (install via npm install -g pnpm)

Start both GUI and backend:

git clone https://github.com/anatoly314/drawdb-mcp
cd drawdb-mcp
pnpm install
pnpm dev

Start GUI only:

pnpm gui:dev
# Access at http://localhost:5173

Start backend only:

pnpm backend:dev
# WebSocket at ws://localhost:3000/remote-control

Build

Build both applications:

pnpm install
pnpm build

Build specific app:

pnpm build --filter=gui
pnpm build --filter=backend

Connect Claude Code to MCP Server

When running locally, connect Claude Code:

claude mcp add --transport http drawdb-mcp http://127.0.0.1:3000

The frontend automatically connects to the backend via WebSocket for real-time updates.

Docker Deployment

See DOCKER_BUILD.md for detailed build instructions.

Build with Docker Compose:

docker-compose up --build
# Access at http://localhost:8080

Or build directly:

docker build -t drawdb-mcp:local .
docker run -p 8080:80 -p 3000:3000 drawdb-mcp:local

The Docker image includes both frontend and backend. WebSocket is proxied through Nginx.
