mcp-sharepoint

A Model Context Protocol (MCP) server that exposes core Microsoft SharePoint / Microsoft Graph API functionalities as tools usable by LLM agents (e.g. Claude Desktop).

This server is designed with an agent-first approach:

• no direct access to the local filesystem
• deterministic inputs and outputs

---

✨ Features

The server allows an agent to:

📁 Folder management

A path can/must be passed as an argument

• List folders
• Create new folder
• Delete folder (only if empty)
• Retrieve the folder tree structure

📄 Document management

A path can/must be passed as an argument

• List documents
• Read document content (PDF, Word, Excel, PowerPoint)
• Upload new document (text or binary)
• Update an existing document (replace the full content)
• Delete document

---

🔐 Prerequisites

• Node.js
• A Microsoft 365 tenant
• An app registered in Microsoft Entra ID with Graph permissions

Recommended Graph permissions

Sites.Read.All
Sites.ReadWrite.All
Files.Read.All
Files.ReadWrite.All

⚠️ Use Application permissions

---

• Authentication through Microsoft Entra ID App Registration
• All operations are performed via Microsoft Graph

---

🧭 Step by step guide to register an app

if you already have an app registered you can skip this part

1. Go to your Microsoft Entra website https://entra.microsoft.com/...
2. Click on the left menu on "app registration"
3. Click on "New registration"
4. Insert a name of your liking and click "Register"

🧭 Step by step guide to authorizations

if you already have authorizations set, you can skip this part

1. Go to your Microsoft Entra website https://entra.microsoft.com/...
2. On the left menu click on "app registration"
3. Click on you registered app in the table
4. On the second left menu click on "API authorizations"
5. Click on "Add authorization"
6. Click on "Microsoft Graph"
7. Click on "Application authorization"
8. If this is your first time, or you are not familiar with authorizations, type in the search bar "sites"
9. Select "Sites.FullControl.All" and select "Add authorizations"

⚠️This authorization gives full control to the app, it is recommended to use the least privilege authorization needed

10. Click on "Consent admin acces for name", and then click yes

🧭 Step by step guide to obtain the parameters for sharepoint

if you already know the client_id, client_secret, tenant_id, site_id, drive_id, list_id, you can skip this part

1. On Microsoft Entra website https://entra.microsoft.com/, on the left menu click on "app registration"
2. Click on you registered app in the table
3. On top infos you can see the client id and tenant id as ID application (client) and ID directory (tenant)
4. Click on "Client credentials: 0 certificates, 0 secrets"
5. Click on "New client secret"
6. Insert the desired description and expire time, and click "Add"
7. In the table there will be the new client secret, copy the "Value" field.

⚠️You can copy it only once, after you will not be able to see the "Value" again

8. The copied "Value" is the client secret
9. Make this request to obtain an access_token needed for the successive requests:

curl --request POST \
  --url "https://login.microsoftonline.com/<TENANT_ID>/oauth2/v2.0/token" \
  --header "Content-Type: application/x-www-form-urlencoded" \
  --data-urlencode "client_id=<CLIENT_ID>" \
  --data-urlencode "client_secret=<CLIENT_SECRET>" \
  --data-urlencode "scope=https://graph.microsoft.com/.default" \
  --data-urlencode "grant_type=client_credentials"

The response is a json, you only need the attribute "access_token"
10. Make this request to obtain the site id, the domain name and site name can be seen on the URL in your Sharepoint site: https://<DOMAIN_NAME>.sharepoint.com/sites/<SITE_NAME>/...

curl -X GET "https://graph.microsoft.com/v1.0/sites/<DOMAIN_NAME>.sharepoint.com:/sites/<SITE_NAME>?select=id" \
  -H "Authorization: Bearer <ACCESS_TOKEN>" \
  -H "Accept: application/json"

The response is a json, you only need the attribute "id"
11. Make this request to obtain the drive id

curl -X GET "https://graph.microsoft.com/v1.0/sites/<SITE_ID>/drives?select=id,name" \
  -H "Authorization: Bearer <ACCESS_TOKEN>" \
  -H "Accept: application/json"

The response is a json, the attribute "value" is an array of json, each json is a different drive, you only need the attribute "id"
12. Make this request to obtain the list id

curl -s -X GET "https://graph.microsoft.com/v1.0/sites/<SITE_ID>/lists?select=id,displayName" \
  -H "Authorization: Bearer <ACCESS_TOKEN>" \
  -H "Accept: application/json"

The response is a json, the attribute "value" is an array of json, each json is a different list, you only need the attribute "id"

🧭 Step by step guide to add custom attributes/columns to Sharepoint

This is optional, tou can search in the default attributes/columns

1. Go to your Sharepoint website https://<DOMAIN_NAME>.sharepoint.com/sites/<SITE_NAME>/...
2. On the left menu, click on "Documents"
3. On the right, after the columns, click on "+ Add column"
4. Select the desired type for the new column, a safe choice is "Multiple lines of text"
5. Enter the name of the new column, other fields are optional and not required
6. Click on "Save"

⚙️ Configuration

The authorization is obtained using app variables. These variables must be provided in every call.

Required app variables

Variable	Description
tenantId	Microsoft Entra directory tenant ID
clientId	Microsoft Entra app client ID
clientSecret	Microsoft Entra client secret

Other common variables needed. These depends on the Sharepoint you are using.

Variable	Description
siteId	Sharepoint full site ID
driveId	Sharepoint drive ID
listId	Sharepoint list ID

---

🧰 Available MCP tools

📁 Folders

getFolders

List folders in a given path.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "path",
  "type": "string",
  "required": "true",
  "descrciption": "The path in SharePoint to retrieve folders from",
  "example": "cartella_1/cartella_2"
}

---

createFolder

Create a new folder.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "path",
  "type": "string",
  "required": "true",
  "descrciption": "The parent path where the folder will be created",
  "example": "cartella_1/cartella_2"
},
{
  "name": "folderName",
  "type": "string",
  "required": "true",
  "descrciption": "The name of the new folder to create",
  "example": "cartella_3"
}

---

deleteFolder

Delete a folder only if it is empty.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "path",
  "type": "string",
  "required": "true",
  "descrciption": "The path to the folder to delete",
  "example": "cartella_1/cartella_2/cartella_3"
}

---

getFolderTree

Retrieve the folder tree structure.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "path",
  "type": "string",
  "required": "false",
  "descrciption": "The starting path (default: 'root')",
  "example": "cartella_1/cartella_2"
},
{
  "name": "maxDepth",
  "type": "number",
  "required": "false",
  "descrciption": "Maximum depth to traverse (default: 10)",
  "example": 5
}

---

📄 Documents

getDocuments

List documents in a folder.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "path",
  "type": "string",
  "required": "true",
  "descrciption": "The path in SharePoint to retrieve documents from",
  "example": "cartella_1/cartella_2"
}

---

getDocumentContent

Retrieve and extract the textual content of a document.

Supported formats:

• Native PDFs
• Word / Excel / PowerPoint (converted to PDF via Graph)

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "filePath",
  "type": "string",
  "required": "true",
  "descrciption": "The path to the file",
  "example": "cartella_1/cartella_2/file.txt"
}

---

uploadDocument

Upload a new document.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "filePath",
  "type": "string",
  "required": "true",
  "descrciption": "The path where the file will be uploaded",
  "example": "cartella_1/cartella_2"
},
{
  "name": "content",
  "type": "string",
  "required": "true",
  "descrciption": "The string or base64-encoded content of the file to upload",
  "example": "Questo è il testo del doc .txt"
},
{
  "name": "contentType",
  "type": "string",
  "required": "false",
  "descrciption": "The MIME type of the content (default: 'application/octet-stream')",
  "example": "application/octet-stream"
},
{
  "name": "overwrite",
  "type": "boolean",
  "required": "false",
  "descrciption": "Whether to overwrite existing files (default: false)",
  "example": true
}

---

updateDocumentContent

Fully update an existing document.

⚠️ The operation replace the full content of the file.
⚠️ The operation fails if the file does not exist.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "filePath",
  "type": "string",
  "required": "true",
  "descrciption": "The path to the existing file to update",
  "example": "cartella_1/cartella_2"
},
{
  "name": "content",
  "type": "string",
  "required": "true",
  "descrciption": "The new string or base64-encoded content of the file",
  "example": "Questo è il nuovo testo del doc .txt"
},
{
  "name": "contentType",
  "type": "string",
  "required": "false",
  "descrciption": "The MIME type of the content (default: 'application/octet-stream')",
  "example": "application/pdf"
}

---

deleteDocument

Delete a document (moved to the SharePoint recycle bin).

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "driveId",
  "type": "string",
  "required": "true",
  "descrciption":" The ID of the drive within the SharePoint site",
  "example": "f!aB12Cd34E5f6aB12cd34E5f6abd37cD37aB12Cd34E5f6aB12cd34E5f6abd3712"
},
{
  "name": "filePath",
  "type": "string",
  "required": "true",
  "descrciption": "The path to the file to delete",
  "example": "cartella_1/cartella_2/file.docx"
},

---

searchDocumentsByKeywords

Search for documents containing at least one of the keywords in the given attribute.

Input:

{
  "name": "clientId",
  "type": "string",
  "required": "true",
  "descrciption": "The application (client) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "clientSecret",
  "type": "string",
  "required": "true",
  "descrciption": "The client secret",
  "example": "1~A1B~aB12Cd34E5f6aB12cd34E5f6ab~d37cD37"
},
{
  "name": "tenantId",
  "type": "string",
  "required": "true",
  "descrciption": "The directory (tenant) ID",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "siteId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint site",
  "example": "namexyz.sharepoint.com,ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6,fb12cd34-e5f6-g7h8-i9j9-ab12cd34e5f9"
},
{
  "name": "listId",
  "type": "string",
  "required": "true",
  "descrciption": "The ID of the SharePoint list to search in",
  "example": "ab12cd34-e5f6-g7h8-i9j9-ab12cd34e5f6"
},
{
  "name": "keywords",
  "type": "Array<string>",
  "required": "true",
  "descrciption": "Array of keywords to search for",
  "example": "["word_1", "word_2", "word_3"]"
},
{
  "name": "attributeName",
  "type": "string",
  "required": "true",
  "descrciption": The document attribute/column to search in",
  "example": "name"
},

---

🚀 Try it on Aisuru!

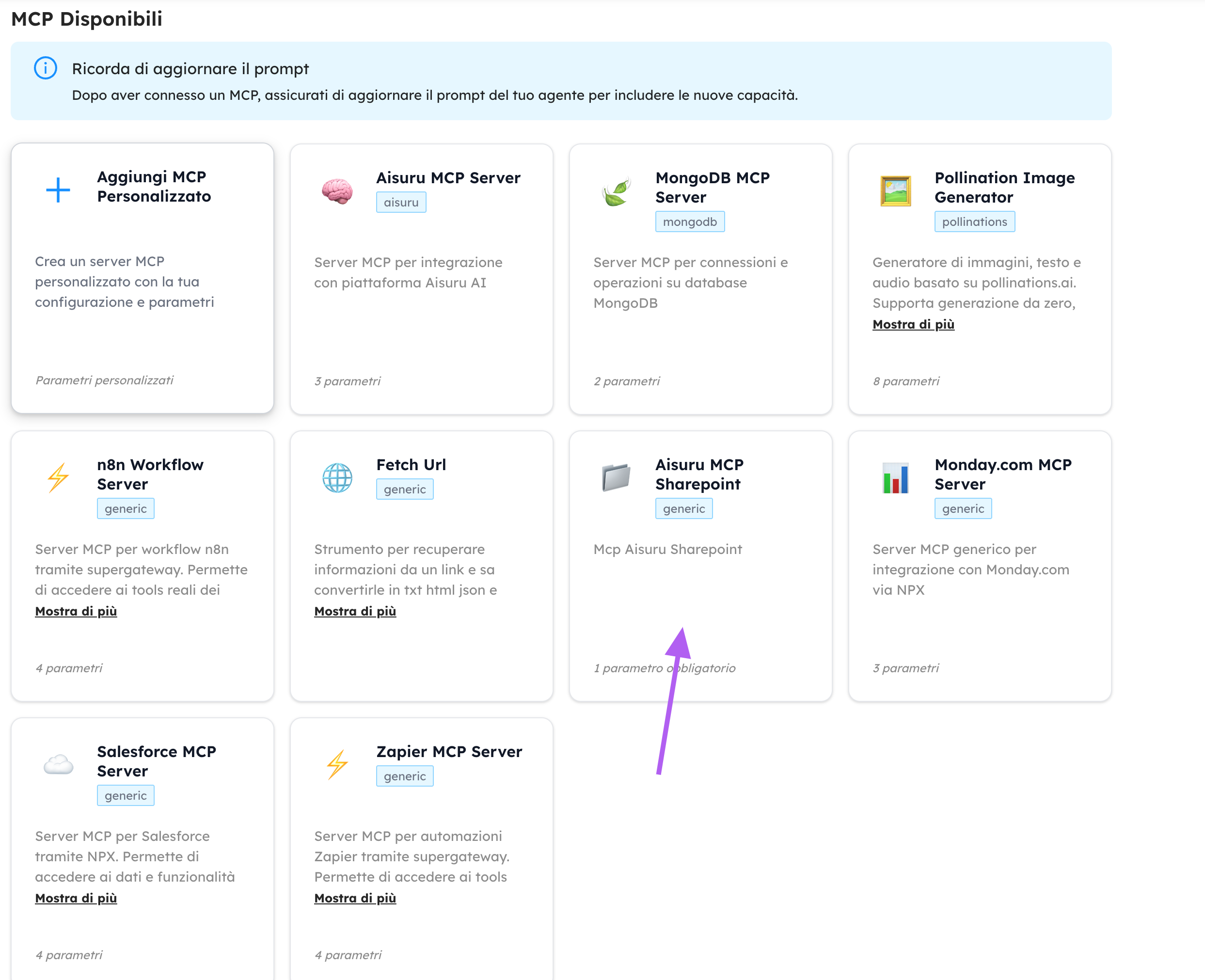

This MCP server is easily integrated into aisuru, our AI agent platform where you can create, test, and deploy intelligent agents with access to powerful tools like this mcp-sharepoint server.

Visit Aisuru.com to start building with your agents today!

---

⚠️ Known limitations

• Partial document updates are not supported
• Large files (>4MB) require upload sessions (not yet implemented)
• Text extraction from complex PDFs/Excel files may lose structure

---

🔒 Security

• Never expose client secret publicly
• Rotate secrets regularly
• Grant the minimum required Graph permissions
