Screen Control

🖥️ Screen Control

A local remote-control system for AI agents: watch your computer's screen live and send mouse/keyboard commands to it. Everything runs on your own machine — no data ever leaves it, no cloud middleman.

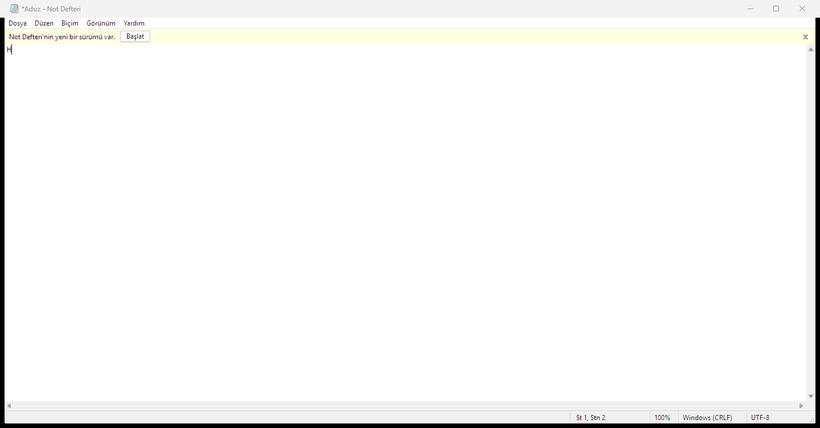

_{Every keystroke and every screenshot in this GIF went through the API — the agent never touched a physical keyboard.}

---

Why Screen Control?

AI agents today can write code and call APIs — but they can't see or touch your desktop. Screen Control gives any agent general-purpose computer use over a clean, safety-gated HTTP/MCP interface:

• Perceive — OCR for text, single frames or a live MJPEG stream for vision-capable models, and a text-only diff endpoint for models that can't consume images at all.
• Act — absolute and relative mouse, Unicode-safe keyboard, window management, background (focus-free) control, virtual desktops.
• Stay safe — token auth, blocked deadly shortcuts, focus guard, a stuck-input watchdog and an emergency failsafe are all enforced server-side, no matter how confused the agent gets.

One process, zero configuration, works with any language that can speak HTTP — or natively through MCP in Claude Desktop, Cursor, VS Code and cloud agents.

Performance Is Agent-Bound

Screen Control is the perception and actuation layer — the eyes and hands. The effective speed and capability of any agent using it are bounded by that agent itself and by the environment it runs in:

• Thinking speed — one action per agent "turn": the perceive → plan → act → verify loop lives in the agent, so model inference latency and reasoning depth directly set the pace. The API itself adds only milliseconds per call.
• Context capacity — screen readings (OCR text, frames, diffs) consume the agent's context window; a larger window means more situational awareness before verification degrades.
• Runtime environment — network latency, MCP/HTTP round-trip overhead, tool-call limits and hosting constraints all stack on top of the loop.

In practice this means: the same repo makes a fast reasoning model fast and capable, and makes a slow model slow — the toolchain is not the bottleneck. Real-time or action-heavy tasks need an agent with fast inference and tight tool-loop latency; slower agents should prefer deliberate, verification-heavy tasks.

---

Table of Contents

• Why Screen Control?
• Features
• Architecture
• Installation
• Quick Start
• API Reference
  • Authentication
  • Screen Capture
  • Mouse Control
  • Keyboard Control
  • OCR (Screen Reading)
  • Vision Access (Image Models)
  • Window Management
  • Focus-Free (Background) Control
  • Virtual Desktops
  • Game Mode
  • Safety Endpoints
• 🤖 For AI Agents
• MCP Support (One-Click Cloud Agents)
• Security Model
• Game Mode Guide
• Vision Access Guide
• Troubleshooting
• Testing
• Contributing
• License

---

Features

Feature	Description
🖼️ Live screen feed	Continuously refreshing screenshot in the browser
🖱️ Mouse control	Click, right-click, double-click, scroll, drag & drop via live screenshot
⌨️ Keyboard control	Text typing (Unicode/Turkish included, layout-independent), keys and shortcuts (Ctrl+C, Alt+Tab…)
👁️ OCR	Converts on-screen text to machine-readable format
📷 Vision access	Raw-pixel paths for image-capable models: single frames, MJPEG stream, text-based motion detection
🪟 Window management	List, focus, safe close (WM_CLOSE), kill (task-manager style)
🖥️ Focus-free control	Read/write background windows via PostMessage without stealing focus
🎮 Game mode	Camera look via relative mouse movement, hold-to-move keys
🔐 Token auth	Every request requires X-Auth-Token (CSRF protection)
🦺 Stuck-input watchdog	Auto-releases held keys after 30 s of inactivity
🛟 Failsafe	Cursor to top-left corner aborts all commands (disabled in game mode)

---

Architecture

┌─────────────────────────────────────────────────────────┐
│                    Browser (Web UI)                      │
│  ┌──────────┐  ┌──────────┐  ┌────────────────────────┐ │
│  │  Live     │  │  Control  │  │  Windows / Game Mode   │ │
│  │  View     │  │  Panel    │  │  Panel                 │ │
│  └────┬─────┘  └────┬─────┘  └───────────┬────────────┘ │
│       │              │                     │              │
└───────┼──────────────┼─────────────────────┼──────────────┘
        │              │                     │
        ▼              ▼                     ▼
┌─────────────────────────────────────────────────────────┐
│                  HTTP API (Flask)                        │
│                  127.0.0.1:8745                           │
│                                                         │
│  /api/screenshot    /api/mouse     /api/key              │
│  /api/vision/*      /api/ocr       /api/window           │
│  /api/game          /api/held      /api/release_all      │
│  /api/windows       /api/desktops  /api/desktop          │
│                                                         │
│  ┌─────────────┐  ┌──────────────┐  ┌──────────────┐   │
│  │ Auth Layer  │  │  Watchdog    │  │  OCR Engine  │   │
│  │ (token)     │  │  (30s auto)  │  │  (RapidOCR)  │   │
│  └─────────────┘  └──────────────┘  └──────────────┘   │
└─────────────────────────────────────────────────────────┘
        │              │                     │
        ▼              ▼                     ▼
┌─────────────────────────────────────────────────────────┐
│                  control.py (Core)                        │
│                                                         │
│  Screen:  mss (fast capture), PIL (processing)          │
│  Mouse:   pyautogui (absolute), SendInput (relative)    │
│  Keyboard: pyautogui + SendInput+KEYEVENTF_UNICODE      │
│  Windows: Win32 API (EnumWindows, SetForegroundWindow)   │
│  Background: PrintWindow (capture), PostMessage (input)  │
│  Virtual Desktops: pyvda                                 │
│  Game Mode: ClipCursor + MOUSE_MOVE_RELATIVE             │
└─────────────────────────────────────────────────────────┘
┌──────────────────────────────────────────────┐
│              backends/ (pluggable)           │
│  WindowsBackend  │ LinuxBackend │ MacOSBackend│
│      (full)      │   (stub)     │   (stub)   │
└──────────────────────────────────────────────┘

Coordinates & Concurrency

Per-Monitor DPI awareness. control.py calls SetProcessDpiAwarenessContext(PER_MONITOR_AWARE_V2) at import time — before the pyautogui import, because pyautogui touches coordinate APIs during import and would otherwise lock the process to the interpreter manifest's default (system-aware). With PMv2 active, every coordinate in the system is a physical pixel end to end: mss capture, OCR bounding boxes, pyautogui/SendInput clicks, ClipCursor. On High-DPI displays (125%/150% scaling) nothing drifts between what OCR reports and where the mouse clicks.

Lock architecture. The server uses two independent locks instead of one global lock:

Lock	Protects	Endpoints
_input_lock	mouse, keyboard, game mode, window ops	/api/mouse, /api/key, /api/game, /api/window/post, ...
_read_lock	capture, OCR, vision, enumeration	/api/screenshot, /api/ocr, /api/vision/*, /api/windows, ...

A slow OCR (3–5 s on a busy screen) no longer freezes concurrent screenshot or vision reads — reads queue behind reads, inputs behind inputs.

Live-Loop Working Principle

This system is designed for a live perceive-act loop, not pre-written command chains:

1. READ — OCR or vision reads the screen before and after every action
2. ONE ACTION — each round sends a single command
3. VERIFY — acceptance is "it appeared on screen", not "I sent it"
4. ADAPT — if verification fails, the next step changes based on what is actually seen

This is enforced by the expect_hwnd guard: typing is refused (409) if the foreground window doesn't match the target.

---

Installation

cd screen-control
pip install -r requirements.txt

Requirements

Package	Purpose	Required?
mss	Fast screen capture	✅ Yes
pyautogui	Mouse/keyboard control	✅ Yes
pyvda	Virtual desktop management	✅ Yes
flask	HTTP server	✅ Yes
Pillow	Image processing	✅ Yes
rapidocr-onnxruntime	OCR (screen text reading)	⚠️ Optional

Note: The OCR package is large and may take a while to install. If it fails, everything else still works — only the OCR feature is unavailable.

System Requirements

• OS: Windows 10/11 (x64)
• Python: 3.10+
• Display: Any resolution; the system adapts automatically

---

Quick Start

# 1. Start the server
cd screen-control
python server.py

# 2. Open in browser
#    http://127.0.0.1:8745

# 3. Or control via API
TOKEN=$(cat .token)
curl -H "X-Auth-Token: $TOKEN" http://127.0.0.1:8745/api/screenshot -o screen.jpg

---

API Reference

Capabilities

Returns the active backend name and what it can do. Agents should call this first (see ROADMAP.md for the multi-platform plan).

GET /api/capabilities
→ {"ok": true, "backend": "windows",
   "capabilities": {"screen_capture": true, "game_mode": true, ...}}

Feature values: true (supported), false (absent), null (unknown — stub backend), "optional" (depends on an optional dependency).

Platform Support Matrix

Capability	Windows	Linux X11	Linux Wayland	macOS
Screen capture	Full	Full	Portal-dependent	Permission required
OCR	Full/optional	Full/optional	Full/optional	Full/optional
Mouse control	Full	Full	Restricted	Accessibility permission
Keyboard control	Full	Full	Restricted	Accessibility permission
Window enumeration	Full	WM-dependent	Limited	Accessibility/API-dependent
Background input	Strong	WM/app-dependent	Usually unavailable	Limited
Virtual desktops	Supported	DE/WM-dependent	DE/WM-dependent	Spaces-specific
Game mode	Supported	Experimental	Limited	Experimental

Linux and macOS backends are currently fail-closed stubs: every operation returns BACKEND_UNAVAILABLE (501) until implemented (ROADMAP Phases 5–7). Windows is the reference backend.

Authentication

Every request must include the X-Auth-Token header. The token is generated on each server start and written to .token.

TOKEN=$(cat .token)

Code	Meaning
401	Missing or invalid token
415	POST without Content-Type: application/json

Token bootstrap (for the bundled web UI):

GET /token
→ {"ok": true, "token": "abc123..."}

The /token endpoint is safe: Same-Origin Policy prevents foreign pages from reading it.

---

Screen Capture

GET /api/screenshot

Returns a JPEG screenshot.

Parameter	Type	Default	Description
monitor	int	1	Monitor index
region	string	—	x,y,w,h sub-region

curl -H "X-Auth-Token: $TOKEN" -o screen.jpg http://127.0.0.1:8745/api/screenshot
curl -H "X-Auth-Token: $TOKEN" "http://127.0.0.1:8745/api/screenshot?region=0,0,800,600"

GET /api/info

Returns screen dimensions and system state.

{"ok": true, "width": 1920, "height": 1080, "ocr_available": true,
 "failsafe": true, "game_mode": false}

---

Mouse Control

POST /api/mouse

action	Required params	Optional params	Description
move	x, y	duration (default 0.15)	Move cursor to absolute position
click	x, y	button (left/right), clicks (default 1)	Click at position
scroll	clicks	x, y	Scroll wheel (positive=up)
drag	x1, y1, x, y	duration, button	Drag between two points
down	button (default "left")	—	Press and hold mouse button
up	button (default "left")	—	Release held mouse button

# Click at center of screen
curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"click","x":960,"y":540,"button":"left"}'

# Right-click
curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"click","button":"right","x":960,"y":540}'

# Scroll down
curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"scroll","clicks":-3}'

---

Keyboard Control

POST /api/key

action	Required params	Description
press	key	Press and release a key
down	key	Hold a key down (tracked for watchdog)
up	key	Release a held key
hotkey	keys (array)	Key combination (e.g. ["ctrl","c"])
type	text	Type text (Unicode, layout-independent)

Optional param	Default	Description
expect_hwnd	—	Window handle to verify focus (409 if mismatch)
interval	0.03	Delay between characters for type

# Press Enter
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"press","key":"enter"}'

# Ctrl+C
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"hotkey","keys":["ctrl","c"]}'

# Type text (Turkish characters supported)
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"type","text":"Merhaba dünya"}'

# Hold W key down (for walking in games)
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"down","key":"w"}'

---

OCR (Screen Reading)

POST /api/ocr

Converts on-screen text to machine-readable format.

Param	Type	Default	Description
region	array	—	[x, y, w, h] sub-region (faster)

{
  "ok": true,
  "text": "Hello World\nFile Edit View",
  "lines": ["Hello World", "File Edit View"],
  "items": [
    {"text": "Hello World", "x": 960, "y": 40},
    {"text": "File Edit View", "x": 100, "y": 15}
  ]
}

# Full screen OCR
curl -X POST http://127.0.0.1:8745/api/ocr -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{}'

# Region-only (faster, ~10x for small regions)
curl -X POST http://127.0.0.1:8745/api/ocr -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"region":[0,0,800,100]}'

---

Vision Access (Image Models)

Three endpoints for models that can consume images:

Endpoint	Description
GET /api/vision/frame	Single JPEG frame (raw or base64)
GET /api/stream	MJPEG live stream
POST /api/vision/diff	Text-based motion detection (no vision needed)

GET /api/vision/frame

Param	Default	Description
scale	1.0	Downscale factor (0.5 = half size)
gray	0	1 for greyscale
quality	80	JPEG quality (20-95)
format	—	base64 for JSON response
region	—	x,y,w,h sub-region

# Half-size greyscale frame as base64 (for text-only models)
curl "http://127.0.0.1:8745/api/vision/frame?scale=0.5&gray=1&format=base64" \
  -H "X-Auth-Token: $TOKEN"

GET /api/stream

MJPEG live stream. Drop into <img src> or consume frame-by-frame.

Param	Default	Description
fps	10	Frames per second (1-30)
quality	70	JPEG quality
scale	1.0	Downscale factor
region	—	x,y,w,h sub-region

POST /api/vision/diff

Text-based motion detection — no vision model required.

Body	Description
{}	Compare against last stored frame
{"grab":"gray"}	Store current frame for next comparison
{"b64_prev":"..."}	Compare against provided previous frame

{
  "ok": true,
  "changed": true,
  "changed_pct": 12.5,
  "bbox": [100, 200, 400, 350],
  "tiles": [
    {"row": 2, "col": 4, "pct": 35.2, "center": [1000, 390]}
  ]
}

---

Window Management

GET /api/windows

List all visible windows.

{
  "ok": true,
  "windows": [
    {
      "hwnd": 123456,
      "title": "My Application",
      "process": "app.exe",
      "pid": 7890,
      "focused": true,
      "rect": [0, 0, 1920, 1080],
      "desktop": 1
    }
  ]
}

POST /api/window

action	Required	Optional	Description
focus	hwnd	—	Bring window to foreground
close	hwnd	expect_title, expect_process	Safe close via WM_CLOSE
kill	hwnd, pid	—	Force kill (task-manager style)
topmost	hwnd	—	Set always-on-top
untopmost	hwnd	—	Remove always-on-top
maximize	hwnd	—	Maximise window

# Focus a window
curl -X POST http://127.0.0.1:8745/api/window -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"hwnd":12345,"action":"focus"}'

# Safe close (with title verification)
curl -X POST http://127.0.0.1:8745/api/window -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"close","hwnd":12345,"expect_title":"Notepad"}'

# Kill process
curl -X POST http://127.0.0.1:8745/api/window -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"kill","hwnd":12345,"pid":7890}'

---

Focus-Free (Background) Control

Read and control windows without stealing focus — the user keeps working on their main desktop.

GET /api/window/capture

Capture a window via PrintWindow (works even on another virtual desktop).

Param	Description
hwnd (required)	Window handle
client	1 = client area only
ocr	1 = return OCR text instead of image

# Capture window as PNG
curl "http://127.0.0.1:8745/api/window/capture?hwnd=12345" \
  -H "X-Auth-Token: $TOKEN" -o window.png

# Capture + OCR in one call
curl "http://127.0.0.1:8745/api/window/capture?hwnd=12345&ocr=1" \
  -H "X-Auth-Token: $TOKEN"

POST /api/window/post

Send input to a window, choosing the delivery path automatically.

action	Description
type	Type text (Unicode-safe)
key	Send a key press
hotkey	Send a key combination
click	Click at client coordinates
scroll	Scroll the window
drag	Drag inside the window

Optional mode parameter controls routing:

mode	Behavior
auto (default)	Decided by input-mode probe (see below)
background	Force PostMessage path (window keeps focus/z-order)
focused	Force focus + SendInput path

# Type into a background Notepad
curl -X POST http://127.0.0.1:8745/api/window/post -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"hwnd":12345,"action":"type","text":"Hello from background!"}'

Routing rules (mode=auto):

• postmessage — classic Win32 app: background PostMessage, no focus change.
• uia — WinUI/UWP/XAML surface (single DirectX canvas, no Win32 child controls): posted messages are silently swallowed, so the window is focused and the action is replayed through SendInput (client coords converted to screen). This is the documented fallback for modern apps.
• focused — window is already foreground: focused SendInput path.
• invalid — HTTP 409; not a reachable top-level window.

GET /api/window/input-mode

Classify how a window receives input before posting to it. Returns one of focused | postmessage | uia | invalid.

curl "http://127.0.0.1:8745/api/window/input-mode?hwnd=12345" \
  -H "X-Auth-Token: $TOKEN"

WinUI note: New Notepad (and other XAML-hosted apps) has no classic child Edit control to post to — the whole UI is one DirectX surface. input-mode reports uia for these; /api/window/post then automatically uses the focused SendInput path. /api/window/children remains useful for classic apps with real child controls.

GET /api/window/children

List child controls of a window (class name + title + hwnd).

curl "http://127.0.0.1:8745/api/window/children?hwnd=12345" -H "X-Auth-Token: $TOKEN"

---

Virtual Desktops

GET /api/desktops

List all virtual desktops.

POST /api/desktop

action	Params	Description
switch	number	Switch to desktop N
create	—	Create a new desktop

curl http://127.0.0.1:8745/api/desktops -H "X-Auth-Token: $TOKEN"

curl -X POST http://127.0.0.1:8745/api/desktop -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"switch","number":2}'

---

Game Mode

action	Params	Description
start	sensitivity (default 12)	Lock cursor to center, enable game input
move	dx, dy, sensitivity	Rotate camera (relative mouse)
stop	—	Release cursor + all held input
heartbeat	—	Keep-alive for long holds

# Start game mode
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"start","sensitivity":12}'

# Look right
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"move","dx":50,"dy":0}'

# Hold W to walk forward
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"down","key":"w"}'

# ... later ...
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"up","key":"w"}'

# Stop game mode
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"stop"}'

---

Safety Endpoints

GET /api/held

Returns currently held keys/buttons and watchdog status.

{
  "ok": true,
  "keys": ["w", "shift"],
  "buttons": ["left"],
  "game_mode": true,
  "idle_seconds": 5.2,
  "watchdog_count": 0,
  "last_watchdog": null
}

POST /api/release_all

Emergency: release everything (held keys, mouse buttons, game-mode cursor lock).

curl -X POST http://127.0.0.1:8745/api/release_all -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{}'

---

---

🤖 For AI Agents

A dedicated, comprehensive guide for AI agents (LLMs, vision models, automation frameworks) is available in AGENT_GUIDE.md.

It covers:

• Perceive-act loop (read → plan → act → verify)
• Focus guard (expect_hwnd) to prevent wrong-window accidents
• App automation and game control workflows
• Vision access for image-capable models
• Text-based motion detection
• Bandwidth optimization
• Complete curl examples

---

MCP Support (One-Click Cloud Agents)

Model Context Protocol (MCP) turns this project into a plug-and-play toolbox for any MCP-capable agent: Claude Desktop, Claude Code, Cursor, VS Code Copilot Agent mode, custom cloud agents — no custom glue code, no curl scripts. The agent discovers and calls the tools natively.

How it works

MCP agent (cloud or desktop)
        │  MCP protocol (stdio or streamable-HTTP)
        ▼
  mcp_server.py   ← thin wrapper: tools → HTTP calls, token auto-read
        │  REST + X-Auth-Token (localhost only)
        ▼
  server.py       ← the single source of truth:
                    auth, locks, watchdog, focus guard, all safety rules

mcp_server.py adds no new powers — every safety mechanism (auth token, input/read locks, watchdog, Alt+F4 block, focus guard, failsafe) stays enforced by server.py.

Setup

pip install mcp            # optional dependency (see requirements.txt)
python server.py           # start the REST server first (it writes .token)

The MCP server auto-reads the token from .token (or the SCREEN_CONTROL_TOKEN env var) — zero configuration.

Desktop agents (stdio transport)

Claude Desktop — claude_desktop_config.json:

{
  "mcpServers": {
    "screen-control": {
      "command": "python",
      "args": ["C:/path/to/screen-control/mcp_server.py"]
    }
  }
}

Claude Code: claude mcp add screen-control -- python C:/path/to/screen-control/mcp_server.py

Cursor / VS Code: add the same entry to their MCP config files.

Remote / cloud agents (streamable-HTTP transport)

python mcp_server.py --http --port 8751
# MCP endpoint: http://127.0.0.1:8751/mcp

The HTTP transport is token-protected: every request must carry the X-Auth-Token header (same token as the REST server). Query-string tokens (?token=...) are rejected by design — URLs leak into proxy/tunnel logs, browser history and shared links, and this token grants full desktop control. Clients that cannot send custom headers should run a local stdio mcp_server.py instead. Only GET /health is open, for liveness probes. DNS-rebinding protection is disabled on this transport deliberately — tunneled requests arrive with a foreign Host header, and the rebinding threat is already covered by the token guard.

For a cloud agent, expose it through a tunnel:

cloudflared tunnel --url http://127.0.0.1:8751
# → prints a https://<random>.trycloudflare.com URL

Then configure the agent's MCP connection with <tunnel-url>/mcp plus the token from .token as a header (X-Auth-Token).

Headerless connectors (scoped keys)

For clients that cannot send custom headers (e.g. web connectors that only take an endpoint URL), create a scoped API key — a persistent, optionally time-limited credential — and embed it in the URL path:

# Create a 24-hour scoped key (requires the server to be running)
curl -X POST http://127.0.0.1:8745/api/keys -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"create","name":"spark","expires_in_hours":24}'

# Connector endpoint becomes:
#   https://<tunnel-url>/mcp/<scoped-key>

Design guarantees (SC-06):

• The master session token is refused in URLs (403) — only scoped keys may travel there
• Scoped keys expire automatically; expired keys authenticate nothing
• Scoped keys are revocable by name at any moment via POST /api/keys ({"action":"revoke","name":"spark"}) — revocation takes effect immediately on every endpoint
• The .apikeys file stores only SHA-256 hashes, never raw keys

⚠️ A tunnel exposes PC control to the internet. Keep the token secret, prefer short-lived tunnels and scoped keys for headerless connectors, and stop the server when not in use.

One-Command Startup (launcher + auto-tunnel)

start-server.bat automates the whole cloud setup and prints everything your cloud agent needs, ready to paste:

1. Downloads cloudflared.exe if missing (portable, no admin required)
2. Stops leftover instances from a previous run
3. Starts the REST server (port 8745) and the MCP HTTP server (port 8751)
4. Waits until both are healthy (/token and /health probes)
5. Starts a cloudflared quick tunnel, extracts its public URL from tunnel.log, and prints the summary:

 ============================================================
  ALL SYSTEMS RUNNING
 ============================================================
  Local REST API  : http://127.0.0.1:8745
  Local MCP       : http://127.0.0.1:8751/mcp
  Public MCP URL  : https://<random>.trycloudflare.com/mcp

  ------------------------------------------------------------
  PASTE INTO YOUR CLOUD AGENT  (MCP connector settings)
  ------------------------------------------------------------
  Endpoint : https://<random>.trycloudflare.com/mcp
  Header   : X-Auth-Token: <token>
  URL form : https://<random>.trycloudflare.com/mcp?token=<token>
             (only if the connector cannot send headers)
  ------------------------------------------------------------

stop-server.bat stops all three (REST, MCP, tunnel) in one go.

Available tools (16)

Category	Tools
Perception	get_info, ocr_screen, screenshot (real image block for vision models), motion_diff
Mouse / keyboard	mouse, keyboard (with expect_hwnd), get_held, release_all
Windows	list_windows, focus_window, window_children, window_input_mode, window_post, window_capture_ocr, close_window
Game mode	game (start / move / stop / heartbeat)

Which transport for whom

Consumer	Transport	Command
Claude Desktop / Cursor / VS Code (local)	stdio	python mcp_server.py
Claude Code	stdio	claude mcp add ... (above)
Cloud / remote agents	streamable-HTTP	start-server.bat (recommended) or python mcp_server.py --http --port 8751 + cloudflared tunnel --url http://127.0.0.1:8751

Note: This project targets MCP Python SDK 2.x (MCPServer API). With SDK 1.x, replace the import with from mcp.server.fastmcp import FastMCP, Image and MCPServer with FastMCP.

---

Security Model

Threat: Malicious Web Pages (CSRF)

Even bound to 127.0.0.1, a malicious page in the browser can trigger non-preflighted requests (text/plain fetch, HTML form POST) to localhost. The browser blocks the response but not the request — the server would still execute the command.

Mitigation: Every request requires X-Auth-Token. A foreign page cannot read this token (Same-Origin Policy), so it cannot authenticate.

Additional layers:

• POST requests must use Content-Type: application/json (415 otherwise)
• This blocks form-encoded and text-plain POSTs even if the token leaked
• Host header trust (DNS rebinding): when bound to loopback, requests carrying a non-loopback Host header are refused with 421 — a rebinding page that resolves its domain to 127.0.0.1 cannot read /token or call the API
• /token and / responses carry Cache-Control: no-store so the credential is never persisted by browsers or proxies

Threat: Stuck Keys / Game Mode Lock

In game mode, ClipCursor pins the cursor to a 2×2 box — the classic pyautogui failsafe (cursor to top-left) does not work.

Mitigations:

1. Physical Esc / Alt+Tab — real hardware input; this API cannot block it, and it always works
2. POST /api/release_all — instant release of everything
3. Watchdog (automatic) — 30 s of server-side inactivity with held input triggers automatic release

Threat: Wrong Window Typing

Mitigations:

• expect_hwnd guard on /api/key — if the foreground window doesn't match, typing is refused with 409
• The focused path of /api/window/post verifies the focus after the focus switch and before any synthetic input (409 on mismatch) — input is never replayed into whatever window happens to be foreground
• focus_window() raises on failure instead of silently returning

Threat: Dangerous Key Combos

Mitigation: Blocked at the API level (403) on every delivery path — the direct /api/key route, the background /api/window/post route (PostMessage), and the focused fallback route share one safety policy (control._assert_allowed):

• Alt+F4 — the only banned Alt combo (Alt+Tab, Alt+menu are legitimate)
• Win key — prevents Start menu, task switching
• Ctrl+Alt+Del — system security screen
• Shift+Delete style — prevents permanent deletion

Threat: Killing System Processes

Mitigations:

• The process name is resolved from the PID directly (Win32 toolhelp snapshot), not from the visible-window inventory — windowless/background system processes get the same protection as visible ones
• Critical system processes are blacklisted (default-deny for unknown PIDs): winlogon.exe, csrss.exe, smss.exe, services.exe, lsass.exe, svchost.exe, system, registry, dwm.exe
• Optional expect_process confirmation: a mismatch aborts the kill with 409 — protects against killing a newly-reused PID

Threat: Resource Exhaustion (rogue agent / DoS)

A token-holding but misbehaving client should not be able to exhaust memory or starve the input lock.

Mitigations:

• MAX_CONTENT_LENGTH = 1 MB — oversized request bodies are rejected (413)
• region width/height/area and scale are bounded (400 otherwise)
• text payloads are capped at 10,000 characters per input call
• MJPEG streams are capped at 10 concurrent clients (429 beyond that)
• Pillow decompression-bomb limit is set for client-supplied images

Network Access

The server binds to 127.0.0.1 by default. To expose it to the network:

python server.py --host 0.0.0.0  # ⚠️ anyone on the network can control this machine

---

Game Mode Guide

Setup

# 1. Focus the game window
curl -X POST http://127.0.0.1:8745/api/window -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"hwnd":GAME_HWND,"action":"focus"}'

# 2. Start game mode
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"start","sensitivity":12}'

Camera Look

# Look right
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"move","dx":50,"dy":0}'

# Look down
curl -X POST http://127.0.0.1:8745/api/game -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"move","dx":0,"dy":30}'

Movement

# Walk forward (hold W)
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"down","key":"w"}'

# ... walk for a while ...

# Release W
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"up","key":"w"}'

Minecraft-Specific

# Place block (right-click)
curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"action":"click","button":"right","x":960,"y":540}'

# Break block (hold left-click)
curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"down","button":"left"}'

# ... after breaking ...

curl -X POST http://127.0.0.1:8745/api/mouse -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"up","button":"left"}'

# Select hotbar slot
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"press","key":"1"}'

# Open inventory
curl -X POST http://127.0.0.1:8745/api/key -H "X-Auth-Token: $TOKEN" \
  -H "Content-Type: application/json" -d '{"action":"press","key":"e"}'

Suitability

Game Type	Suitable?	Notes
Minecraft (building)	✅ Yes	Place blocks, walk, mine
Minecraft (PvP)	❌ No	Too slow for fast combat
Turn-based games	✅ Yes	Ample time for read→act→verify
RPG / adventure	✅ Yes	Inventory, dialogue, exploration
Fast FPS	❌ No	Reaction time insufficient
Puzzle games	✅ Yes	Click-based, read-heavy

---

Vision Access Guide

For Image-Capable Models

If the consuming model can process images, use the vision endpoints directly:

GET /api/vision/frame?scale=0.5&gray=1&quality=70

This returns a single JPEG that the model can analyze for:

• Game HUD elements (health, mana, inventory)
• On-screen text (menus, chat, tooltips)
• Visual scene understanding (blocks, entities, terrain)

For Text-Only Models

Use the diff endpoint for motion detection without vision:

POST /api/vision/diff {"grab":"gray"}   → first call: stores frame
POST /api/vision/diff                    → subsequent calls: returns diff

The response tells you where things changed (tile coordinates) and how much (percentage), which is sufficient for:

• Detecting that an action had an effect
• Locating moving elements on screen
• Tracking animation state changes

Bandwidth Optimization

Approach	Payload	Use Case
scale=1.0, gray=0	~500 KB	Full detail
scale=0.5, gray=1	~50 KB	Good for most vision models
scale=0.25, gray=1	~10 KB	Maximum compression
diff (text)	~1 KB	Text-only agents
region=...	Variable	Focus on specific area

---

Troubleshooting

"OCR engine not installed"

pip install rapidocr-onnxruntime

Server won't start (port in use)

# Find the process using port 8745
netstat -ano | findstr ":8745"

# Kill it
taskkill /PID <pid> /F

"Focus mismatch" (409) when typing

The foreground window changed between the focus call and the type call. Solution: always pass expect_hwnd and verify focus before typing.

Window not found

The window may have been closed or may be a system window that EnumWindows doesn't expose. Try:

curl http://127.0.0.1:8745/api/windows -H "X-Auth-Token: $TOKEN"

Game mode cursor stuck

Use POST /api/release_all or press Esc / Alt+Tab physically.

High OCR latency

OCR on a full 1920×1080 screen can take from a few seconds up to ~30 s depending on your CPU and on-screen complexity. Use a region — small crops are typically 10× faster:

{"region": [0, 0, 800, 100]}

Turkish characters not appearing

The system uses SendInput + KEYEVENTF_UNICODE which is layout-independent. If characters still don't appear, the target app may not support Unicode input — try POST /api/window/post with action: "type" instead.

---

Project Structure

screen-control/
├── server.py            # Flask HTTP server + all API endpoints
├── core/                # PlatformBackend interface + standardized errors
│   ├── backends.py      # Abstract backend + lazy discovery
│   └── errors.py        # ApiError envelope + error codes
├── backends/            # OS implementations behind PlatformBackend
│   ├── windows.py       # Reference backend (moved from control.py)
│   ├── linux.py         # Fail-closed stub (ROADMAP Phase 5)
│   ├── macos.py         # Fail-closed stub (ROADMAP Phase 7)
│   ├── fake.py          # In-memory backend for tests
│   └── forbidden.py     # Shared blocked-key policy
├── control.py           # Compatibility shim re-exporting backends.windows
├── tests/unit/          # Offline unit + integration tests (no real input)
├── mcp_server.py        # MCP server (stdio + streamable-HTTP) — thin wrapper over the API
├── sdk/
│   └── screen_control.py  # Python SDK client (pip-installable style)
├── index.html           # Bundled web UI (live view + control panels)
├── docs/images/         # README assets (demo GIF captured by the API itself)
├── requirements.txt     # Python dependencies
├── start-server.bat     # One command: REST + MCP + cloud tunnel (Windows)
├── stop-server.bat      # Stop all three processes
├── test-security.py     # Security + game-mode test suite (34 checks)
├── test-game.py         # Live game-mechanics test (app launch → draw → safe close)
├── test-endtoend.py     # End-to-end test: open Notepad → type → save → verify
├── .github/workflows/   # CI: runs the security suite on every push
├── AGENT_GUIDE.md       # AI agent integration guide (separate from this file)
├── README.md            # This file
└── .token               # Auto-generated auth token (gitignored)

---

Testing

Prerequisites

The server must be running:

cd screen-control
python server.py

Security test suite

Tests authentication, blocked key combos, window management, safe close, critical process protection, and game mode — all non-destructive.

cd screen-control
python test-security.py

Expected output:

== Token Authentication ==
✓ Missing token -> 401
✓ Wrong token -> 401
✓ Correct token -> 200
✓ Non-JSON POST -> 415

== Blocked Key Combos ==
✓ Alt+F4 blocked (403)
✓ Win key blocked (403)
✓ Win+D blocked (403)
✓ Delete blocked (403)

== Window List ==
✓ Windows list requires GET
✓ Window list is non-empty  — 8 windows
✓ Exactly one focused window

== Safe Close Verification ==
✓ Wrong title aborts close

== Critical Process Protection ==
✓ System process (pid 4) rejected (403)
✓ pid 0 rejected (403)

== Game Mode ==
✓ Game mode started
✓ Relative camera look
✓ Game mode stopped

== Watchdog (dry run) ==
✓ Held state returns ok
✓ Watchdog count reported

========================================
RESULT: 19 passed, 0 failed

Live game-mechanics test

Launches a real application (mspaint or notepad), performs hold-to-draw game mechanics, verifies via pixel analysis, then safely closes with "Don't Save" dialog handling.

cd screen-control
python test-game.py

Note: This test launches a real application. It handles cleanup automatically (sends WM_CLOSE and clicks "Don't Save" if a dialog appears).

---

Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Test on a Windows machine
5. Submit a pull request

Code Style

• Python: PEP 8, type hints, docstrings on all public functions
• Docstrings: English, Google style
• Error messages: English, descriptive
• Comments: English, explain why not what

---

License

MIT License. See LICENSE for details.

---

Built with ❤️ for local automation and AI agent research.
