Block MCP

Block MCP is the WordPress MCP built for the way agents actually edit — one block at a time, across multiple turns, without corrupting the page. It's an MCP server plus WordPress plugin that exposes Gutenberg content as a structured, addressable block tree instead of raw HTML, so an agent can change a single heading without rewriting the page. Every block carries a stable gk_ref UUID that survives sibling shifts (no other WordPress MCP has this), so multi-turn edit chains don't re-fetch the page between calls. Every write creates a WordPress revision for rollback, ETag/If-Match guards against concurrent overwrites, and a server-side tier policy stops legacy blocks from ever hitting disk. Backed by 326 PHP tests, 249 TypeScript tests, CI on PHP 8.2/8.3 + Node 20, and translations to 20 languages.

Why agents pick Block MCP

• Edits one block, not the whole page. Change a heading's level without touching the surrounding HTML. Standard MCPs force a full page rewrite on every edit; Block MCP touches just the one heading.
• Editor-safe round-trips. <!-- wp:* --> block markers are preserved exactly. No "this block contains unexpected or invalid content" warnings on reopen.
• Stable block refs no other WordPress MCP has. Quickly chain inserts, deletes, and updates across turns from a single read.
• Atomic batch edits. Fix N independent blocks in one revision with update_blocks — all-or-nothing validation, so a stale ref or out-of-range index aborts the whole batch before anything hits disk. Keeps revision history clean instead of 6 entries for one logical change.
• Tier policy enforced server-side. Decide what blocks you want to allow or reject before they are saved, with suggested replacements.
• Optimistic concurrency built in. Two agents working on the same post can't silently overwrite each other.
• Yoast SEO support built in. Read and write Yoast meta (titles, descriptions, focus keywords, canonical URLs, schema types, primary terms, Open Graph / Twitter cards) the moment Yoast SEO is active on the site.

Table of Contents

• At a glance
  • The numbers
  • When you actually ask an AI to edit a page
• Why this MCP
• Compared to other WordPress MCPs
• Features
• How It Works
• Quick Start
  • 1. Install the WordPress plugin
  • 2. Create an Application Password
  • 3. Install and configure the MCP server
  • 4. (Optional) Tune the settings
• MCP Tools
• Stable Refs
• Configuration
  • Namespace tier scores
  • Replacement map
  • Blocks that store data in two places
  • Post types AI agents can create
  • Storage-mode scan + reset
• Examples
• Testing
• Requirements
• Limitations
• Error Codes
• Translations
• License
• Contributing

At a glance

Here's where Block MCP wins. Most other WordPress MCPs are wrappers around the standard WordPress REST API — fine for writing, but wrong for editing. "Change a heading, then add a button, then fix the next paragraph" could result in your post needing major rehab to get back to correct syntax. Block MCP is the answer to an WordPress block editor MCP that just works.

What the agent can do	Standard WP REST API	Block MCP
Edit one heading without touching the rest of the page	❌ Rewrites the entire page on every edit	✅ Updates just the one heading
Make 5 edits in a row without re-sending the whole page each time	❌ Sends the full page body 5×	✅ Sends only what changed
Find which block contains "Pricing" without scanning rendered HTML	❌ No structured search — agent has to regex through HTML	✅ Built-in search by text or block type
Stop legacy/deprecated blocks from being saved in the first place	❌ Writes any HTML, valid or not	✅ Server rejects legacy blocks, suggests modern replacements
Edit a page and have it still open cleanly in the block editor afterward	❌ Edits as raw HTML — expect many blocks with "This block contains unexpected or invalid content" because the original block markers got stripped	✅ Block markup is preserved exactly.
Keep editing the right block after adding or removing other blocks above it	❌ Re-reads the whole page after each edit	✅ AI can keep working without re-reading
Fix N typos across one page in a single revision	❌ N round-trips, N revisions cluttering history	✅ One update_blocks call, one revision, atomic — partial failure rolls back the whole batch

When you actually ask an AI to edit a page

What matters is whether the page is correct after the agent finishes. So we put Claude in front of each MCP, typed a real instruction — "change the H2 heading 'Code samples' to H3" — then re-opened the page and inspected it.

27 runs total: three MCP servers × Haiku, Sonnet, Opus × 3 trials each.

Model	Block MCP	AI Engine Pro	InstaWP/mcp-wp
Haiku	✅ 3 / 3 · 10 s avg	⚠️ 2 / 3 · 44 s avg	❌ 0 / 3 · 20 s avg
Sonnet	✅ 3 / 3 · 9 s avg	✅ 3 / 3 · 14 s avg	❌ 0 / 3 · 36 s avg
Opus	✅ 3 / 3 · 9 s avg	✅ 3 / 3 · 13 s avg	⚠️ 2 / 3 · 38 s avg
Total	✅ 9 / 9	8 / 9	2 / 9

Three takeaways:

Block MCP works on the cheapest model — and finishes fastest. Haiku passes every trial in 10 seconds. The agent doesn't need to think hard about the page because the API is shaped exactly like the task. AI Engine Pro on Haiku takes 44 seconds when it works at all; InstaWP never does.

InstaWP's wp/v2 wrapper fails 7 out of 9 times — even Opus only gets it right 2/3. When the agent reports success, it's technically right that the heading text changed. But the whole-page round-trip through update_page strips every <!-- wp:* --> block marker. Reopen the page in the block editor and you'll see "This block contains unexpected or invalid content" warnings on most blocks. The standard REST API isn't broken — it does exactly what it's documented to do — but its data shape lets the AI corrupt content without realizing it.

AI Engine Pro is competitive with Sonnet and Opus but stumbles on Haiku. Its wp_alter_post tool is block-aware (the post markup stays valid), but on the failed Haiku trials the rendered HTML and the block's declared attributes drift out of sync — e.g., the comment marker still says level: 2 while the inner tag is <h3>. The block editor flags that as broken too. Sonnet and Opus retry until consistent (2–3 tool calls); Haiku sometimes gives up after declaring success.

Reproduce with scripts/mcp-agent-bench.mjs.

Now try the structural ops agents actually need

A single heading-level change is the easy case. The interesting work is when an agent has to move a block, drop a paragraph inside an existing container, modify a table, or delete a block — the kind of multi-step structural editing real content workflows demand.

Five harder scenarios. Same matrix: three MCPs × Claude Haiku.

Scenario	Block MCP	AI Engine Pro	InstaWP/mcp-wp
Move a block to a new sibling position	✅ 15 s · 2 calls	✅ 25 s · 3 calls	❌ structural fail · 29 s
Insert a paragraph inside a core/group	✅ 15 s · 2 calls	✅ 20 s · 4 calls	❌ structural fail · 32 s
Add a row to a comparison table	✅ 13 s · 2 calls	✅ 25 s · 4 calls	❌ structural fail · 32 s
Delete a column from a table	✅ 12 s · 2 calls	✅ 24 s · 4 calls	❌ structural fail · 26 s
Delete a heading block	✅ 12 s · 3 calls	✅ 16 s · 3 calls	❌ structural fail · 24 s
Total	✅ 5 / 5	✅ 5 / 5	❌ 0 / 5

Block MCP averages 13 seconds and two tool calls per scenario. The agent reads the page once, finds the target block by ref or path, calls one mutation, done.

AI Engine Pro keeps the page intact and finishes correctly, about 2× slower. Its wp_alter_post tool asks the agent to supply both the block-comment markup and the rendered HTML, so most scenarios spend an extra round-trip generating the right shape.

InstaWP/mcp-wp fails every scenario with a "structural fail": the agent (Haiku, given update_page) writes the page back as plain HTML — <h1>...</h1><p>...</p><ol>... — with no <!-- wp:* --> block markers. WordPress accepts the save, parse_blocks() collapses the entire page into one freeform chunk, and every distinctive block on the page disappears as a structured entity. The agent thinks it succeeded; the page is broken in the block editor on reopen. That's the penalty of wrapping the standard wp/v2 REST surface and trusting the agent to reconstruct block markup by hand.

Reproduce with scripts/mcp-agent-bench.mjs.

Why Block MCP

Block MCP is the only WordPress MCP designed from the ground up for the way agents actually edit pages: one block at a time, across multiple turns, without corrupting anything along the way. The agent-loop bench reflects that — 9 of 9 across every Claude tier, including the cheapest.

Most WordPress MCPs wrap the default REST API. That gives an agent post-level CRUD, but it stops there — to change one heading on a page, the agent has to read the entire post_content HTML, parse it, find the right tag, mutate it, and write the whole thing back. Block boundaries dissolve, structure breaks subtly, and there's no undo path.

Block MCP is built around the block tree itself. The agent sees a structured, addressable, well-typed view of the page — and writes through purpose-built endpoints that know what blocks are.

What that gets you in practice:

• Block-aware editing. Change a heading's level, swap a button's URL, reorder columns — without touching surrounding HTML. The agent works in JSON; the plugin handles parse/serialize.
• Stable block refs. Every block carries a persistent ID. An agent can fetch a page once, capture the refs of every block it intends to edit, then chain inserts/deletes/updates against those refs without re-reading. Sibling shifts don't invalidate the addresses.
• Path-based structural ops. Nine operations (update-attrs, replace-block, wrap-in-group, unwrap-group, move, duplicate, insert-child, remove-block, update-html) work on any nesting depth via integer paths or refs.
• Auto-transforms. Change a heading's level attribute and the <h2>/<h3> tag updates with it. Toggle a list to ordered and <ul> becomes <ol>. The plugin keeps attributes and innerHTML in sync for the common patterns so agents don't have to.
• Site policy enforcement. Per-site preference tiers reject inserts of blocks you've marked as legacy and surface suggested replacements. An agent can't write blocks your site doesn't want.
• Revision-backed undo. Every write returns before_revision_id and revision_id. revert_to_revision rolls back to either side of any edit.
• Discovery tools. Browse registered block types with preference scoring, search patterns, query site-wide block/pattern usage, resolve URLs to post IDs. The agent can plan with knowledge of what your site actually contains.
• Static-block safety guards. Warns when an attribute change would leave rendered markup stale, so the agent knows when to also pass innerHTML.

The combination — block-aware, ref-stable, revision-tracked, policy-enforcing — is what existing REST-API-wrapping MCPs don't give you.

Compared to other WordPress MCPs

The WordPress MCP space is small, and Block MCP is the only one operating at the block-tree layer. The other projects work at different layers and target different workflows — they're often complementary rather than head-to-head, but the agent-loop bench above shows they don't all produce correct results when asked to edit a block.

InstaWP/mcp-wp — A REST-API-wrapping MCP that operates on whole posts, plus broad coverage of users, comments, media, plugins, and plugin-repo search. Standout feature: multi-site management from one MCP instance. Reach for it when you need post-level CRUD across many sites or general-purpose WordPress administration. Not block-aware: editing a single heading inside a long page means reading and rewriting the entire post, and the round-trip through wp/v2's update_page strips every <!-- wp:* --> block marker. In our bench it failed validation on 7 of 9 trials across Haiku/Sonnet/Opus.

AI Engine Pro — Self-hosted MCP server inside WordPress (Streamable HTTP at /wp-json/mcp/v1/http), built by Meow Apps and the most-installed WordPress AI plugin (100K+). Free tier exposes posts/comments/users/media as MCP tools; Pro adds an Editor Assistant sidebar and additional MCP plumbing. Its wp_alter_post tool is block-aware — block-comment markers survive — but it can desync the block's declared attributes from its innerHTML (e.g., comment marker still says level: 2 while the inner tag is <h3>), and the block editor flags that as broken too. Sonnet and Opus retry until consistent and pass; Haiku sometimes gives up at 7–12 tool calls. 8 of 9 in the bench.

Block MCP (this project) — Operates one layer below: inside a single post's block tree. Path- and ref-based addressing, auto-transforms that keep attributes and innerHTML in sync server-side, preference-tier enforcement, per-block revisions. None of those exist in the other three. Reach for it when an agent needs to edit blocks — change a heading level, swap a column layout, insert a CTA after the third paragraph — without rewriting the surrounding content. 9 of 9 in the bench, perfect across all three Claude models, including the cheapest.

These can coexist. Block MCP could (and likely will) be exposed through the official adapter as registered abilities once that path matures — same logic, blessed plumbing. See issues for the roadmap.

Features

Read

• Full block tree as structured JSON: paths, names, attributes, refs, text_preview of each block's content
• Page summary in one call: block type counts, headings with paths, section markers, max nesting depth
• Outline mode for fast page structure inspection
• Search blocks by text or block name
• Render mode expands shortcodes, resolves synced patterns, marks dynamic blocks

Write — by index, by ref, or by path

• update_block — flat-index OR ref
• update_blocks — atomic N-update batch in ONE revision; all-or-nothing validation, max 50 items, counts as one write against the rate limit
• delete_block — top-level counter OR ref
• insert_blocks — anchor on after_top_level/before_top_level OR after_ref/before_ref
• edit_block_tree — 9 path-based or ref-based structural ops:
  • update-attrs, update-html, replace-block, remove-block
  • wrap-in-group, unwrap-group, insert-child, duplicate, move
• rewrite_post_blocks — full page rewrite
• dry_run parameter to validate any mutation without writing

Safety

• Auto-transform keeps innerHTML in sync when attributes change (heading level, list ordered, group tagName, button URL, image src, spacer height, etc.)
• Static block guards warn when an attribute change may leave rendered markup stale
• Configurable preference tiers: legacy blocks rejected on insert, avoid-tier blocks return warnings with suggested replacements
• Per-post rate limiting (10 writes/min, 2 full rewrites/min)
• Every write creates a WordPress revision; revert_to_revision undoes any edit

Discover

• List block types filtered by namespace, category, or preference tier
• Browse patterns (synced + registered) scored by recency, reference count, and legacy content
• Site-wide block/pattern usage analytics (cached)
• Resolve any URL or slug to its post ID, type, and edit link

How It Works

AI Agent  ←stdio→  MCP server (your machine)  ←HTTPS→  WordPress plugin (your site)

WordPress plugin (wordpress-plugin/gk-block-api/) — REST API at gk-block-api/v1. Handles block parsing, serialization, safety checks, preference scoring, rate limiting, revisions. Works with any post type that stores Gutenberg blocks in post_content.

MCP server (src/) — TypeScript stdio server that exposes the REST API as MCP tools. Authenticates as a normal WordPress user via Application Password. No special privileges, no direct DB access from the MCP side.

Quick Start

1. Install the WordPress plugin

Easiest — download the latest ZIP: gk-block-api.zip (auto-built from main on every push).

Then in WordPress: Plugins → Add New → Upload Plugin and pick the ZIP.

Or copy wordpress-plugin/gk-block-api/ to your site's wp-content/plugins/ and activate manually. Or via WP-CLI:

wp plugin install https://github.com/GravityKit/block-mcp/releases/download/latest/gk-block-api.zip --activate

2. Create an Application Password

In WordPress admin: Users → Profile → Application Passwords. Or via CLI:

wp user application-password create <username> "Block MCP" --porcelain

The user needs at minimum the edit_posts capability for any post you want to read or write.

3. Install and configure the MCP server

git clone https://github.com/GravityKit/block-mcp
cd block-mcp
npm install   # auto-builds dist/index.cjs via the prepare script

Register the server in your MCP client. Example for Claude Code's ~/.claude.json:

{
  "mcpServers": {
    "block-mcp": {
      "command": "node",
      "args": ["/absolute/path/to/block-mcp/dist/index.cjs"],
      "env": {
        "WORDPRESS_URL": "https://example.com",
        "WORDPRESS_USER": "your-wp-username",
        "WORDPRESS_APP_PASSWORD": "xxxx xxxx xxxx xxxx xxxx xxxx"
      }
    }
  }
}

Restart your MCP client. Run npm run inspect to test the tools interactively.

4. (Optional) Tune the settings

When the plugin is active, an admin page appears at Settings → Block MCP. The defaults work out of the box, but it's worth a look — this is where you decide which blocks AI agents are allowed to write, what to suggest as replacements, and which post types create_post can target.

See the Configuration section below for the full breakdown.

MCP Tools

Content I/O

Tool	Purpose
get_page_blocks	Read a post's blocks. Supports outline, summary_only, search, block_name, render, fields, persist_refs
update_block	Update one block's attributes/innerHTML (by flat_index or ref)
update_blocks	Apply N independent updates atomically in ONE revision (max 50). All-or-nothing validation — any stale ref / out-of-range index / dual-storage rejection / duplicate target aborts the batch with itemized errors before anything hits disk
insert_blocks	Insert blocks at a position (by counter or ref)
delete_block	Remove block(s) (by counter or ref)
replace_block_range	Atomic single-revision swap of N blocks for M blocks
rewrite_post_blocks	Full page rewrite
edit_block_tree	9 path-or-ref-based structural ops
insert_pattern	Insert a pattern, synced or inline
revert_to_revision	Roll back to a prior revision ID

Posts & taxonomies

Tool	Purpose
create_post	Create a post or page (draft, publish, future) — accepts blocks or HTML
update_post	Update post metadata, status, terms — covers publish/trash/untrash transitions
list_terms	List taxonomy terms (categories, tags, custom) for ID lookup
find_posts / post_info / resolve_url	Locate posts by search, ID, slug, or URL

Media

Tool	Purpose
upload_media	Upload via local path, URL sideload (with SSRF guard), or base64. Returns attachment ID + URL

Discovery

Tool	Purpose
list_block_types	Browse registered block types with preference tiers
list_patterns / get_pattern	Search and inspect patterns with scoring
get_site_usage	Block/pattern usage analytics

SEO (when Yoast SEO is active)

Tool	Purpose
yoast_get_seo	Read SEO metadata: title, description, robots, OG, Twitter, schema, scores
yoast_update_seo / yoast_bulk_update_seo	Update SEO fields on one or many posts

Stable Refs

Every block in a get_page_blocks response includes a ref field:

{
  "index": 5,
  "path": [0, 2, 1],
  "ref": "blk_a3f2c1q9",
  "name": "core/heading",
  "attributes": { "level": 2, "content": "Hello" }
}

Refs are stored in attrs.metadata.gk_ref inside post_content, so they survive across sessions and across mutations that shift sibling positions. Pass ref to update_block, delete_block, or edit_block_tree to address the same block reliably even after inserts or deletes elsewhere on the page.

The first read of a post lazily assigns + persists refs via a direct DB write that skips revision creation (refs are editor-only metadata, not content). Pass persist_refs: false to read without that side effect.

Configuration

Everything in this section is editable at Settings → Block MCP in WordPress admin. Defaults are sensible — none of this is required to get started.

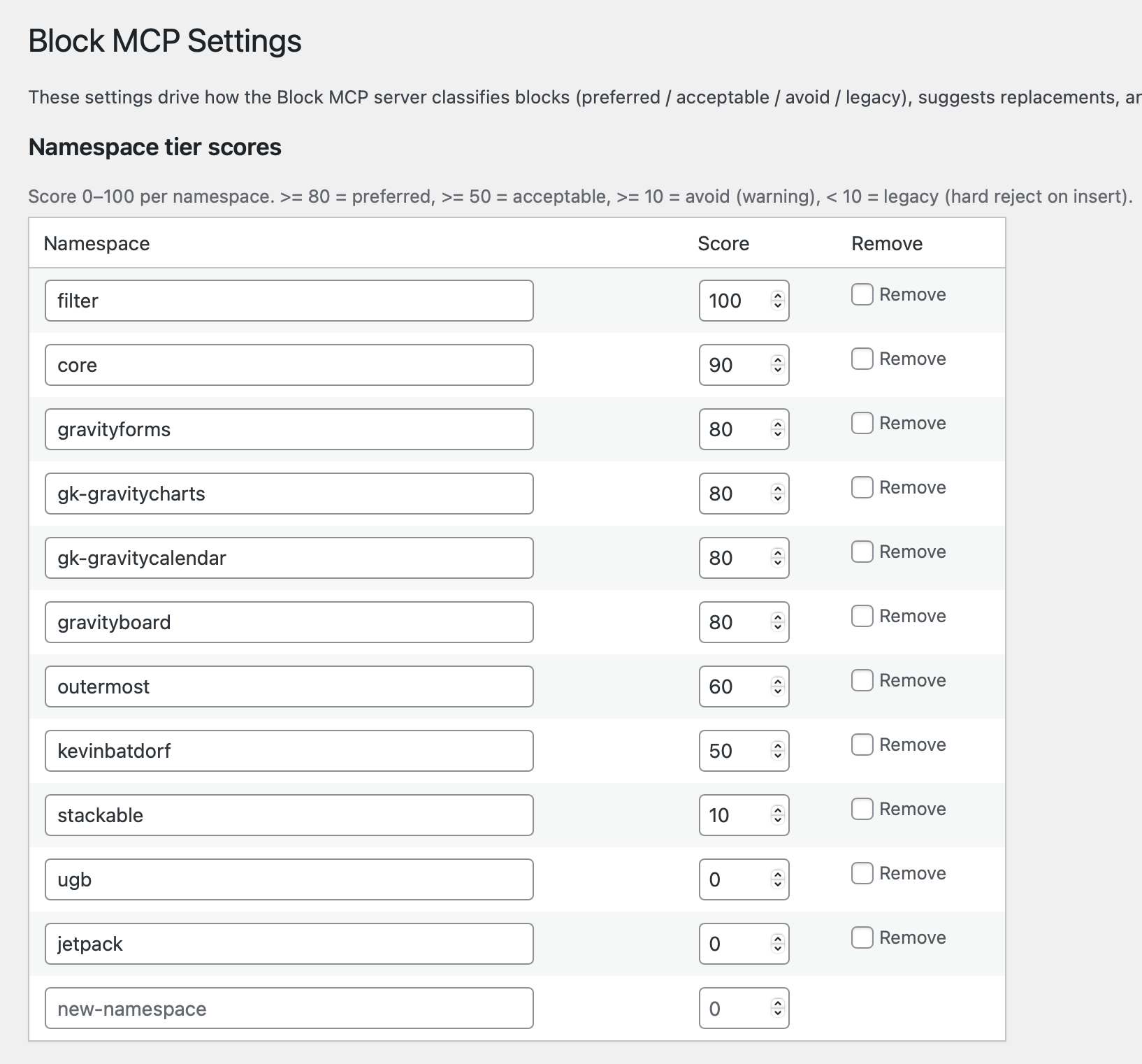

Namespace tier scores

Block preferences are stored as a WordPress option (gk_block_api_preferences) and configurable per-site. Each block namespace gets a score 0–100, which maps to a tier:

Tier	Score	Policy
preferred	≥ 80	Use freely
acceptable	50–79	Use if preferred unavailable
avoid	10–49	Warn, return suggested replacement
legacy	< 10	Reject on insert

Defaults ship with core/* preferred and a starter set of known-deprecated namespaces marked legacy. Add new namespaces by typing into the bottom row — a fresh blank row appears as soon as you start typing.

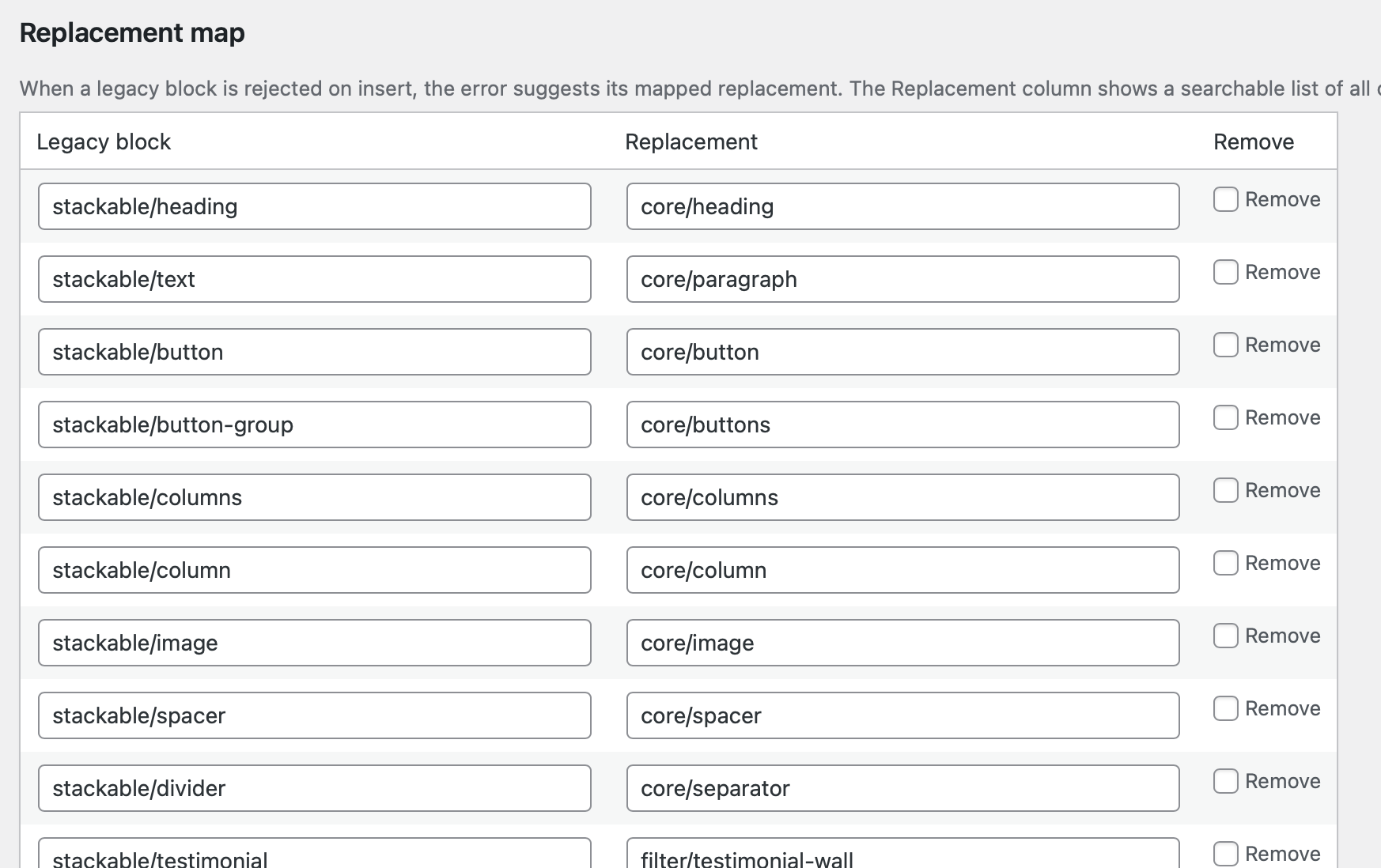

Replacement map

When an agent attempts to insert a legacy block, the rejection error includes a suggested replacement from this map. Both columns are searchable dropdowns of every block currently registered on your site (you can also type a block name that isn't currently registered).

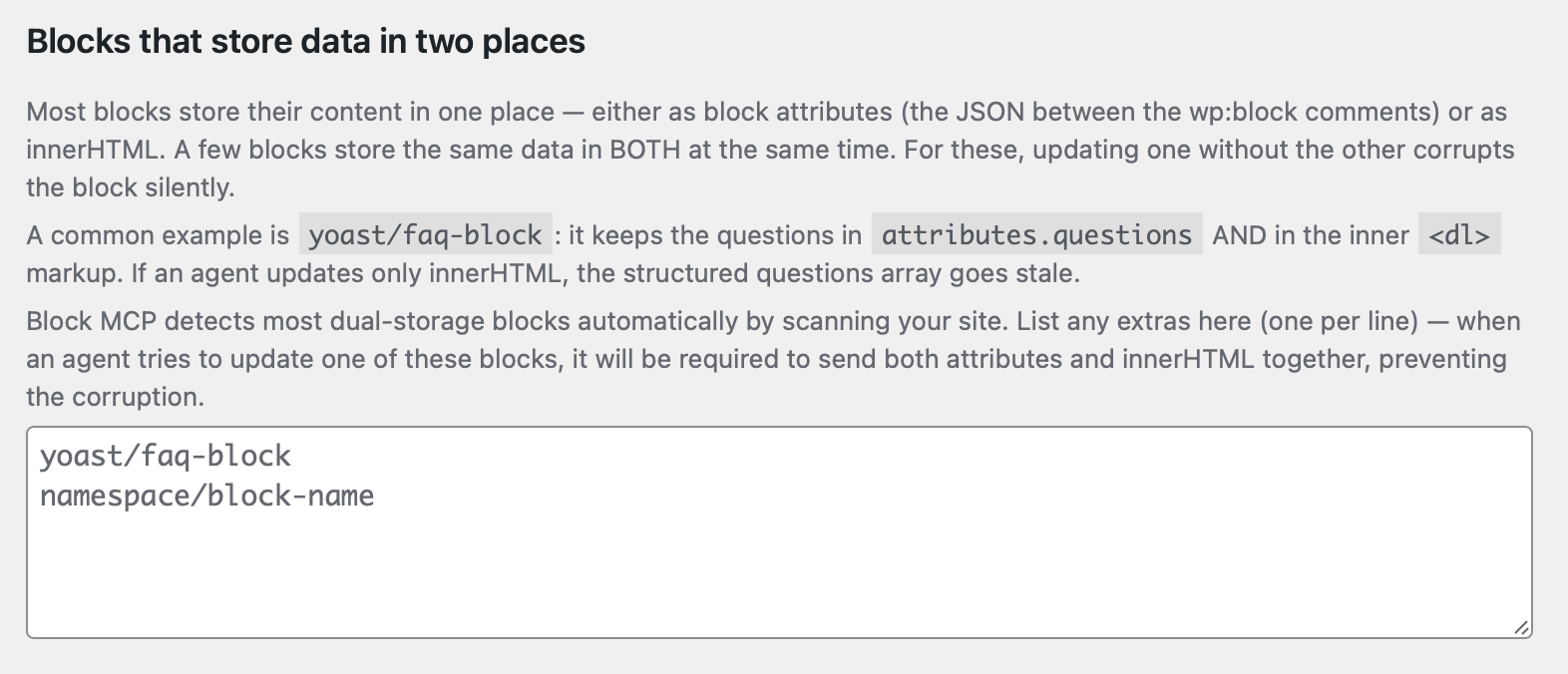

Blocks that store data in two places

A few blocks (notably yoast/faq-block) keep the same data in both their attributes and their innerHTML. Updating one without the other corrupts the block silently. Block MCP detects most automatically by scanning your site; list any extras here so the API forces agents to send both fields together.

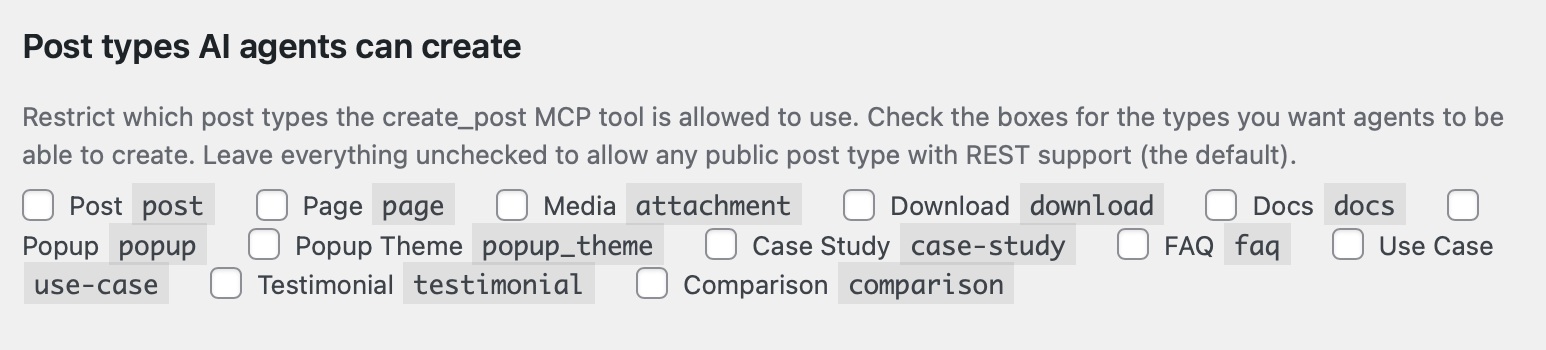

Post types AI agents can create

Restrict create_post to specific post types. Leave everything unchecked to allow any public post type with REST support (the default).

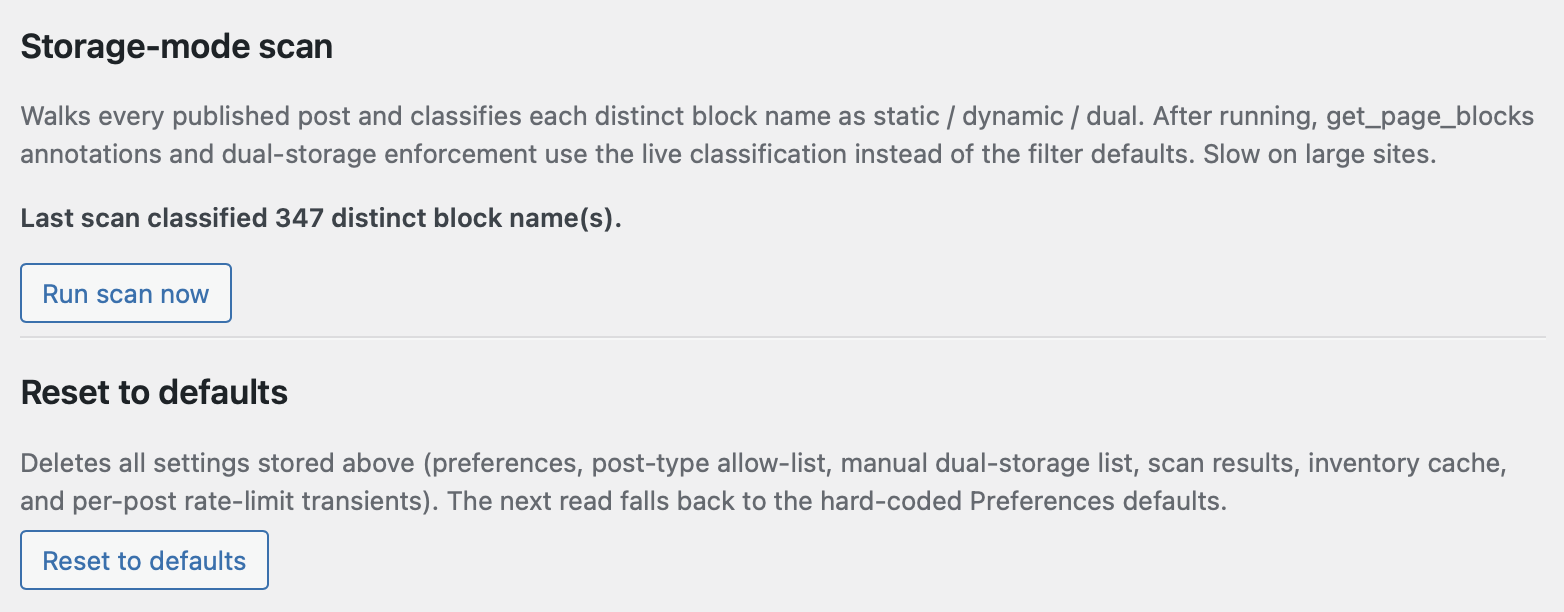

Storage-mode scan + reset

The scan walks every published post and classifies each distinct block as static / dynamic / dual, replacing the filter defaults with live data from your site. Slow on large sites; the result is cached. The Reset button below it clears every option this plugin owns and restores hard-coded defaults.

Examples

Update a heading by URL

"Change the H2 'Welcome' on /about/ to 'About Us'."

1. resolve_url({ url: "/about/" }) → post ID
2. get_page_blocks({ post_id, outline: true }) → finds heading at path: [4], ref blk_a3f2c1q9
3. edit_block_tree({ post_id, op: "update-attrs", ref: "blk_a3f2c1q9", attributes: { content: "About Us" } })

Auto-transform updates both the content attribute and the inner <h2> text. Revision created.

Chained edit workflow (where refs shine)

"On the homepage: delete the third paragraph, change the next H2 to H3, and add a CTA button after it."

1. get_page_blocks({ post_id }) once — capture refs for all three target blocks
2. delete_block({ post_id, ref: <para-ref> })
3. edit_block_tree({ post_id, op: "update-attrs", ref: <heading-ref>, attributes: { level: 3 } })
4. insert_blocks({ post_id, after_ref: <heading-ref>, blocks: [{ name: "core/buttons", … }] })

With path-based addressing, the agent would need to re-fetch between every step. With refs, one read covers the whole chain.

Author and publish a doc

1. list_terms({ taxonomy: "category", search: "Documentation" }) → category ID
2. create_post({ title: "Getting Started", status: "draft", categories: [<id>], blocks: [...] }) → post ID
3. upload_media({ path: "/tmp/screenshot.png", alt_text: "...", post_id }) → attachment ID + URL
4. insert_blocks({ post_id, after_top_level: 0, blocks: [{ name: "core/image", attributes: { id: <atch>, url, alt: "..." } }] })
5. yoast_update_seo({ post_id, title: "...", description: "...", focus_keyword: "..." })
6. update_post({ post_id, status: "publish" })

Testing

Run all suites locally:

# TypeScript (Vitest) — 257 tests
npm test

# PHP (PHPUnit, stub WP bootstrap) — 335 tests
cd wordpress-plugin/gk-block-api && phpunit -c tests/phpunit.xml

The PHP suite uses a minimal WordPress stub layer (no full WP install required) to exercise validation, error paths, mutation engine, ref resolution, HTML auto-transforms, post lifecycle, term listing, media validation, and REST summary/outline.

An end-to-end smoke script is included under scripts/ for live-WordPress validation; point it at any WordPress site by setting WORDPRESS_URL, WORDPRESS_USER, and WORDPRESS_APP_PASSWORD.

Requirements

• Node.js ≥ 20
• WordPress ≥ 6.0 with Application Passwords enabled
• PHP ≥ 7.4
• HTTPS (required by WordPress for Application Password authentication)

Limitations

Scope

• Edits work on posts stored as blocks. Block-theme templates (wp_template, wp_template_part) and widget areas are not yet supported.
• Custom post types must declare show_in_rest: true (or be in the configured allow-list) to be writable.
• innerHTML passes through wp_kses_post on every write — <script>, inline event handlers, and other disallowed markup are stripped. Whitelist additional tags with the wp_kses_allowed_html filter if needed.

Tier policy

• Legacy-tier blocks (score < 10) are hard-rejected on insert, replace-block, insert-child, wrap-in-group, and replace_all_blocks. The error includes a suggested replacement when one is mapped.
• Avoid-tier blocks (score 10–49) write through with warnings, not errors.
• Tier policy is insert-only — update-attrs and update-html can mutate a legacy block that's already on the page (so existing pages aren't bricked).

Structural caps

• Block nesting depth is capped at 32 levels (MAX_BLOCK_DEPTH). Trees deeper than that reject with block_depth_exceeded. Not filterable.
• Batch writes (update_blocks) cap at 50 items per call (MAX_BATCH_SIZE). One batch counts as one write against the rate limit regardless of N.

Rate limits

• Per-post, per-minute, transient-backed. 10 writes/min for update_*/delete_*/insert_*/mutate_*/update_post; 2/min for full-rewrite PUT /blocks.
• Buckets are per-post, not per-user — multiple agents editing the same post share the budget.
• Returns HTTP 429 rate_limit_exceeded; resets naturally after 60 s.

Static block innerHTML

• WordPress has no PHP equivalent of the React save function, so the server cannot regenerate the rendered markup of a static block from its attributes alone. Auto-transforms cover heading level, list ordered, group tagName, button URL, image src/alt, video/audio booleans, spacer height/width, details open, and quote citation. For anything else, send innerHTML along with attributes (update_block will refuse dual-storage writes that omit either side).

Dual-storage blocks

• A small set of blocks (notably yoast/faq-block) duplicate state across attributes and innerHTML. The API requires both fields together on update (dual_storage_requires_both error otherwise) and the dual-storage list is configurable at Settings → Block MCP.

Block Bindings API

• Requires WordPress 6.5+ on the target site.
• Attributes listed in attrs.metadata.bindings are write-locked by default — a write that targets a bound attribute returns 400 bound_attribute. Pass allow_bound_writes: true on the update to override.
• Reads surface the binding map as a top-level bindings field and a bound_attributes array; binding resolution (rendering the dynamic value) happens only in render mode.

Schema-aware attribute extraction

• Reads merge attributes sourced via block.json (source: attribute | html | rich-text | text) into the response.
• source: 'query' is not yet supported — it returns the delimiter attrs only with a TODO. source: 'meta' is deprecated and ignored.

Patterns

• Registered patterns are always inlined on insert. Only synced patterns (wp_block CPT entries) can be inserted as a core/block reference.

Media uploads

• URL sideload is capped at 25 MB and uses a 10 s timeout.
• SSRF guard rejects RFC1918 / loopback / link-local / cloud-metadata (169.254.0.0/16) hosts before download. The block list is extensible via the gk_block_api_url_sideload_blocked_ranges filter.
• Uploads can be disabled site-wide with the kill-switch at Settings → Block MCP.

Render mode

• ?render=true resolves dynamic blocks, expands shortcodes, and follows synced pattern references. Disabled by default — read paths return raw block markup so an agent sees what the editor sees.

Error Codes

Every REST endpoint returns errors as JSON in the standard WordPress shape { code, message, data: { status, … } }. The MCP server forwards the HTTP status and code through to the tool result so the agent can dispatch on code directly.

Auth & permissions (HTTP 403)

Code	When it fires	How to recover
rest_forbidden	Caller lacks edit_posts capability on the request	Use an Application Password for a user with edit_posts
rest_cannot_edit	Caller lacks edit_post for the specific post	Reassign the post or elevate the user's capability
rest_cannot_create	Caller lacks edit_posts (or post-type-specific create cap) for create_post	Same
rest_cannot_publish	create_post / update_post requested publish but caller lacks publish_posts	Lower status to draft/pending, or elevate the user
rest_cannot_upload	upload_media called without upload_files cap	Elevate the user
rest_cannot_assign_author	create_post / update_post set author to another user without edit_others_posts	Drop the author field or elevate
uploads_disabled	Site admin flipped the uploads kill-switch off at Settings → Block MCP	Re-enable in admin or stop calling upload_media

Not found (HTTP 404)

Code	When it fires	How to recover
post_not_found	post_id doesn't resolve to a post	Re-run resolve_url or find_posts
block_not_found	flat_index / path / ref doesn't address an existing block	Re-fetch get_page_blocks
ref_stale	gk_ref no longer exists in the post (deleted or replaced)	Re-fetch and re-bind
pattern_not_found	pattern_id doesn't match a synced or registered pattern	Use list_patterns
revision_not_found	revert_to_revision got an ID that isn't a revision of the target post	Use update_post history or query the post's revisions
not_found	Generic resource-not-found for endpoints that don't have a specific code	Inspect message for which resource

Precondition / concurrency (HTTP 412)

Code	When it fires	How to recover
stale_revision	If-Match header / if_match body field didn't match the current revision ID (someone else edited the post)	Re-fetch, re-apply changes against fresh state, retry

Validation (HTTP 400)

Code	When it fires	How to recover
legacy_block	Inserting a block in the legacy tier	Use the suggested replacement returned in data.suggested_replacement
dual_storage_requires_both	Updating a dual-storage block with only attributes or only innerHTML	Send both fields together
bound_attribute	Update targets an attribute listed in attrs.metadata.bindings	Resolve the binding upstream, or pass allow_bound_writes: true
batch_too_large	update_blocks payload exceeds MAX_BATCH_SIZE (50)	Split into multiple batches
batch_validation_failed	One or more items in a batch failed validation; the whole call was rejected before any disk write	Inspect data.errors[] for the per-item codes and retry valid items
empty_batch	update_blocks called with updates: []	Skip the call
block_depth_exceeded	Tree depth would exceed 32 levels after the write	Flatten the block structure
invalid_path / invalid_destination / invalid_target	Path array is not non-negative integers, or doesn't address a block	Re-fetch and use a fresh path
invalid_ref	Ref isn't a valid blk_XXXXXXXX shape	Re-fetch and use a returned ref
ref_not_top_level	Operation requires a top-level block (e.g. replace_block_range) but ref points into a nested block	Pass the top-level ancestor's ref
invalid_op	edit_block_tree op not in the 9-op enum	Use one of update-attrs, update-html, replace-block, remove-block, wrap-in-group, unwrap-group, insert-child, duplicate, move
invalid_block	Block definition is malformed (missing name, name not registered, etc.)	Check the block name with list_block_types
missing_attributes / missing_html / missing_block / missing_blocks / missing_destination / missing_target / missing_data / missing_lookup / missing_file / missing_title	Required field omitted	Include the field
invalid_count / invalid_range / invalid_index / invalid_limit / invalid_cursor	Numeric arg out of range or wrong shape	See message for the expected bounds
invalid_updates	update_blocks updates array malformed	Re-shape per the update_blocks schema
invalid_post_type / invalid_status / invalid_taxonomy / invalid_term / invalid_author / invalid_parent / invalid_featured_media	create_post / update_post field validation	Check the value against the relevant WordPress registry
cycle_parent	Parent assignment would create a hierarchy loop	Pick a different parent
mixed_trash_payload	update_post mixed status: trash with other fields	Trash first, then update separately
invalid_if_match	Header is present but not a positive integer	Send If-Match: <revision_id>
revision_mismatch	Internal — captured revision ID didn't match before save	Retry; if persistent, file an issue
no_inner_blocks	unwrap-group on a block that has none	Either remove the wrapper differently or insert children first
no_file / missing_file	upload_media got no multipart payload	Send a file field, url, or data_base64
multiple_inputs / mutually_exclusive	upload_media got more than one of file / url / data_base64	Send exactly one
invalid_filename / disallowed_mime / file_too_large / invalid_base64 / invalid_url	upload_media payload rejected	See message for which gate failed
upload_error	WordPress' upload handler returned an error	Inspect message
empty_pattern	insert_pattern got a pattern with no parsed blocks	Pick a different pattern
invalid_body	Request JSON body could not be parsed	Validate JSON shape

Rate limit (HTTP 429)

Code	When it fires	How to recover
rate_limit_exceeded	Per-post write budget exhausted (10 writes/min, or 2 full-rewrites/min)	Wait up to 60 s and retry; consider batching with update_blocks
scan_rate_limited	Settings-page scan triggered too frequently	Wait; this affects admin-side scans only

Upstream (HTTP 502)

Code	When it fires	How to recover
url_fetch_failed	upload_media URL sideload failed at HTTP layer (DNS, TLS, non-2xx, or SSRF block)	Verify the URL is publicly reachable and not in a blocked IP range

Server error (HTTP 500)

Code	When it fires	How to recover
internal_error	Uncaught exception bubbled up to the REST envelope	File an issue with the message + reproduction
wp_insert_post_failed	wp_insert_post returned a WP_Error	Inspect message; often a missing required field at the DB layer
duplicate_failed	edit_block_tree op duplicate could not JSON-clone the block (only fires on truly malformed input — resources, invalid UTF-8)	File an issue with the block definition
sideload_failed	upload_media URL passed SSRF + HTTP layers but media_handle_sideload failed	Inspect message; often disk-quota or MIME registration
attachment_missing	upload_media created the attachment but couldn't find it for metadata	File an issue
trash_failed / untrash_failed	wp_trash_post / wp_untrash_post returned false	Retry; if persistent, check for filter conflicts

Translations

The WordPress plugin ships with translations for the 20 most-used WordPress locales: Arabic, Chinese (simplified), Czech, Danish, Dutch, Finnish, French, German, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese (BR), Romanian, Russian, Spanish, Swedish, Turkish.

The translations were generated with Potomatic — an open-source CLI for AI-translating .pot files at scale.

License

• WordPress plugin: GPL-2.0-or-later
• MCP server: MIT

Contributing

Issues and PRs welcome at github.com/GravityKit/block-mcp. Run the test suites before submitting; new mutations should ship with PHPUnit + Vitest coverage.
