solarnetwork-mcp

solarnetwork-mcp

An MCP server that turns SolarNetwork solar telemetry into tools an AI agent can call.

No credentials required. It runs against SolarNetwork's public endpoints, where ~52 live solar sites publish real generation, irradiance and weather data — several of them updating to the minute, with six years of history.

What it can do

Read solar telemetry

• Discover public nodes with no credentials, filter by timezone or liveness
• Classify every stream on a site: site meter, inverter, irradiance, weather, ML anomaly
• Query time series at any roll-up from five minutes to a year
• Get true accumulated energy from meter readings rather than averaged power
• Check whether a stream is still alive, by timestamp rather than by value

Find equipment faults, with dates

• Detect inverter outages and pin the exact start and end day
• Distinguish a dead device from one that is generating but not reporting power
• Catch a device that has gone silent while its siblings keep reporting
• Flag meter counter resets, which silently corrupt every energy total spanning them
• Spot registry entries for hardware that has never existed
• Estimate energy lost per fault, scaled from sibling output by each device's own capacity

Not raise false alarms

• Detection is peer-relative, so cloud cover cannot register as a fault
• Irradiance is used as a physical weather control where a pyranometer exists
• Faults already running when the window opens are labelled as lower bounds, not invented start dates
• Sites that cannot be assessed are reported as not assessed, never as healthy

Write reports people can act on

• Prioritised work orders with plain-language cause, evidence, numbered steps, tools and sign-off criteria

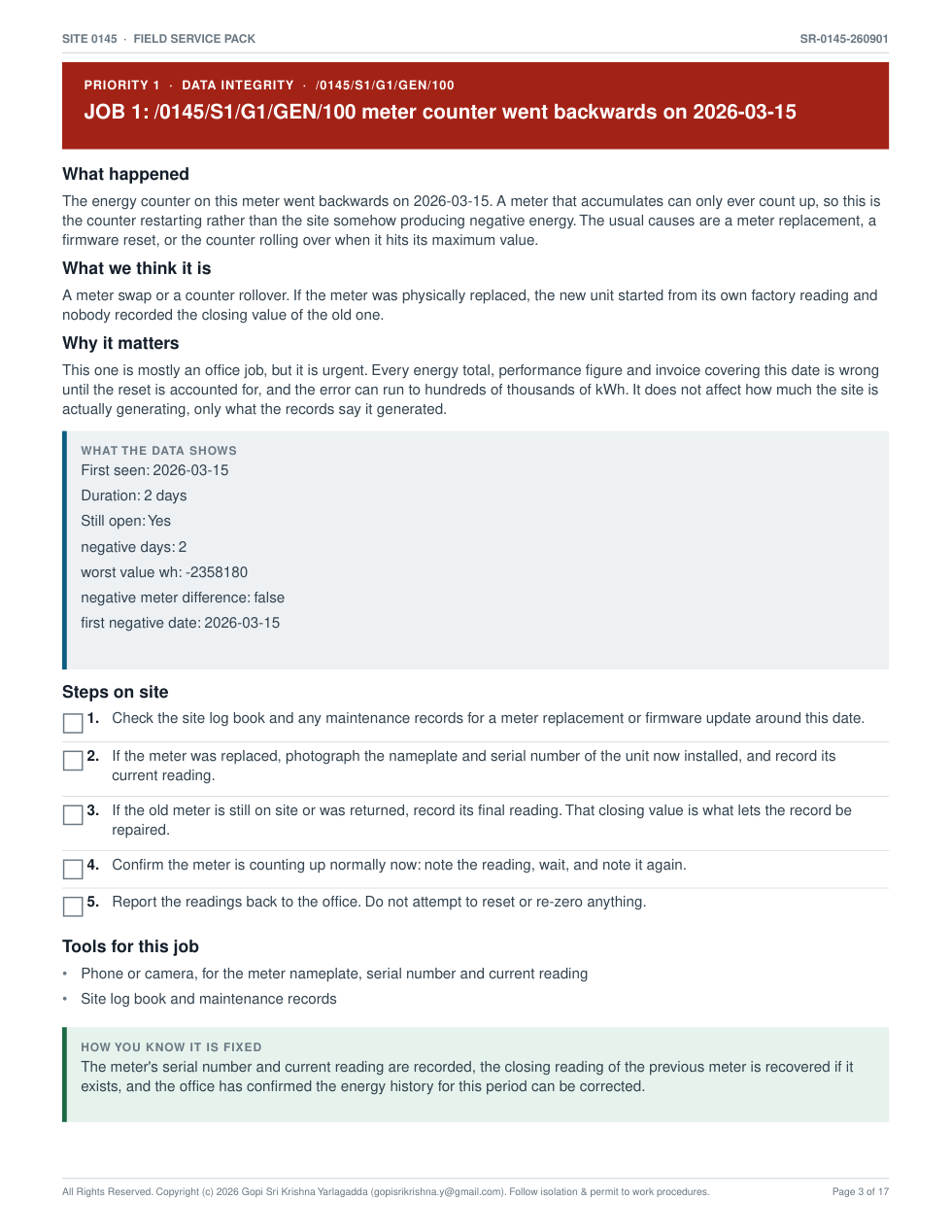

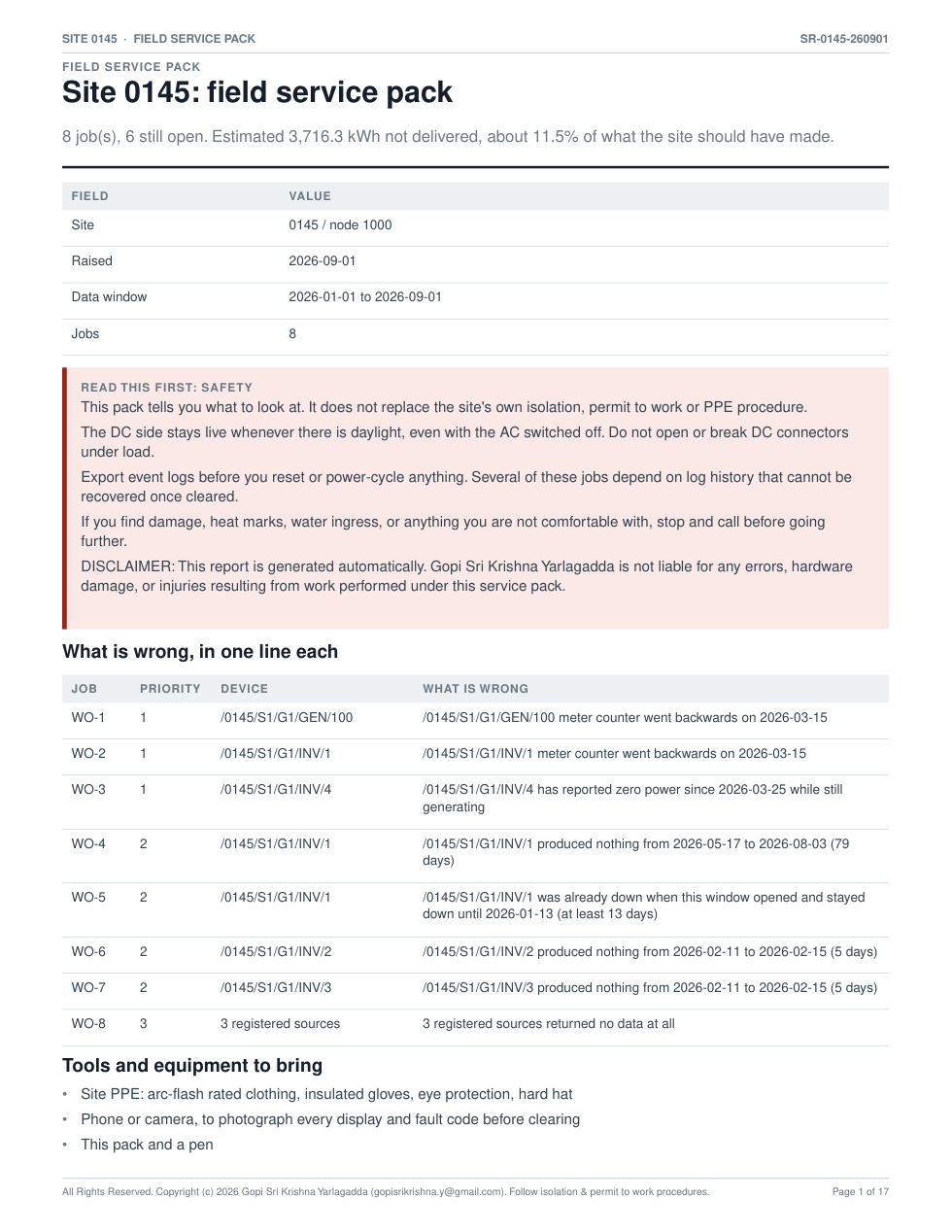

• Printable PDF field packs with tick boxes and a notes sheet
• Markdown for pasting into a ticket, or JSON to post-process
• Plain ASCII throughout, so nothing turns into black boxes in a PDF or a ticketing system

What it cannot do

Worth knowing before you rely on it:

• Sites with fewer than two inverters cannot be assessed. Peer comparison needs peers. The tool says so rather than reporting a clean result.
• No nameplate ratings. Public nodes do not expose them, so loss figures are peer-scaled estimates, not warranty calculations.
• Fault detection runs on daily buckets. A device silent for six hours is invisible.
• Stream classification depends on a path convention. Sites naming streams Main or SMAInverter1 come back unclassified.

What it actually does

Without it, answering "is anything wrong at this site?" means knowing the node ID, the /datum/list endpoint, that aggregation=Day exists, that watts and wattHours are different questions, and then reading JSON.

With it, you ask:

"Is anything wrong at node 1000? If output is down, tell me whether it's weather or equipment."

and the agent discovers the site's streams, picks a date range, runs the aggregation, compares each inverter against its siblings, and answers in English. One sentence in, a diagnosis out.

The server does the parts a language model is bad at — request signing, pagination, unit semantics, knowing which of nine streams is a weather sensor. The agent does the parts it's good at — deciding what to ask and interpreting the answer.

See it working in 60 seconds

npm install && npm run build && npm run smoke

That drives every tool over the real MCP protocol against live data. No agent, no API key, no config. If it prints findings for node 1000, you're good.

Hand this to your agent

Copy the whole block below into Claude Code, Cursor, or any MCP-capable agent. It installs the server, wires itself up, proves the install works, and then runs a guided demo of every capability against live public solar sites.

Set up and demo the solarnetwork MCP server for me.

1. INSTALL
   git clone https://github.com/gopisrikrishna/solarnetwork-mcp.git
   cd solarnetwork-mcp
   npm install
   npm run build

2. VERIFY THE INSTALL
   Run: npm run verify
   This runs 28 assertions against live public solar data. No credentials needed.
   Tell me how many passed. If any fail, show me which and stop.

3. CONNECT IT
   Register the server with yourself over stdio:
     command: node
     args:    ./dist/index.js   (run from the solarnetwork-mcp directory)
   The repo ships a .mcp.json that already does this. Restart/reconnect if your
   client needs it, then confirm you can see 10 tools and list their names.

4. DEMO IT
   Work through these against real public nodes and show me what you find.
   Explain your reasoning at each step, do not just dump JSON.

   a) DISCOVERY
      Which public nodes are live in US timezones? Then: what does node 1000
      measure, and how far back does its data go?

   b) ENERGY
      How much did node 1000 generate in July 2026? Use the right tool for a
      billing-shaped question and tell me why you chose it.

   c) FAULT DETECTION  <- the interesting one
      Run an asset review on node 1000 for 2026-01-01 to 2026-09-01.
      Tell me what broke, exactly when it started and ended, and what it cost.
      There is a real 79-day inverter outage in there, and a second fault where
      a device reports 0 watts while still generating. Explain the difference
      between those two failure modes and why it matters.

   d) NOT BEING FOOLED
      Run an asset review on node 949 for July 2026. It will find nothing.
      Explain why "no faults found" does NOT mean the site is healthy here.

   e) DATA INTEGRITY
      Run an asset review on node 781 for 2026-01-01 to 2026-09-01.
      Its site meter counter reset mid-year. Show me how the tool handles it and
      what would have gone wrong without that handling.

   f) CROSS-CHECK
      Node 392 publishes the platform's own ML anomaly streams. Compare what
      get_anomalies says against what the asset review found. Do they agree?

   g) REPORT
      Generate a PDF service report for node 1000 over the same window, written
      for an on-site technician. Save it and tell me the path, how many pages,
      and summarise the priority 1 jobs.

5. WRAP UP
   Tell me in plain language: what is wrong with node 1000, how much energy has
   been lost, and what you would send a technician to do first.

Verify it yourself

Because it runs on public data, you do not have to take any of its conclusions on trust. Every finding is independently reproducible from your own machine:

npm install && npm run build && npm run verify

28 assertions against fixed historical windows on live public nodes. No credentials. Among them:

Check	Node	Expectation

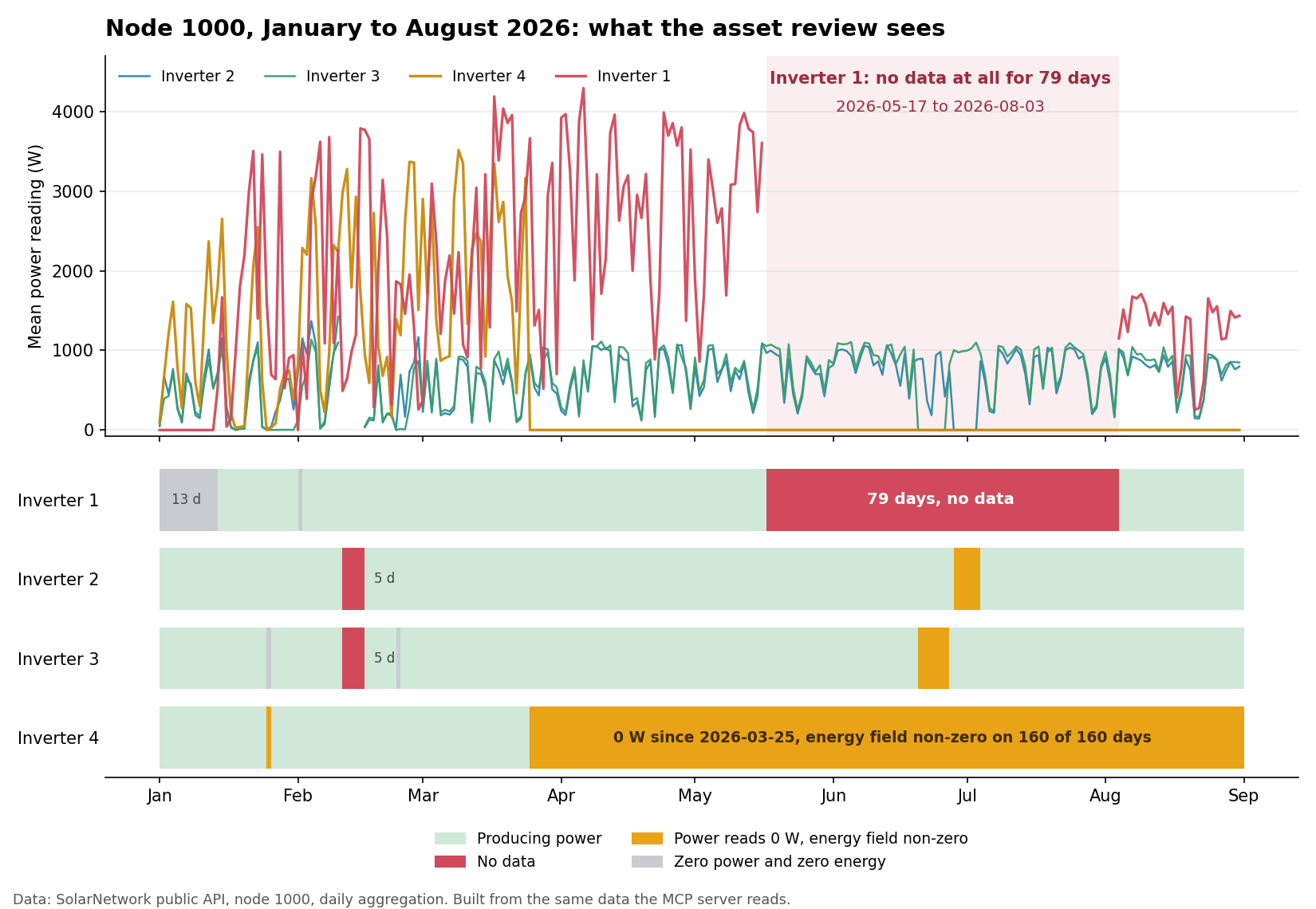

Fault timeline	1000	Inverter 1 outage, exactly 2026-05-17 to 2026-08-03, 79 days
Telemetry fault	1000	Inverter 4 reporting 0 W since 2026-03-25 while still generating
Pagination	1000	A year exceeds SolarQuery's 1000-row page cap; every row is fetched
Meter integrity	781	Counter reset raised, and site energy never reported negative
Meter integrity	900	Counter reset pinpointed to 2026-06-03
Coverage honesty	949	A node with no inverters reports "not assessed", never "healthy"
Site meter choice	464	The real meter wins over a leftover /TEST/GEN/1 stub
Report output	1000	Work orders, acceptance criteria, plain ASCII only

A failure means the server regressed, or SolarNetwork restated history. Each assertion prints what it expected against what it got, so the two are easy to tell apart.

Load it into your agent

Every client wants the same three facts: run node, pass it dist/index.js, talk over stdio. Only the file location differs.

Use the absolute path to dist/index.js on your machine. Forward slashes work on Windows too.

The .mcp.json committed here uses a relative path instead, so that anyone who clones the repo gets a working server without editing anything. That only works for clients that launch the server from the project root, which Claude Code does; other clients may need the absolute form.

Claude Code

Already configured — .mcp.json is in the repo root, so a session started in this directory picks it up automatically. Just edit the path:

{
  "mcpServers": {
    "solarnetwork": {
      "command": "node",
      "args": ["/absolute/path/to/solarnetwork-mcp/dist/index.js"]
    }
  }
}

Or register it globally from anywhere:

claude mcp add solarnetwork -- node /absolute/path/to/solarnetwork-mcp/dist/index.js

Claude Desktop

Edit claude_desktop_config.json:

• macOS — ~/Library/Application Support/Claude/claude_desktop_config.json
• Windows — %APPDATA%\Claude\claude_desktop_config.json

{
  "mcpServers": {
    "solarnetwork": {
      "command": "node",
      "args": ["/absolute/path/to/solarnetwork-mcp/dist/index.js"]
    }
  }
}

Restart the app. A tools icon appears in the message box.

Cursor

.cursor/mcp.json in your project, or ~/.cursor/mcp.json for every project. Same mcpServers block as above.

Windsurf

~/.codeium/windsurf/mcp_config.json. Same mcpServers block.

VS Code (Copilot agent mode)

.vscode/mcp.json — note the key is servers, not mcpServers:

{
  "servers": {
    "solarnetwork": {
      "type": "stdio",
      "command": "node",
      "args": ["/absolute/path/to/solarnetwork-mcp/dist/index.js"]
    }
  }
}

Zed

In settings.json, under context_servers:

{
  "context_servers": {
    "solarnetwork": {
      "command": { "path": "node", "args": ["/absolute/path/to/dist/index.js"] }
    }
  }
}

Anything else

Any MCP client can launch it over stdio:

node /absolute/path/to/solarnetwork-mcp/dist/index.js

To drive it from code, scripts/smoke.mjs is a complete worked example using the official TypeScript SDK.

Checking it loaded

Ask your agent: "What solar tools do you have?" You should see ten. If not, the usual causes are a relative path, a missing npm run build, or the client not being restarted.

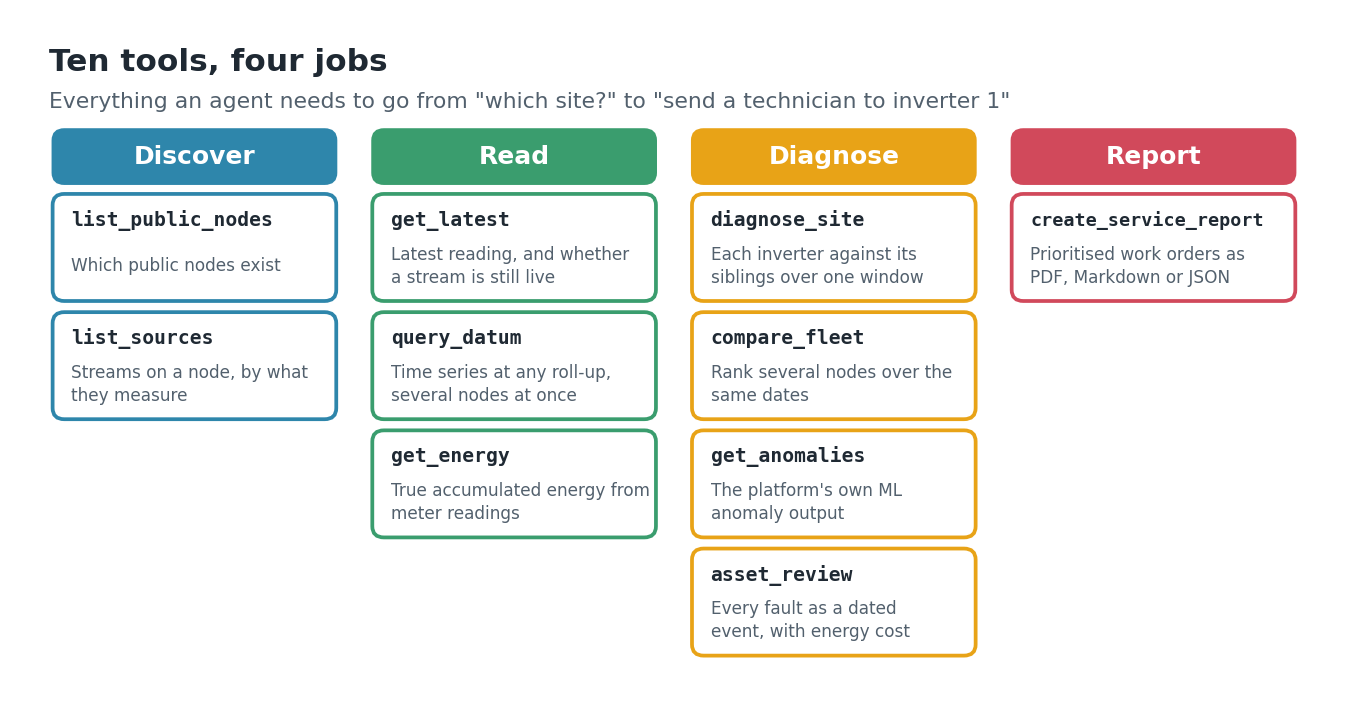

The tools

Discovery

Tool	Answers
list_public_nodes	"What nodes can I even look at?"
list_sources	"What does this node measure?"
get_latest	"What's happening right now?"

Data

Tool	Answers
query_datum	"Show me output over this period"
get_energy	"How many kWh did it actually generate?"

Analysis

Tool	Answers
asset_review	"What broke, when did it start, and what did it cost?"
diagnose_site	"Is anything wrong right now, weather or equipment?"
compare_fleet	"Which of my sites needs attention first?"
get_anomalies	"What does the platform's own ML detector say?"

Reporting

Tool	Answers
create_service_report	"Give me a work order I can hand to a technician"

Things to ask it

Start here — these are real, live nodes:

Orientation

Which public SolarNetwork nodes are live in US timezones?

What does node 1000 measure, and how far back does its data go?

Right now

What's node 892 generating right now, and what's the weather there?

Node 892 carries a weather sensor and a pyranometer, so the agent gets temperature, cloud cover and irradiance alongside output.

Diagnosis — the interesting ones

Is anything wrong at node 1000?

Node 892 lists six inverters but I see no generation. What's going on?

Fleet

Rank nodes 880, 884, 953, 964, 976, 987 and 1000 by output last week. Which should I look at first?

Multi-step, where the chaining shows

Find a live US node with at least four inverters and irradiance data, then diagnose it for the last two weeks.

What you get back

Real output from diagnose_site on node 1000:

[high] reporting-gap   /0145/S1/G1/GEN/101, /102, /103
       Registered on this node but returned no data for the window. That is a
       reporting or comms outage rather than a performance problem, so the
       device may well be generating.

[low]  inconsistent-instrumentation   /0145/S1/G1/INV/4
       Reports 0 W, but its `wh` field is non-zero (peak 16508), so it is moving
       energy. This device populates energy fields only, unlike its peers, so
       power-based comparison would wrongly read it as dead.

That second finding is the point of the whole project. INV/4 reads 0 W while its three siblings produce 400–700 W, which looks exactly like a dead inverter — and an earlier version of this tool said so. It isn't dead: its meter accumulated 826 kWh that month. Inverters at one site use different reporting conventions. A health check keyed on watts alone would page someone about a working inverter every night.

Your own nodes

Set two environment variables and the server switches from the public /pub endpoints to authenticated /sec ones. The tool surface is unchanged:

SN_TOKEN_ID=... SN_TOKEN_SECRET=... node dist/index.js

Auth is SolarNetwork's SNWS2 scheme — HMAC-SHA256 over a canonicalised request with a date-scoped key. It's implemented but untested; I have no token pair to verify against.

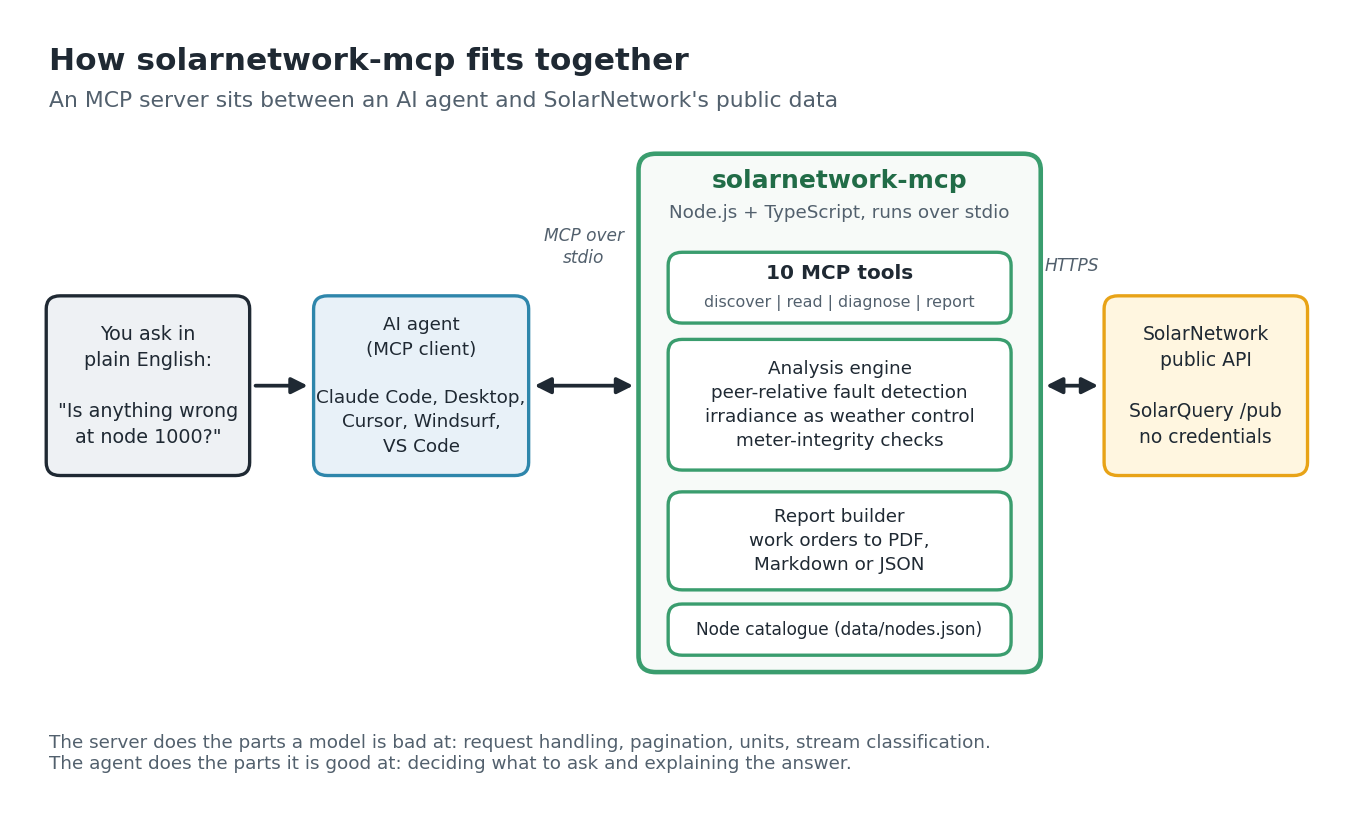

How it works

Three files, ~900 lines total:

• src/solarnetwork.ts — API client, paging, request signing
• src/analysis.ts — source-ID parsing, per-site diagnosis
• src/index.ts — the ten tool definitions

The tool descriptions are the real interface. An agent only chains list_sources → query_datum correctly if the descriptions say when to reach for each one. Getting that wording right mattered more to whether this works than any of the data handling.

Limits

• Node metadata is empty on public nodes, so there's no nameplate capacity and therefore no capacity-normalised comparison. compare_fleet ranks raw output and says so — a big site will outrank a small healthy one.
• list_public_nodes reads a point-in-time scan (data/nodes.json), not a live listing. Call list_sources to confirm before relying on a node.
• No caching. Repeated agent calls re-hit the API.
• No unit tests. scripts/smoke.mjs is a live probe, not a test suite.
• SolarQuery silently coerces fine-grained aggregation to hourly for ranges over ~7 days. query_datum passes your aggregation through as-is, so long ranges return coarser data than requested.

More detail: USAGE.md for worked examples and an effort comparison, DATA.md for the full inventory of what's public vs credential-gated.

License

Proprietary / All Rights Reserved. See LICENSE for details.
