powhttp-mcp

---

See it in action

Using /generate_scraper to build a BMW car listing monitor:

https://github.com/user-attachments/assets/be098e9d-d700-491c-ae7f-5afb12732728

---

Features

• HTTP Traffic Analysis - Search, inspect, and analyze captured HTTP requests/responses
• Anti-Bot Detection - Compare browser vs program traffic to identify detection vectors
• Fingerprinting - Generate TLS (JA3/JA4) and HTTP/2 fingerprints
• API Mapping - Cluster and catalog API endpoints from captured traffic
• GraphQL Analysis - Cluster operations, inspect schemas, and extract errors from GraphQL APIs
• Schema Inference - Infer merged schemas from multiple response bodies with field statistics
• Flow Tracing - Trace related requests (redirects, dependent calls)
• Schema Validation - Validate response bodies against Go structs, Zod, or JSON Schema
• Scraper Generation - Generate PoC Go scrapers from captured traffic

Schema validation in action - correcting data structures for edge cases:

https://github.com/user-attachments/assets/1156c537-70ab-4179-ad4a-c148988ac503

---

Installation

Install via go install:

go install github.com/usestring/powhttp-mcp/cmd/powhttp-mcp@latest

Or install a specific version:

go install github.com/usestring/powhttp-mcp/cmd/powhttp-mcp@v1.0.0

Download and install Go from the official website: https://go.dev/doc/install

If you get command not found: powhttp-mcp after installation, you need to add Go's bin directory to your PATH.

Find your Go bin directory:

go env GOPATH

This returns your Go workspace directory, typically ~/go (macOS/Linux) or C:\Users\yourname\go (Windows). The binaries are installed in the bin subdirectory.

macOS / Linux

For bash (~/.bashrc or ~/.bash_profile):

export PATH="$PATH:$(go env GOPATH)/bin"

For zsh (~/.zshrc):

export PATH="$PATH:$(go env GOPATH)/bin"

For fish (~/.config/fish/config.fish):

fish_add_path (go env GOPATH)/bin

Then reload your shell:

source ~/.zshrc  # or ~/.bashrc, etc.

Windows

PowerShell (current session):

$env:PATH += ";$(go env GOPATH)\bin"

Permanently via PowerShell:

[Environment]::SetEnvironmentVariable("PATH", $env:PATH + ";$(go env GOPATH)\bin", "User")

Or via System Settings:

1. Press Win + R, type sysdm.cpl, press Enter
2. Go to Advanced → Environment Variables
3. Under "User variables", select Path and click Edit
4. Click New and add %USERPROFILE%\go\bin
5. Click OK to save, then restart your terminal

---

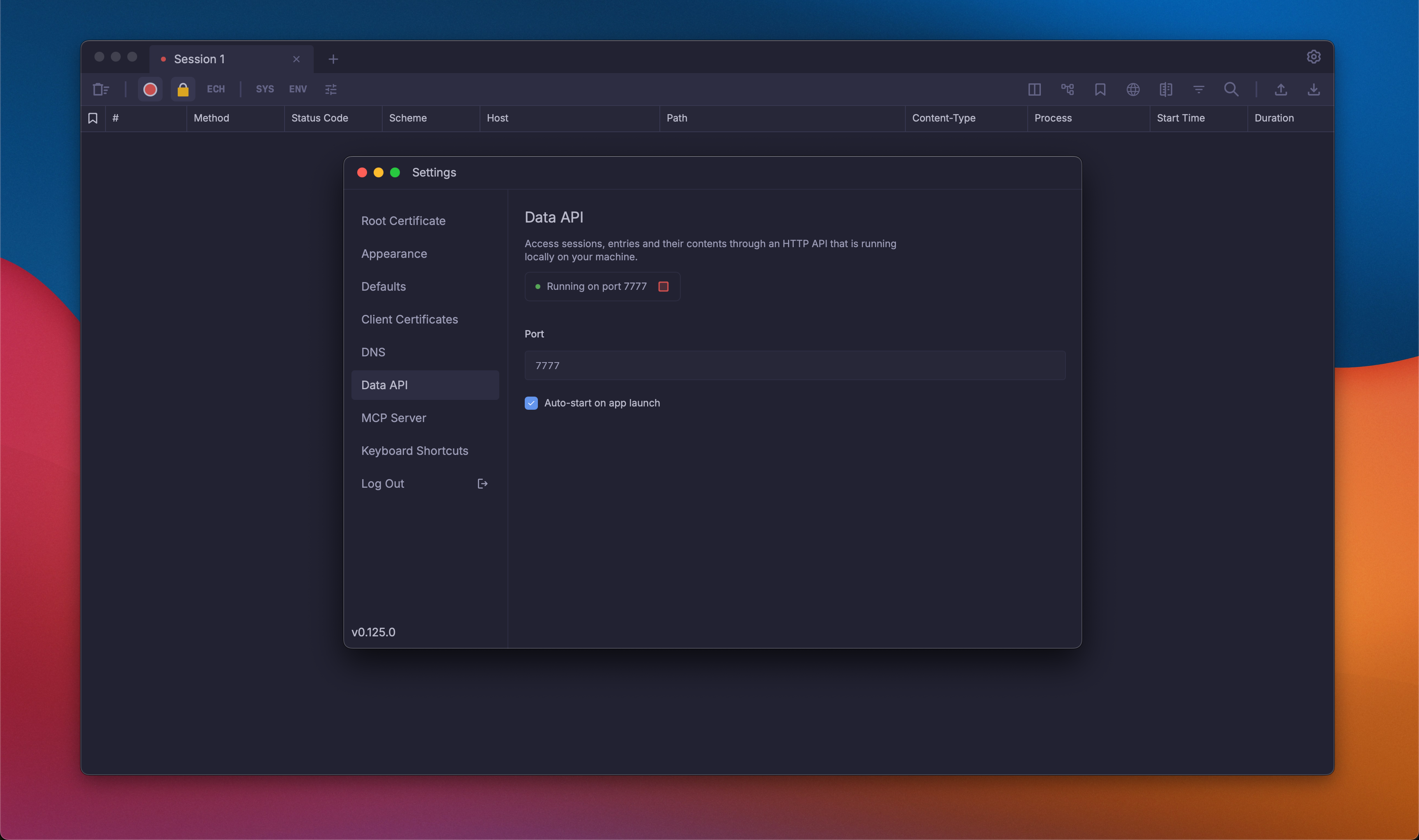

Enabling the Data API

Before using powhttp-mcp, you need to enable the Data API in powhttp:

1. Open Powhttp Settings > Data API
2. Make sure the Data API is running
3. (Recommended) Enable Auto start on app launch for convenience
4. Note the port number — you'll need this for POWHTTP_BASE_URL in your MCP configuration

---

Usage

Connecting to Cursor

Add to your .cursor/mcp.json:

{
  "mcpServers": {
    "powhttp": {
      "command": "powhttp-mcp",
      "env": {
        "POWHTTP_BASE_URL": "http://localhost:7777",
        "POWHTTP_PROXY_URL": "http://localhost:8888"
      }
    }
  }
}

Connecting to Claude Desktop

Add to your Claude Desktop config (~/Library/Application Support/Claude/claude_desktop_config.json on macOS):

{
  "mcpServers": {
    "powhttp": {
      "command": "powhttp-mcp",
      "env": {
        "POWHTTP_BASE_URL": "http://localhost:7777",
        "POWHTTP_PROXY_URL": "http://localhost:8888"
      }
    }
  }
}

Connecting to Claude Code

Add using the CLI:

claude mcp add powhttp -e POWHTTP_BASE_URL=http://localhost:7777 -e POWHTTP_PROXY_URL=http://localhost:8888 -- powhttp-mcp

The generated scraper running successfully:

https://github.com/user-attachments/assets/52b30cbf-7c66-40b1-a3fe-9c12d37ece11

---

MCP Prompts

powhttp-mcp provides 4 prompts for guided workflows:

Prompt	Description
base_prompt	START HERE: Essential guide for efficient tool usage and token optimization
compare_browser_program	Compare browser vs program traffic to find anti-bot detection differences
build_api_map	Build an API endpoint catalog from captured traffic
generate_scraper	Generate PoC Go scrapers from captured traffic

---

MCP Tools

powhttp-mcp provides 17 tools for HTTP traffic analysis:

Tool	Description
powhttp_sessions_list	List all sessions with entry counts
powhttp_session_active	Get the currently active session
powhttp_search_entries	Search entries with filters and free text
powhttp_get_entry	Get full details of a specific entry
powhttp_get_tls	Get TLS handshake events for a connection
powhttp_get_http2_stream	Get HTTP/2 frame details for a stream
powhttp_fingerprint	Generate HTTP, TLS, and HTTP/2 fingerprints
powhttp_diff_entries	Compare two entries to find detection differences
powhttp_extract_endpoints	Cluster entries into endpoint groups
powhttp_describe_endpoint	Generate detailed endpoint description
powhttp_trace_flow	Trace related requests around a seed entry
powhttp_validate_schema	Validate entry bodies against a schema
powhttp_query_body	Extract specific fields from bodies using JQ expressions
powhttp_infer_schema	Infer merged schema from multiple entry bodies with field statistics
powhttp_graphql_operations	Cluster GraphQL traffic by operation name and type
powhttp_graphql_inspect	Parse and inspect individual GraphQL operations
powhttp_graphql_errors	Extract and categorize GraphQL errors from responses

See internal/mcp/README.md for detailed tool documentation.

---

Environment Variables

Variable	Description	Default
POWHTTP_BASE_URL	Where to find the powhttp API server	http://localhost:7777
POWHTTP_PROXY_URL	Proxy URL used by prompts when generating scrapers and debugging	http://127.0.0.1:8890
LOG_LEVEL	How verbose the logs are: debug, info, warn, error	info
LOG_FILE	File to write logs to (empty = print to console)	"" (console)

Variable	Description	Default
HTTP_CLIENT_TIMEOUT_MS	How long to wait for API responses (milliseconds)	10000 (10s)
FETCH_WORKERS	How many entries to fetch in parallel	16
ENTRY_CACHE_MAX_ITEMS	How many entries to keep in memory cache	512
REFRESH_INTERVAL_MS	How often to check for new entries (milliseconds)	2000 (2s)
REFRESH_TIMEOUT_MS	Max time for index refresh operation (milliseconds)	15000 (15s)
FRESHNESS_THRESHOLD_MS	Consider data stale after this many milliseconds	500 (0.5s)

Variable	Description	Default
TOOL_MAX_BYTES_DEFAULT	Max response body size tools return (bytes)	2000000 (2MB)
RESOURCE_MAX_BODY_BYTES	Max body size for MCP resources (bytes)	65536 (64KB)
TLS_MAX_EVENTS_DEFAULT	Max TLS handshake events to return	200
H2_MAX_EVENTS_DEFAULT	Max HTTP/2 frames to return	200
BOOTSTRAP_TAIL_LIMIT	Max entries to load when starting up	20000

Variable	Description	Default
COMPACT_MAX_ARRAY_ITEMS	In compact mode, trim arrays to this many items	3
COMPACT_MAX_STRING_LEN	Truncate strings longer than this (chars)	500
COMPACT_MAX_DEPTH	Max nesting depth for compaction (0 = unlimited)	0
DEFAULT_SEARCH_LIMIT	Default max results for search_entries	10
DEFAULT_QUERY_LIMIT	Default max entries for query_body	20
DEFAULT_CLUSTER_LIMIT	Default max clusters for extract_endpoints	15
DEFAULT_EXAMPLES_PER_ITEM	Default examples shown per cluster	3

Variable	Description	Default
LOG_MAX_SIZE_MB	Rotate log when it reaches this size (MB)	10
LOG_MAX_BACKUPS	Keep this many old log files	5
LOG_MAX_AGE_DAYS	Delete log files older than this (days)	28
LOG_COMPRESS	Compress old log files (true/false)	true

---

Development

Prerequisites

• Go 1.24.5 or later
• Running powhttp instance

Building

go build ./cmd/powhttp-mcp

Testing

go test ./...

---

Feature Requests & Bug Reports

Have a feature suggestion or found a bug? We'd love to hear from you!

• Feature Requests: Open an issue with the enhancement label
• Bug Reports: Please include steps to reproduce, your environment details, and relevant logs

---

Contributing

We use squash merges for all pull requests. When creating a PR, ensure the PR title follows Conventional Commits format, as it will become the commit message:

Triggers release:

• feat: - minor version bump
• fix: - patch version bump
• perf: - patch version bump
• revert: - patch version bump
• feat!: or BREAKING CHANGE: - major version bump

No release:

• docs:, chore:, refactor:, test:, style:, build:, ci:

Versioning is automated via release-please.

---

License

This project is licensed under the GNU Affero General Public License v3.0 - see the LICENSE file for details.

---

Acknowledgments

About String — String ( better website coming soon :) ) extracts structured data from any website at scale. We handle all the code and maintenance.

This project was built during an internal hackathon focused on developer experience tooling. Special thanks to:

• Kashif Ghafoor — For his contributions during the hackathon
• Florian — Creator of powhttp for implementing the API from a suggestion and being responsive to feedback

---

Related Projects

• powhttp - HTTP traffic capture and analysis
• Model Context Protocol - Protocol specification
