The IBM Instana MCP server enables seamless interaction with the IBM Instana observability platform, allowing you to access real-time observability data directly within your development workflow.

GitHub

Try this MCPSponsored

What can you do with IBM Instana MCP?

Query live observability data — Ask for application metrics, alerts, or infrastructure snapshots from Instana in natural language.
Manage monitoring resources — Create, update, or delete custom dashboards, SLOs, releases, and maintenance windows via manage_custom_dashboards, manage_slo, manage_releases, and manage_maintenance_windows.

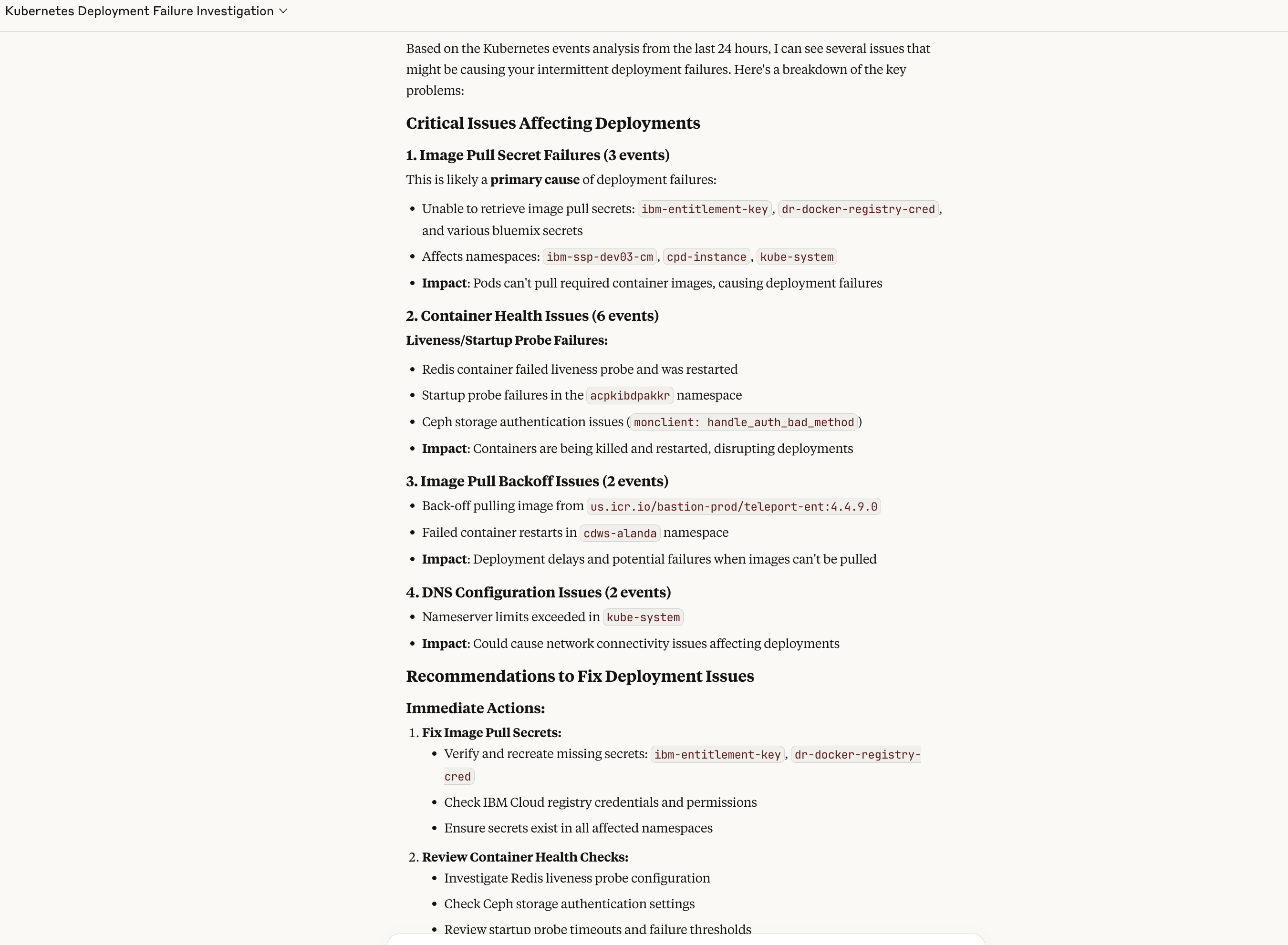

Investigate events and incidents — Retrieve event details, Kubernetes events, and agent monitoring alerts using manage_events.
Analyze performance across domains — Get website, mobile app, and synthetic monitoring metrics and test playback results through manage_websites, manage_mobile_apps, and manage_synthetics.
Filter tools by category — Start the server with only needed capabilities, such as --tools infra,events, to reduce resource usage.

Documentation

🔒 SSL Enabled by Default: Starting with this release 1.0.3, SSL certificate verification is enabled by default for all outgoing Instana API calls. You can customize this behaviour (disable, supply a custom CA bundle, etc.) via CLI flag, environment variable, or config.yaml. See SSL Certificate Verification for full details.

MCP Server for IBM Instana

MCP Server for IBM Instana

Quick Links

Tools & Examples - Comprehensive tool documentation with real-world examples
Privacy Policy - Data handling and privacy information
Docker Deployment Guide - Comprehensive Docker deployment, multi-architecture builds, and production setup

The Instana MCP server enables seamless interaction with the Instana observability platform, allowing you to access real-time observability data directly within your development workflow.

It serves as a bridge between clients (such as AI agents or custom tools) and the Instana REST APIs, converting user queries into Instana API requests and formatting the responses into structured, easily consumable formats.

The server supports both Streamable HTTP and Stdio transport modes for maximum compatibility with different MCP clients. For more details, refer to the MCP Transport Modes specification.

Architecture Overview

graph LR
    subgraph "Application Host Process"
        MH[MCP Host]
        MSI[Instana MCP Server]
        MST[ProductA MCP Server]
        MSC[ProductB MCP Server]

        MH <--> MSI
        MH <--> MSC
        MH <--> MST
    end

    subgraph "Remote Service"
        II[Instana Instance]
        TI[ProductA Instance]
        CI[ProductB Instance]

        MSI <--> II
        MST <--> TI
        MSC <--> CI
    end

    subgraph "LLM"
        L[LLM]
        MH <--> L
    end

Workflow

Consider a simple example: You're using an MCP Host (such as Claude Desktop, VS Code, or another client) connected to the Instana MCP Server. When you request information about Instana alerts, the following process occurs:

The MCP client retrieves the list of available tools from the Instana MCP server
Your query is sent to the LLM along with tool descriptions
The LLM analyzes the available tools and selects the appropriate one(s) for retrieving Instana alerts
The client executes the chosen tool(s) through the Instana MCP server
Results (latest alerts) are returned to the LLM
The LLM formulates a natural language response
The response is displayed to you

sequenceDiagram
    participant User
    participant ChatBot as MCP Host
    participant MCPClient as MCP Client
    participant MCPServer as Instana MCP Server
    participant LLM
    participant Instana as Instana Instance

    ChatBot->>MCPClient: Load available tools from MCP Server
    MCPClient->>MCPServer: Request available tool list
    MCPServer->>MCPClient: Return list of available tools
    User->>ChatBot: Ask "Show me the latest alerts from Instana for application robot-shop"
    ChatBot->>MCPClient: Forward query
    MCPClient->>LLM: Send query and tool description
    LLM->>MCPClient: Select appropriate tool(s) for Instana alert query
    MCPClient->>MCPServer: Execute selected tool(s)
    MCPServer->>Instana: Retrieve alerts for application robot-shop
    MCPServer->>MCPClient: Send alerts of Instana result
    MCPClient->>LLM: Forward alerts of Instana
    LLM->>ChatBot: Generate natural language response for Instana alerts
    ChatBot->>User: Show Instana alert response

Prerequisites

python - version 3.10 or higher
pip - version 21.3 or higher (only required for pypi based installation)
uv - version 0.11.6 or higher (only required for development installation)

Installing Instana MCP server

Option 1: Install from PyPI (Recommended)

The easiest way to use mcp-instana is to install it directly from PyPI:

pip install mcp-instana

After installation, you can run the server using the mcp-instana command directly.

Option 2: Development Installation

For development or local customization, you can clone and set up the project locally.

Installing uv

This project uses uv, a fast Python package installer and resolver. To install uv, you have several options:

Using pip:

pip install uv

Using Homebrew (macOS):

brew install uv

For more installation options and detailed instructions, visit the uv documentation.

Setting Up the Environment

After installing uv, set up the project environment by running:

uv sync

Header-Based Authentication for Streamable HTTP Mode

When using Streamable HTTP mode, you must pass Instana credentials via HTTP headers. This approach enhances security and flexibility by:

Avoiding credential storage in environment variables
Enabling the use of different credentials for different requests
Supporting shared environments where environment variable modification is restricted
Supporting both API token and session-based authentication

Supported Authentication Modes:

1. API Token Authentication (Direct API Calls)

Required Headers:

instana-base-url: Your Instana instance URL
instana-api-token: Your Instana API token

Example:

--header "instana-base-url: https://your-instance.instana.io"
--header "instana-api-token: your-api-token"

2. Session Token Authentication (UI-Initiated Calls)

Required Headers:

instana-base-url: Your Instana instance URL
instana-auth-token: Session authentication token from UI backend
instana-csrf-token: CSRF token from UI backend
instana-cookie-name: (Optional) Cookie name for session auth (default: instanaAuthToken)

Example:

--header "instana-base-url: https://your-instance.instana.io"
--header "instana-auth-token: your-session-token"
--header "instana-csrf-token: your-csrf-token"
--header "instana-cookie-name: in-token"

3. JWT Token Authentication (IBM Platform Integration)

Required Headers:

instana-base-url: Your Instana instance URL
instana-jwt-token: JWT token from IBM Platform
instana-csrf-token: CSRF token for request validation

Example Configuration:

{
  "mcpServers": {
    "Instana MCP Server": {
      "command": "npx",
      "args": [
        "mcp-remote",
        "http://0.0.0.0:8080/mcp",
        "--allow-http",
        "--header",
        "instana-base-url: https://your-instana-instance.instana.io",
        "--header",
        "instana-jwt-token: your_jwt_token_here",
        "--header",
        "instana-csrf-token: your_csrf_token_here"
      ]
    }
  }
}

Authentication Priority:

JWT Token (if provided with CSRF token) - Takes precedence for IBM Platform integration
Session Tokens (if both auth_token and csrf_token provided)
API Token (if provided) - Standard authentication
Environment Variable (INSTANA_API_TOKEN) - Fallback

Authentication Flow:

HTTP headers must be present in each request
Server validates credentials based on priority order
Requests without valid authentication will fail

This design ensures secure credential transmission and supports multiple authentication flows including UI-initiated calls via WebSocket → Coordinator → MCP Server.

Ensure that the token used has the necessary permissions to invoke MCP tools. Check here for more information.

Starting the Local MCP Server

Before configuring any MCP client (Claude Desktop, GitHub Copilot, or custom MCP clients), you need to start the local MCP server. The server supports two transport modes: Streamable HTTP and Stdio.

Server Command Options

Using the CLI (PyPI Installation)

If you installed mcp-instana from PyPI, use the mcp-instana command:

mcp-instana [OPTIONS]

Using Development Installation

For local development, use the uv run command:

uv run src/core/server.py [OPTIONS]

Available Options:

--transport <mode>: Transport mode (choices: streamable-http, stdio)
--env KEY=VALUE: Set environment variable (can be repeated for multiple variables, e.g., --env INSTANA_BASE_URL=https://... --env INSTANA_API_TOKEN=...)
--debug: Enable debug mode with additional logging
--log-level <level>: Set the logging level (choices: DEBUG, INFO, WARNING, ERROR, CRITICAL)
--tools <categories>: Comma-separated list of tool categories to enable (e.g., infra,app,events,website). Enabling a category will also enable its related prompts. For example: --tools infra enables the infra tools and all infra-related prompts.
--list-tools: List all available tool categories and exit
--port <port>: MCP server port (default: 8080, can be overridden with PORT env var)
--verify-ssl [BOOL]: Enable or disable SSL certificate verification for outgoing Instana API calls (default: true). Pass false/0/noto disable. Equivalent to settingINSTANA_SSL_VERIFY=false`.
--help: Show help message and exit

Starting in Streamable HTTP Mode

Streamable HTTP mode provides a REST API interface and is recommended for most use cases.

Using CLI (PyPI Installation)

# Start with all tools enabled (default)
mcp-instana --transport streamable-http

# Start with debug logging
mcp-instana --transport streamable-http --debug

# Start with a specific log level
mcp-instana --transport streamable-http --log-level WARNING

# Start with specific tool categories only
mcp-instana --transport streamable-http --tools infra,events

# Combine options (specific log level, custom tools)
mcp-instana --transport streamable-http --log-level DEBUG --tools app,events

Using Development Installation

# Start with all tools enabled (default)
uv run src/core/server.py --transport streamable-http

# Start with debug logging
uv run src/core/server.py --transport streamable-http --debug

# Start with a specific log level
uv run src/core/server.py --transport streamable-http --log-level WARNING

# Start with specific tool and prompts categories only
uv run src/core/server.py --transport streamable-http --tools infra,events

# Start with custom port
uv run src/core/server.py --transport streamable-http --port 9000

# Combine options (specific log level, custom tools and prompts)
uv run src/core/server.py --transport streamable-http --log-level DEBUG --tools app,events

Key Features of Streamable HTTP Mode:

Uses HTTP headers for authentication (no environment variables needed)
Supports different credentials per request
Better suited for shared environments
MCP server default port: 8080
MCP endpoint: http://0.0.0.0:8080/mcp/

Starting in Stdio Mode

Stdio mode uses standard input/output for communication and requires environment variables for authentication.

Using CLI (PyPI Installation)

# Option 1: Set environment variables first
export INSTANA_BASE_URL="https://your-instana-instance.instana.io"
export INSTANA_API_TOKEN="your_instana_api_token"

# Start the server (stdio is the default if no transport specified)
mcp-instana

# Or explicitly specify stdio mode
mcp-instana --transport stdio

# Option 2: Pass the base url and api token directly
mcp-instana --base-url https://your-instana-instance.instana.io --api-token your_instana_api_token

# Or with explicit stdio mode
mcp-instana --transport stdio --base-url https://your-instana-instance.instana.io --api-token your_instana_api_token

Using Development Installation

# Option 1: Set environment variables first
export INSTANA_BASE_URL="https://your-instana-instance.instana.io"
export INSTANA_API_TOKEN="your_instana_api_token"

# Start the server (stdio is the default if no transport specified)
uv run src/core/server.py

# Or explicitly specify stdio mode
uv run src/core/server.py --transport stdio

# Option 2: Pass the base url and api token directly
uv run src/core/server.py --base-url https://your-instana-instance.instana.io --api-token your_instana_api_token

# Or with explicit stdio mode
uv run src/core/server.py --transport stdio --base-url https://your-instana-instance.instana.io --api-token your_instana_api_token

Key Features of Stdio Mode:

Uses environment variables for authentication (can be set via export or --env flags)
Direct communication via stdin/stdout
Required for certain MCP client configurations
The --api-token and base-url flags provides a convenient way to set credentials without modifying shell environment

Tool Categories

You can optimize server performance by enabling only the tools and prompts categories you need:

Using CLI (PyPI Installation)

# List all available categories
mcp-instana --list-tools

# Enable specific categories
mcp-instana --transport streamable-http --tools infra,app
mcp-instana --transport streamable-http --tools events

Using Development Installation

# List all available categories
uv run src/core/server.py --list-tools

# Enable specific categories
uv run src/core/server.py --transport streamable-http --tools infra,app
uv run src/core/server.py --transport streamable-http --tools events

SSL Certificate Verification

SSL certificate verification for outgoing Instana API calls is enabled by default. This applies to both Streamable HTTP and Stdio transport modes.

To disable SSL certificate verification (e.g. for environments with self-signed or internal certificates), use the --verify-ssl CLI option, the INSTANA_SSL_VERIFY environment variable, or the sslVerify key in config.yaml.

Using the CLI option

# Disable SSL verification
uv run src/core/server.py --verify-ssl false

# Explicitly enable (default behaviour, no flag needed)
uv run src/core/server.py --verify-ssl true

Using the environment variable

export INSTANA_SSL_VERIFY=false
uv run src/core/server.py

SSL verification is disabled when INSTANA_SSL_VERIFY is set to 0, false, or no (case-insensitive). Any other value, or when the variable is unset, keeps verification enabled.

Using config.yaml (SaaS / Kubernetes deployments)

# SSL verification for outbound API calls (default: true)
sslVerify: false

The sslVerify key is read by start.sh at startup and exported as INSTANA_SSL_VERIFY.

Using a custom CA bundle

When SSL verification is enabled, the system CA bundle is used by default. To use a custom CA certificate bundle, set INSTANA_CA_BUNDLE:

export INSTANA_SSL_VERIFY=true
export INSTANA_CA_BUNDLE=/path/to/ca-bundle.crt
uv run src/core/server.py

INSTANA_CA_BUNDLE is only used when SSL certificate verification is enabled.

The server logs the effective SSL verification state at startup, so you can immediately confirm whether your environment variable, CLI flag, or config file setting was picked up.

API Call Timeout

Every outgoing Instana API call is subject to a hard wall-clock timeout. If the Instana server does not respond within the deadline the call is cancelled and an error is returned immediately — no indefinitely hanging requests.

The default timeout is 180 seconds. Override it with the INSTANA_API_TIMEOUT environment variable:

export INSTANA_API_TIMEOUT=60   # 60-second deadline
uv run src/core/server.py

INSTANA_API_TIMEOUT must be a positive integer (seconds). Non-integer or non-positive values are ignored and the 180-second default is used instead.

Catalog Response Caching

The server caches catalog API responses (metrics, tags, and plugins) in-process to eliminate redundant round-trips. Catalog data is stable within a tenant — it only changes when new integrations are deployed — so responses are safe to reuse across the lifetime of a single server process.

Default TTL: 30 minutes. Each unique combination of tenant URL, method, and parameters gets its own independent cache slot. Error responses are never cached, so a transient network failure cannot poison the store.

Cached catalog operations

Domain	Operation	Cache key discriminators
Application	Get metric catalog	—
Application	Get tag catalog	`use_case`, `data_source`
Website	Get metrics catalog	—
Website	Get tag catalog	`beacon_type`, `use_case`
Mobile App	Get metric catalog	—
Mobile App	Get tag catalog	`beacon_type`, `use_case`
Synthetic	Get metrics catalog	—
Synthetic	Get tag catalog	`use_case`
Infrastructure	Get metrics catalog	`plugin`, `filter`
Infrastructure	Get tag catalog	`plugin`

Configuring caching (stdio mode)

Set environment variables before starting the server. In stdio mode these are the only values used — no restart is required when using Bob, as the server reboots automatically.

# Disable caching entirely
export INSTANA_CACHE_ENABLED=false
# Override TTL to 5 minutes (default: 1800)
export INSTANA_CACHE_TTL=300

INSTANA_CACHE_ENABLED is treated as disabled when set to false, 0, or no (case-insensitive). Any other value keeps caching enabled.

Configuring caching (streamable-http mode)

In addition to the environment variables above, every HTTP request can override the cache settings via headers. Per-request headers take precedence over the process-level defaults, so caching can be toggled on or off without restarting the server.

instana-cache-enabled: false
instana-cache-ttl: 300

To set cache headers persistently in your MCP client config (e.g. .bob/mcp.json for streamable-http mode), add them alongside the existing Instana headers:

{
  "mcpServers": {
    "Instana MCP Server": {
      "url": "http://localhost:8080/mcp",
      "headers": {
        "instana-base-url": "https://your-instana-instance.example.com",
        "instana-api-token": "YOUR_API_TOKEN",
        "instana-cache-enabled": "true",
        "instana-cache-ttl": "1800"
      }
    }
  }
}

To disable caching for a specific client connection:

{
  "mcpServers": {
    "Instana MCP Server": {
      "url": "http://localhost:8080/mcp",
      "headers": {
        "instana-base-url": "https://your-instana-instance.example.com",
        "instana-api-token": "YOUR_API_TOKEN",
        "instana-cache-enabled": "false"
      }
    }
  }
}

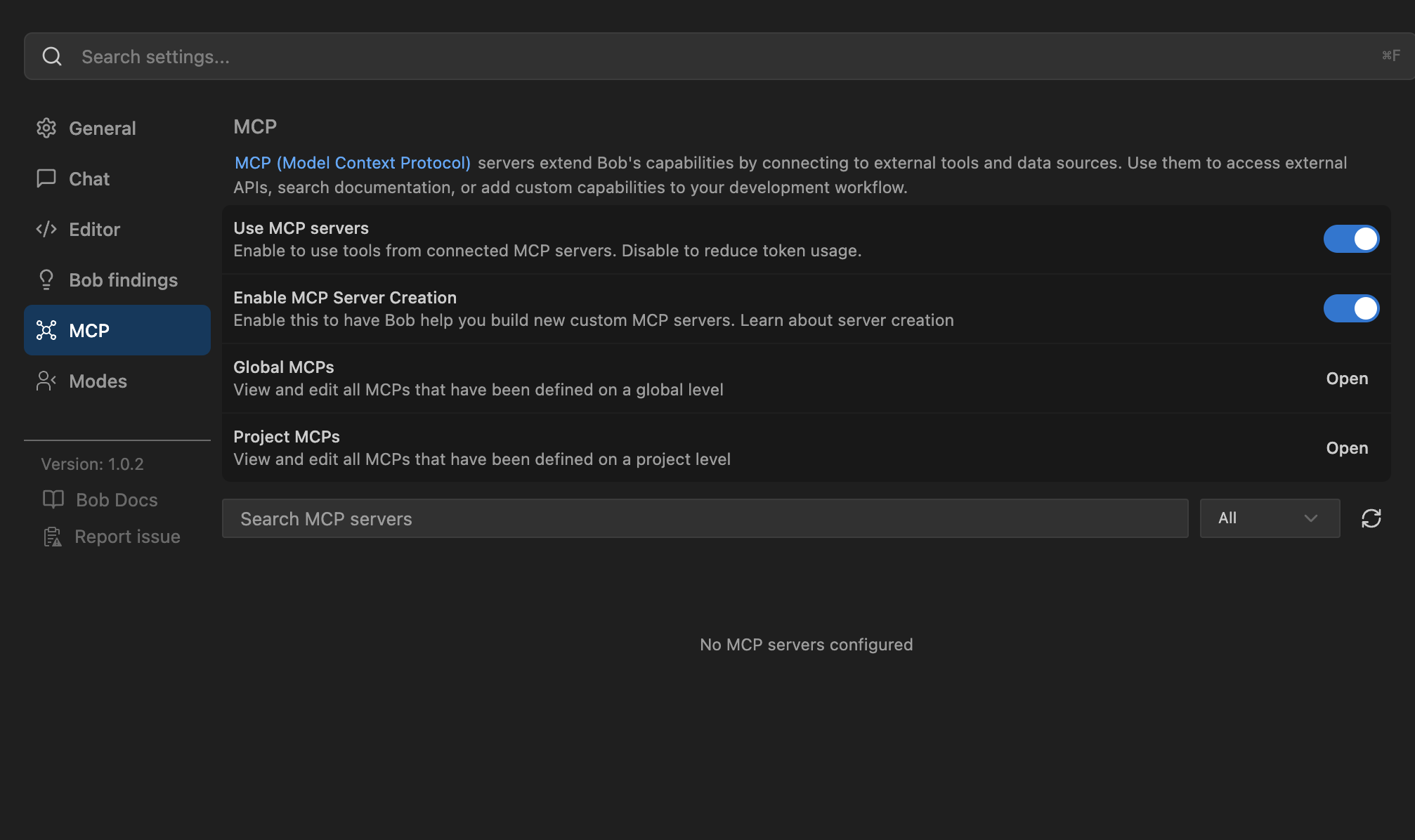

Using .bob/mcp.json (stdio mode)

To set cache configuration persistently for Bob, add the env vars to the env block in .bob/mcp.json:

{
  "mcpServers": {
    "instana": {
      "env": {
        "INSTANA_CACHE_ENABLED": "true",
        "INSTANA_CACHE_TTL": "1800"
      }
    }
  }
}

The server logs the effective cache state at DEBUG level on every catalog call, showing whether a response was a cache HIT or MISS.

Verifying Server Status

Once started, you can verify the server is running:

For Streamable HTTP mode:

# Check MCP server
curl http://0.0.0.0:8080/mcp/

# Or with custom port
curl http://0.0.0.0:9000/mcp/

For Stdio mode: The server will start and wait for stdin input from MCP clients.

Common Startup Issues

SSL / Certificate Issues: See the SSL Certificate Verification section above for configuration options. If you encounter SSL errors with verification enabled and are using macOS, ensure your Python environment has access to system certificates:

# macOS - Install certificates for Python
/Applications/Python\ 3.13/Install\ Certificates.command

Port Already in Use: If port 8080 is already in use, specify a different port:

uv run src/core/server.py --transport streamable-http --port 9000

Missing Dependencies: Ensure all dependencies are installed:

uv sync

Setup and Usage

Supported MCP Clients

Client	Transports
Bob IDE	`streamable http`, `stdio`
Bob CLI	`streamable http`, `stdio`
Claude Desktop	`streamable http`, `stdio`
Kiro IDE	`streamable http`, `stdio`
Kiro CLI	`streamable http`, `stdio`
Github Copilot	`streamable http`, `stdio`
Copilot CLI	`streamable http`, `stdio`
Mistral AI	`streamable http`

Connecting to Multiple Instana MCP Servers

You can configure your MCP client to connect to multiple instances. Below is a sample configuration:

{
  "mcpServers": {
    "Instana MCP Server1": {
      "command": "npx",
      "args": [
        "mcp-remote",
        "http://0.0.0.0:8080/mcp/",
        "--allow-http",
        "--header",
        "instana-base-url: ENV1_INSTANA_URL",
        "--header",
        "instana-api-token: ENV1_INSTANA_API_TOKEN"
      ]
    },
    "Instana MCP Server2": {
      "command": "npx",
      "args": [
        "mcp-remote",
        "http://0.0.0.0:8080/mcp/",
        "--allow-http",
        "--header",
        "instana-base-url: ENV2_INSTANA_URL",
        "--header",
        "instana-api-token: ENV2_INSTANA_API_TOKEN"
      ]
    }
  }
}

To target a specific server, ensure that:

The server is configured with the appropriate environment name in the MCP configuration (e.g. Instana MCP Server1)
The prompt explicitly mentions the server/environment name.

The request will then be routed to the corresponding configured server. If no server/environment is explicitly mentioned in the prompt, MCP uses the first server defined in the configuration as the default server.

Note: If the requested server is down or unreachable, MCP behaves as expected and forwards the API failure. The user will receive the corresponding error returned by the API, indicating that the server is unavailable. MCP relies on the underlying API availability and does not perform automatic failover.

Available Tools

Tool	Category	Description
`manage_applications`	Application & Infrastructure	Unified tool for managing application metrics, alert configs, settings, and catalog
`manage_websites`	Website Monitoring	Unified smart router for website analyze, catalog, configuration, and advanced config operations
`manage_custom_dashboards`	Custom Dashboards	Unified tool for managing custom dashboard CRUD operations
`manage_infrastructure`	Infrastructure	Unified smart router for infrastructure analyze, catalog (`get_plugin_schema`), smart alert configurations and snapshot resource operations
`manage_automation`	Automation	Unified smart router for automation: browse action catalog and view execution history
`manage_events`	Events	Unified smart router for events monitoring: get event by ID, get events by IDs, Kubernetes events, agent monitoring events and all events
`manage_slo`	SLO Management	Unified smart router for SLO configurations, reports, alerts, and correction windows with intelligent timezone handling
`manage_releases`	Release Management	Unified smart router for release tracking: list releases with pagination and name filtering, get release details, create/update/delete releases with timezone support
`manage_maintenance_windows`	Maintenance Windows	Unified smart router for maintenance window lifecycle management: create, modify, close, and list maintenance windows with template support and ServiceNow integration
`manage_mobile_apps`	Mobile App Monitoring	Unified smart router for mobile app monitoring: analyze beacons, performance metrics, session replay, configuration, and alert management
`manage_synthetics`	Synthetic Monitoring	Unified smart router for synthetic monitoring: catalog, metrics, settings (read-only), and test playback results

For detailed tool documentation, capabilities, and technical reference, see Tools & Examples

Tool Filtering

The MCP server supports selective tool loading to optimize performance and reduce resource usage. You can enable only the tool categories you need for your specific use case.

Usage Examples

Using CLI (PyPI Installation)

# Enable only application monitoring tools
mcp-instana --tools app --transport streamable-http

# Enable only infrastructure analysis tools
mcp-instana --tools infra --transport streamable-http

# Enable application and infrastructure tools
mcp-instana --tools app,infra --transport streamable-http

# Enable events and website tools
mcp-instana --tools events,website --transport streamable-http

# Enable settings (custom dashboards) and app tools
mcp-instana --tools settings,app --transport streamable-http

# Enable releases and events tools
mcp-instana --tools releases,events --transport streamable-http

# Enable maintenance window and events tools
mcp-instana --tools maintenance,events --transport streamable-http

# Enable automation and app tools
mcp-instana --tools automation,app --transport streamable-http

# Enable SLO management tools
mcp-instana --tools slo --transport streamable-http

# Enable synthetic monitoring tools
mcp-instana --tools synthetic --transport streamable-http

# Enable mobile app monitoring tools
mcp-instana --tools mobile_app --transport streamable-http

# Enable all tools (default behavior)
mcp-instana --transport streamable-http

# List all available tool categories and their tools
mcp-instana --list-tools

Using Development Installation

# Enable only application monitoring tools
uv run src/core/server.py --tools app --transport streamable-http

# Enable only infrastructure analysis tools
uv run src/core/server.py --tools infra --transport streamable-http

# Enable application and infrastructure tools
uv run src/core/server.py --tools app,infra --transport streamable-http

# Enable events and website tools
uv run src/core/server.py --tools events,website --transport streamable-http

# Enable settings (custom dashboards) and app tools
uv run src/core/server.py --tools settings,app --transport streamable-http

# Enable releases and events tools
uv run src/core/server.py --tools releases,events --transport streamable-http

# Enable maintenance window and events tools
uv run src/core/server.py --tools maintenance,events --transport streamable-http

# Enable automation and app tools
uv run src/core/server.py --tools automation,app --transport streamable-http

# Enable SLO management tools
uv run src/core/server.py --tools slo --transport streamable-http

# Enable synthetic monitoring tools
uv run src/core/server.py --tools synthetic --transport streamable-http

# Enable mobile app monitoring tools
uv run src/core/server.py --tools mobile_app --transport streamable-http

# Enable all tools (default behavior)
uv run src/core/server.py --transport streamable-http

# List all available tool categories and their tools
uv run src/core/server.py --list-tools

Benefits of Tool Filtering

Performance: Reduced startup time and memory usage
Security: Limit exposure to only necessary APIs
Clarity: Focus on specific use cases (e.g., only infrastructure monitoring)
Resource Efficiency: Lower CPU and network usage

For usage examples and prompts, see Example Prompts

Docker Deployment

The MCP Instana server can be deployed using Docker for production environments. The Docker setup is optimized for security, performance, and minimal resource usage.

Building the Docker Image

Prerequisites

Docker installed and running
Access to the project source code

Build and Run

# Ensure you are in the mcp-instana directory of your repo
# Build the optimized production image
docker build -t mcp-instana:latest .

The above command would build the image using the instructions in the Dockerfile. The default port is 8080 and transport mode is streamable-http

# Run the container (credentials are supplied via HTTP headers at request time)
docker run -p 8080:8080 mcp-instana

If you want to use a custom port on your host (ex: 9000)

# Run with a custom host port
docker run -p 9000:8080 mcp-instana

Connecting to mcp-instana container in streamable mode

Assuming your started your container using the command: docker run -p 8080:8080 mcp-instana

Your MCP Client would connect to the Host port (8080). By default, the container runs in streamable mode.

Here is a sample configuration for your MCP client:

{
  "mcpServers": {
    "Instana MCP Server": {
      "command": "npx",
      "args": [
        "mcp-remote",
        "http://localhost:8080/mcp",
        "--allow-http",
        "--header",
        "instana-base-url: https://your-instana-instance.instana.io",
        "--header",
            "instana-api-token: your_instana_api_token"
      ]
    }
  }
}

Connecting to mcp-instana in stdio mode

In stdio mode, you can have your MCP Client to start and connect to the container. Here you are explicitly specifying to run in stdio by providing a value for the --transport flag.

Below is a sample configuration:

{
  "mcpServers": {
    "Instana MCP Server": {
      "command": "docker",
      "args": [
        "run", "-i", "--rm",
        "-e", "INSTANA_API_TOKEN=your_instana_api_token",
        "-e", "INSTANA_BASE_URL=https://your-instana-instance.instana.io",
        "mcp-instana",
        "--transport", "stdio"
      ]
    }
  }
}

For more details, check the Docker deployment guide here

For comprehensive Docker documentation including multi-architecture builds, .dockerignore, security best practices, and production deployment examples, see DOCKER.md.

General Issues

GitHub Copilot
- If you encounter issues with GitHub Copilot, try starting/stopping/restarting the server in the mcp.json file and keep only one server running at a time.
Certificate Issues
- If you encounter certificate issues, such as [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: unable to get local issuer certificate:
  - Check that you can reach the Instana API endpoint using curl or wget with SSL verification.
    - If that works, your Python environment may not be able to verify the certificate and might not have access to the same certificates as your shell or system. Ensure your Python environment uses system certificates (macOS). You can do this by installing certificates to Python: /Applications/Python\ 3.13/Install\ Certificates.command
  - If you cannot reach the endpoint with SSL verification, try without it. If that works, check your system's CA certificates and ensure they are up-to-date.

IBM Instana MCP Server

What can you do with IBM Instana MCP?

Documentation

Table of Contents

MCP Server for IBM Instana

Quick Links

Architecture Overview

Workflow

Prerequisites

Installing Instana MCP server

Option 1: Install from PyPI (Recommended)

Option 2: Development Installation

Installing uv

Setting Up the Environment

Header-Based Authentication for Streamable HTTP Mode

1. API Token Authentication (Direct API Calls)

2. Session Token Authentication (UI-Initiated Calls)

3. JWT Token Authentication (IBM Platform Integration)

Starting the Local MCP Server

Server Command Options

Using the CLI (PyPI Installation)

Using Development Installation

Starting in Streamable HTTP Mode

Using CLI (PyPI Installation)

Using Development Installation

Starting in Stdio Mode

Using CLI (PyPI Installation)

Using Development Installation

Tool Categories

Using CLI (PyPI Installation)

Using Development Installation

SSL Certificate Verification

Using the CLI option

Using the environment variable

Using config.yaml (SaaS / Kubernetes deployments)

Using a custom CA bundle

API Call Timeout

Catalog Response Caching

Cached catalog operations

Configuring caching (stdio mode)

Configuring caching (streamable-http mode)

Using .bob/mcp.json (stdio mode)

Verifying Server Status

Common Startup Issues

Setup and Usage

Supported MCP Clients

Connecting to Multiple Instana MCP Servers

Available Tools

Tool Filtering

Usage Examples

Using CLI (PyPI Installation)

Using Development Installation

Benefits of Tool Filtering

Docker Deployment

Building the Docker Image

Prerequisites

Build and Run

Connecting to mcp-instana container in streamable mode

Connecting to mcp-instana in stdio mode

General Issues
