GoPeak

GoPeak is an MCP server for Godot that lets AI assistants run, inspect, modify, and debug real projects end-to-end.

---

Quick Start (3 Minutes)

Requirements

• Godot 4.x
• Node.js 18+
• MCP-compatible client (Claude Desktop, Cursor, Cline, OpenCode, etc.)

1) Run GoPeak

npx -y gopeak

or install globally:

npm install -g gopeak
gopeak

2) Add MCP client config

{
  "mcpServers": {
    "godot": {
      "command": "npx",
      "args": ["-y", "gopeak"],
      "env": {
        "GODOT_PATH": "/path/to/godot",
        "GOPEAK_TOOL_PROFILE": "compact"
      }
    }
  }
}

GOPEAK_TOOL_PROFILE=compact is the default. It keeps prompt/tool-list token usage low while preserving access to the full toolset via catalog discovery.

3) First prompts to try

• "List Godot projects in /your/projects and show project info."
• "Create scenes/Player.tscn with CharacterBody2D root and add a movement script."
• "Run project, get debug output, then fix top error."

---

Why GoPeak

• Real project feedback loop: run the game, inspect logs, and fix in-context.
• 95+ tools available across scene/script/resource/runtime/LSP/DAP/input/assets.
• Token-efficient by default: compact tool surface for lower context overhead.
• Discoverability built-in: use tool.catalog (alias of tool_catalog) to find hidden or legacy tools by keyword.
• Deep Godot integration: ClassDB queries, runtime inspection, debugger hooks, bridge-based scene/resource edits.

Best For

• Solo/indie developers moving quickly with AI assistance
• Teams that need AI grounded in actual project/runtime state
• Debug-heavy workflows (breakpoints, stack traces, live runtime checks)

---

Tool Surface Model (Important)

GoPeak supports three exposure profiles:

• compact (default): exposes a curated alias set (about 20 core tools)
• full: exposes full legacy tool list (95+)
• legacy: same exposed behavior as full

Configure with either:

• GOPEAK_TOOL_PROFILE
• MCP_TOOL_PROFILE (fallback alias)

How to discover hidden tools in compact mode

Call:

• tool.catalog (compact alias)
• tool_catalog (legacy name)

Example intent:

"Use tool.catalog with query animation and show relevant tools."

This lets assistants start with a small, efficient default surface but still find and use the full capability set when needed.

---

Installation Options

A) Recommended: npx

npx -y gopeak

B) Global install

npm install -g gopeak
gopeak

C) From source

git clone https://github.com/HaD0Yun/godot-mcp.git
cd godot-mcp
npm install
npm run build
node build/index.js

GoPeak also exposes two CLI bin names:

• gopeak
• godot-mcp

---

Addons (Recommended)

Auto Reload + Runtime Addon installer

Install in your Godot project folder:

curl -sL https://raw.githubusercontent.com/HaD0Yun/godot-mcp/main/install-addon.sh | bash

PowerShell:

iwr https://raw.githubusercontent.com/HaD0Yun/godot-mcp/main/install-addon.ps1 -UseBasicParsing | iex

Then enable plugin in Project Settings → Plugins.

---

Core Capabilities

• Project control: launch editor, run/stop project, capture debug output
• Scene editing: create scenes, add/delete/reparent nodes, edit properties
• Script workflows: create/modify scripts, inspect script structure
• Resources: create/modify resources, materials, shaders, tilesets
• Signals/animation: connect signals, build animations/tracks/state machines
• Runtime tools: inspect live tree, set properties, call methods, metrics
• LSP + DAP: diagnostics/completion/hover + breakpoints/step/stack trace
• Input + screenshots: keyboard/mouse/action injection and viewport capture
• Asset library: search/fetch CC0 assets (Poly Haven, AmbientCG, Kenney)

Tool families (examples)

Area	Examples
Project	project.list, project.info, editor.run
Scene/Node	scene.create, scene.node.add, set_node_properties
Script	script.create, script.modify, script.info
Runtime	runtime.status, inspect_runtime_tree, call_runtime_method
LSP/DAP	lsp.diagnostics, lsp_get_hover, dap_set_breakpoint, dap.output
Input/Visual	inject_key, inject_mouse_click, capture_screenshot

---

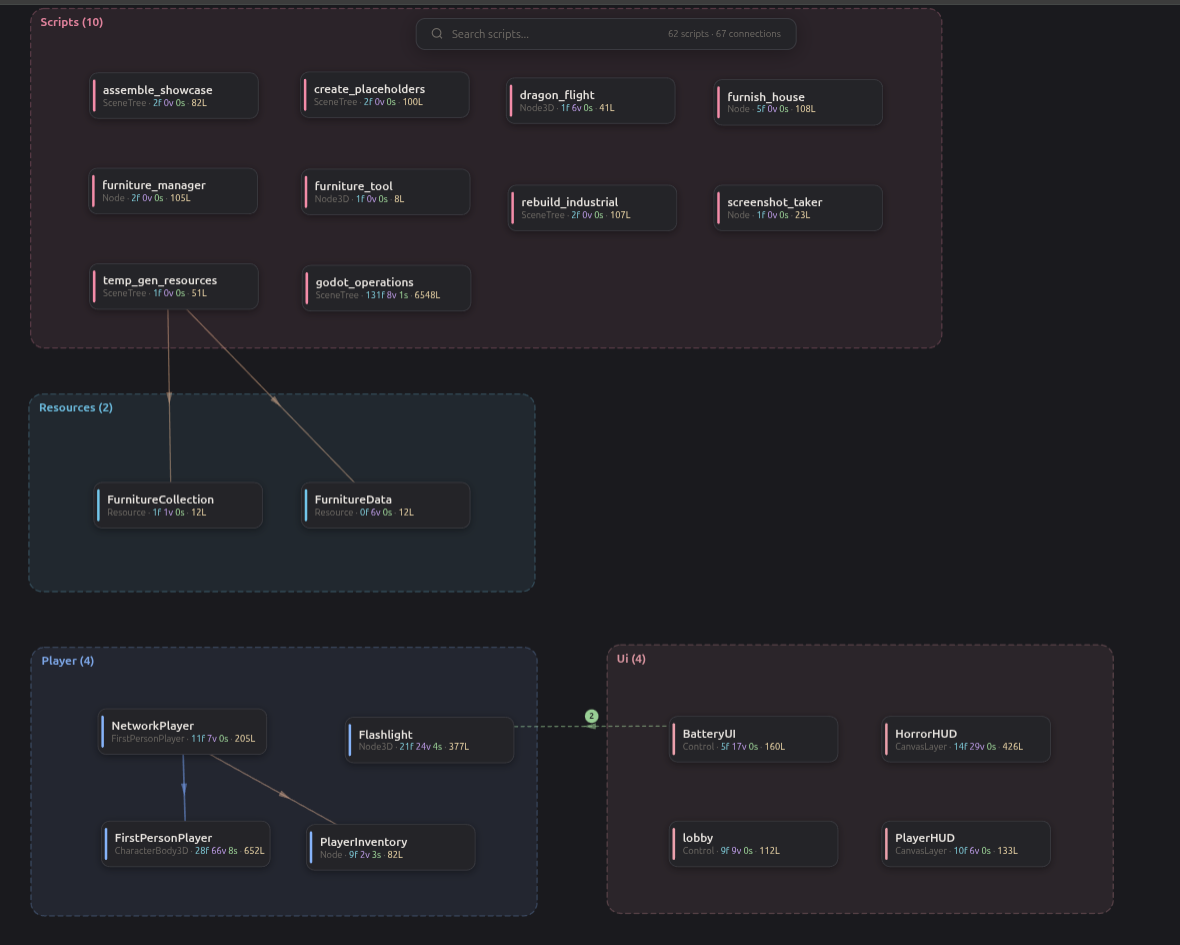

Project Visualizer

Visualize your entire project architecture with visualizer.map (map_project legacy). Scripts are grouped by folder structure into color-coded categories.

---

Quick Prompt Examples

Build

• "Create a Player scene with CharacterBody2D, Sprite2D, CollisionShape2D, and a basic movement script."
• "Add an enemy spawner scene and wire spawn signals to GameManager."

Debug

• "Run the project, collect errors, and fix the top 3 issues automatically."
• "Set a breakpoint at scripts/player.gd:42, continue execution, and show stack trace when hit."

Runtime testing

• "Press ui_accept, move mouse to (400, 300), click, then capture a screenshot."
• "Inspect live scene tree and report nodes with missing scripts or invalid references."

Discovery in compact mode

• "Use tool.catalog with query tilemap and list the most relevant tools."
• "Find import pipeline tools with tool.catalog query import and run the best one for texture settings."

---

Technical Reference

Environment variables

Name	Purpose	Default
GOPEAK_TOOL_PROFILE	Tool exposure profile: compact, full, legacy	compact
MCP_TOOL_PROFILE	Fallback profile env alias	compact
GODOT_PATH	Explicit Godot executable path	auto-detect
DEBUG	Enable server debug logs (true/false)	false
LOG_MODE	Recording mode: lite or full	lite

Ports

Port	Service
6505	Unified Godot Bridge + Visualizer server (+ /health, /mcp)
6005	Godot LSP
6006	Godot DAP
7777	Runtime addon command socket (only needed for runtime tools)

Minimal port profiles

• Core editing only: 6505
• Core + runtime actions (screenshots/input/runtime inspect): 6505 + 7777
• Full debugging + diagnostics: 6505 + 6005 + 6006 + 7777

---

Troubleshooting

• Godot not found → set GODOT_PATH
• No MCP tools visible → restart your MCP client
• Project path invalid → confirm project.godot exists
• Runtime tools not working → install/enable runtime addon plugin
• Need a tool that is not visible → run tool.catalog and search by capability keyword

---

Docs & Project Links

• CHANGELOG
• ROADMAP
• CONTRIBUTING

---

License

MIT — see LICENSE.

Credits

• Original MCP server by Coding-Solo
• GoPeak enhancements by HaD0Yun
• Project visualizer inspired by tomyud1/godot-mcp
