PostgreSQL MCP Server

Transforms PostgreSQL databases from "I have tables and I don't know what they do" into "I understand the entire database structure, relationships, and best practices"

Overview

This is an MCP (Model Context Protocol) server that provides intelligent analysis, documentation, and complete CRUD operations for PostgreSQL databases. It combines deterministic schema extraction with AI-powered reasoning and secure data manipulation operations to help users and AI agents understand and interact with complex database structures.

Performance Optimized & Extended: Started at 38 tools, optimized to 19 tools (~50% reduction), then strategically extended to 27 tools with high-value query optimization, data management, transactions, and monitoring capabilities.

Key Features

Comprehensive Coverage: 27 carefully designed tools covering all PostgreSQL operations
Schema Extraction: Automatically extract tables, columns, relationships, and constraints
Intelligent Analysis: Detect junction tables, implicit relationships, and suggest optimal joins
AI-Powered Insights: Leverage Ollama/LLM to generate business explanations and recommendations
Complete CRUD Operations: Unified tools for all data manipulation with SQL injection prevention
Query Optimization: Execution plan analysis, combined index analysis (suggest + unused detection)
Data Management: Import/export (CSV/JSON/SQL), full-text search
Transaction Support: Atomic multi-operation transactions with rollback
Monitoring: Database statistics, cache metrics, slow queries, connection tracking
Multiple Output Formats:
- Mermaid ER diagrams (with SVG rendering)
- Mermaid relationship flowcharts (with SVG rendering)
- Comprehensive Markdown documentation
- Visual diagram files (SVG, PNG, PDF)
Query Assistance: Smart join type recommendations (INNER vs LEFT)
Modular Architecture: Clean, extensible design organized by capability
Diagram Rendering: Auto-generate visual database structure diagrams
Security: Parameterized queries, input validation, SQL injection prevention

Tool Evolution

Phase 1-2 (Core): 19 tools - Foundation CRUD + Schema + Analysis
Phase 3-6 (Extended): +8 tools - Query optimization, data management, transactions, monitoring
Result: 27 highly strategic tools that cover real-world PostgreSQL operations

Project Structure

PostgreSQL-MCP/
├── src/
│   ├── __init__.py               # Package initialization
│   ├── config.py                 # Configuration management (DB, Ollama, App)
│   ├── database/
│   │   ├── __init__.py
│   │   └── connection.py         # PostgreSQL connection utilities
│   ├── schema/
│   │   ├── __init__.py
│   │   └── extractor.py          # Schema extraction logic
│   ├── analysis/
│   │   ├── __init__.py
│   │   └── detector.py           # Junction table & relationship detection
│   ├── generation/
│   │   ├── __init__.py
│   │   ├── mermaid_gen.py        # ER diagram generation
│   │   ├── markdown_gen.py       # Documentation generation
│   │   └── diagram_renderer.py   # SVG diagram rendering
│   ├── llm/
│   │   ├── __init__.py
│   │   └── ollama_client.py      # Ollama/LLM integration
│   ├── crud/
│   │   ├── __init__.py           # CRUD operations export
│   │   ├── crud_manager.py       # Core CRUD operations (20 operations)
│   │   └── crud_validator.py     # Input validation & security
│   ├── schema_mod/
│   │   ├── __init__.py           # Schema modification export
│   │   ├── mod_manager.py        # Schema alteration operations
│   │   └── mod_validator.py      # Schema modification validation
│   ├── query/                    # NEW - Phase 3A
│   │   ├── __init__.py
│   │   └── query_optimizer.py    # Query analysis & optimization
│   ├── data/                     # NEW - Phase 4A & 4B
│   │   ├── __init__.py
│   │   └── data_manager.py       # Import/export & data quality
│   ├── transaction/              # NEW - Phase 5A
│   │   ├── __init__.py
│   │   └── transaction_manager.py # Transactions & backups
│   └── monitoring/               # NEW - Phase 6A
│       ├── __init__.py
│       └── monitor.py            # Database statistics & monitoring
├── postgresql_server.py          # MCP server with all 27 tools exposed
├── client.py                     # MCP client for testing
├── main.py                       # Entry point placeholder
├── pyproject.toml               # Python project configuration
├── .env                         # Environment variables (not in repo)
├── PHASE3-6_RECOMMENDATIONS.md  # Design rationale for new tools
├── PHASE3-6_IMPLEMENTATION_SUMMARY.md # Implementation details
├── PHASE3-6_QUICK_REFERENCE.md  # Quick reference for new tools
└── README.md                    # This file

Module Breakdown

`config.py`

Centralized configuration for:

DatabaseConfig: PostgreSQL connection parameters
OllamaConfig: LLM (Ollama) settings
AppConfig: Application-level settings (logging, debug mode)

`src/database/connection.py`

get_connection(): Create PostgreSQL connections with pooling
Connection error handling and timeout management

`src/schema/extractor.py`

extract_schema(): Full schema extraction
get_table_info(): Single table details
get_tables_list(): List all tables
Handles all information_schema queries

`src/analysis/detector.py`

detect_junction_tables(): Find many-to-many association tables
suggest_joins(): Recommend JOIN types based on nullability
detect_implicit_relationships(): Find potential undeclared FKs (*_id columns)

`src/crud/crud_manager.py`

Core CRUD operations (20 total):

Create: Insert records, batch operations, create tables/views/indexes
Read: Query data, get records with filters, count, distinct values, pagination
Update: Update records, batch updates, rename tables/columns
Delete: Delete records, truncate, drop tables
All operations use parameterized queries to prevent SQL injection

`src/crud/crud_validator.py`

Security and validation layer:

validate_table_name(): Identifier format and reserved keyword checking
validate_column_name(): Column name validation
validate_column_type(): PostgreSQL data type validation
validate_where_clause(): SQL injection pattern detection
validate_values_dict(): Data structure validation
validate_primary_key(): Primary key constraint validation
validate_foreign_key(): Foreign key relationship validation

`src/generation/mermaid_gen.py`

generate_mermaid_erd(): Entity-Relationship Diagram in Mermaid syntax
generate_mermaid_flowchart(): Relationship flowchart visualization
Supports table relationships, constraints, and cardinality

`src/generation/diagram_renderer.py`

render_database_diagrams(): Convert Mermaid diagrams to visual formats
SVG rendering (recommended for API usage)
PNG/PDF support (requires mermaid-cli)

`src/generation/markdown_gen.py`

generate_markdown(): Full database documentation in Markdown
generate_table_documentation(): Single table documentation
Includes schema details, relationships, and constraints

`src/llm/ollama_client.py`

OllamaAnalyzer: Interface to Ollama LLM for AI analysis
explain_schema(): Get business-level database analysis
get_available_models(): List deployed LLM models
is_available(): Check Ollama service status

`src/query/query_optimizer.py` (NEW - Phase 3A)

Query performance analysis and optimization:

explain_query(): Get EXPLAIN/EXPLAIN ANALYZE output with execution plans

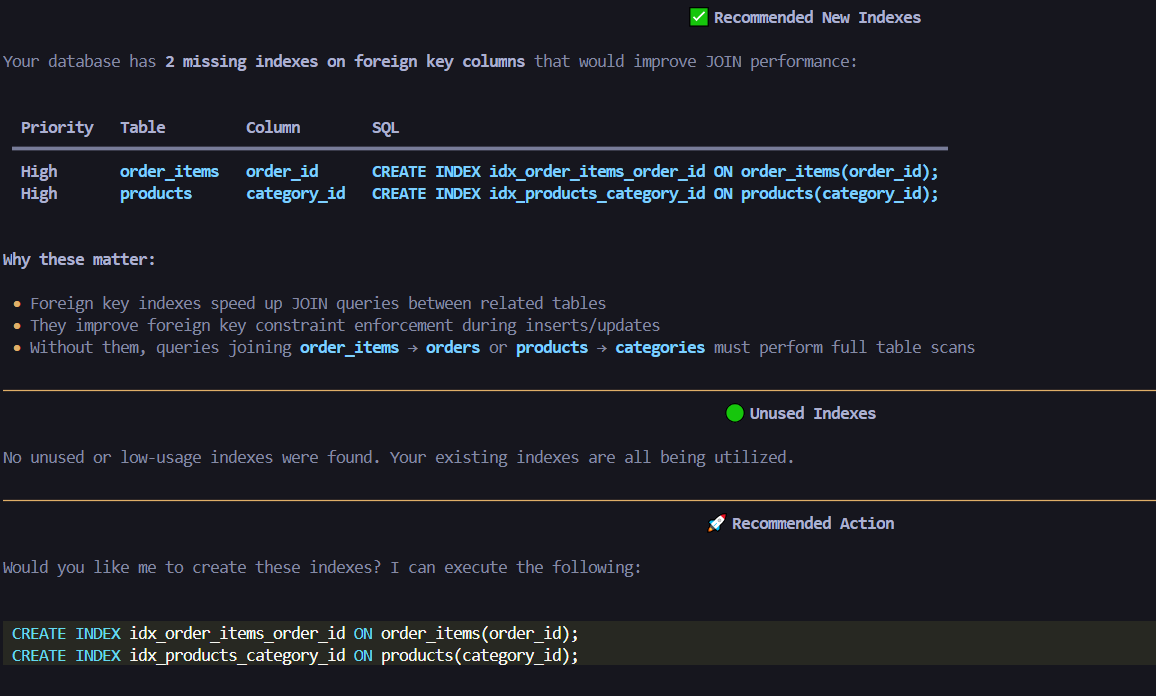

analyze_indexes(): Combined index analysis — suggest missing indexes or find unused ones (mode="suggest"|"unused"|"all")

`src/data/data_manager.py` (NEW - Phase 4A & 4B)

Data import/export and quality tools:

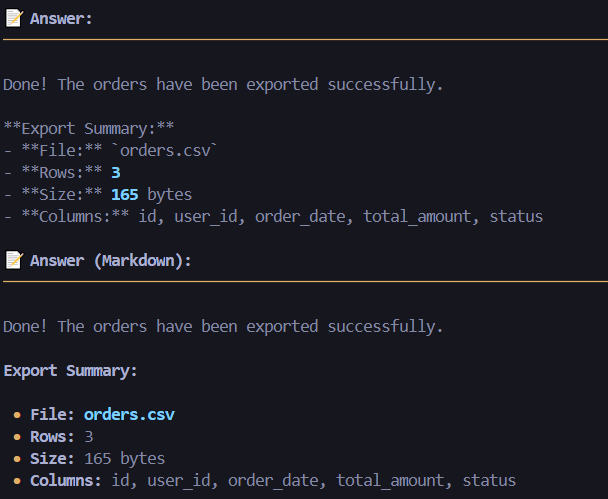

export_data(): Export to CSV/JSON/SQL formats with filtering
import_data(): Import from CSV/JSON with column mapping and conflict resolution
search_data(): Full-text search with ILIKE, LIKE, or fuzzy matching

`src/transaction/transaction_manager.py` (NEW - Phase 5A)

Transaction management and safety:

execute_transaction(): Atomic multi-operation transactions with rollback

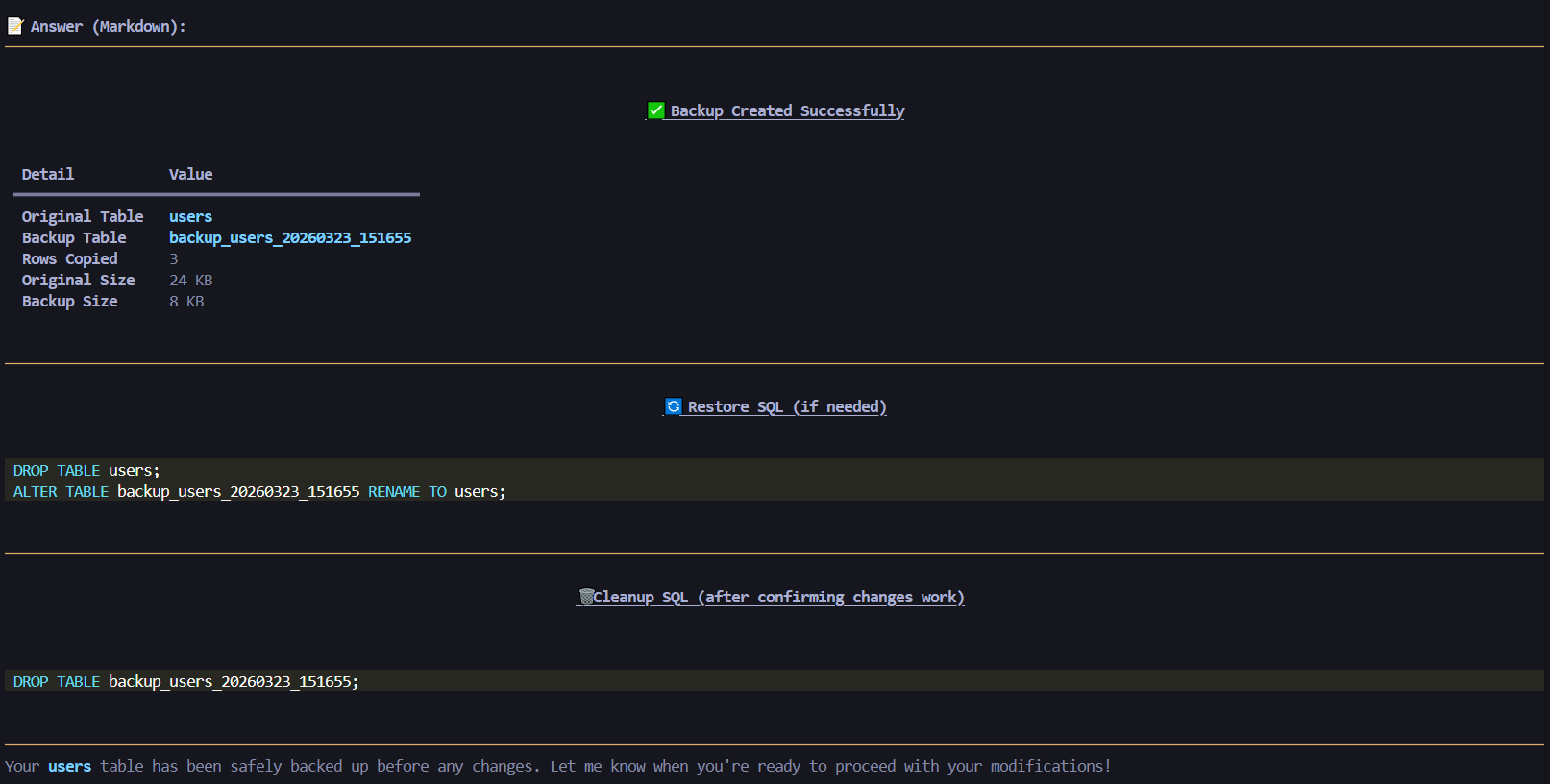

backup_table(): Quick table backup with indexes and restore SQL

`src/monitoring/monitor.py` (NEW - Phase 6A)

Database monitoring and statistics:

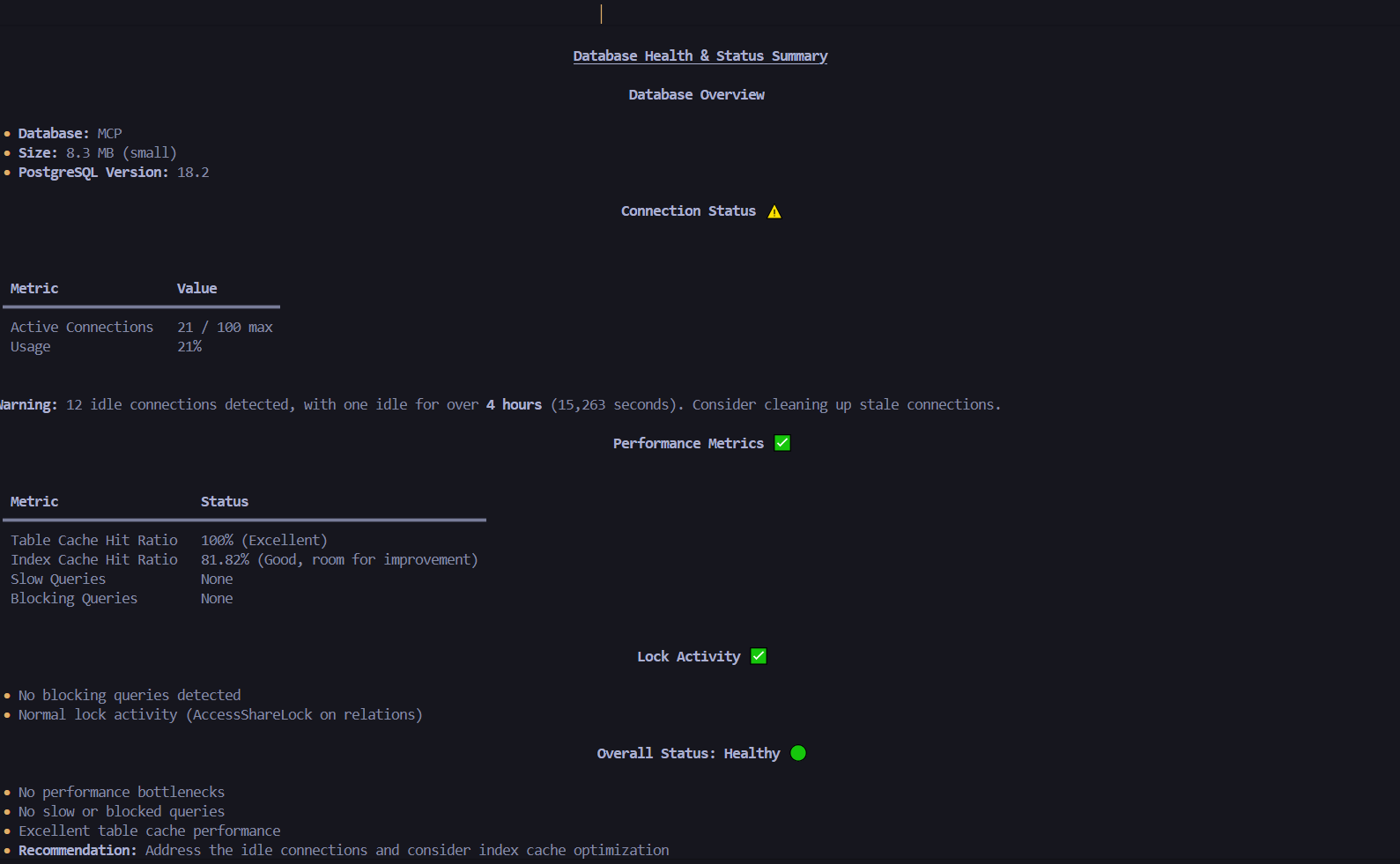

get_database_stats(): Comprehensive monitoring (size, connections, cache, slow queries, locks)

Getting Started

Prerequisites

Python 3.11+
PostgreSQL database
Ollama server (optional, for AI explanations)
uv package manager

Installation

Clone repository and install dependencies:
```
cd PostgreSQL-MCP
uv sync
```

Set environment variables (create .env):

# PostgreSQL
DB_HOST=localhost
DB_PORT=5432
DB_NAME=your_database
DB_USER=postgres
DB_PASSWORD=your_password

# Ollama/LLM
OLLAMA_BASE_URL=http://192.168.1.143:11434
OLLAMA_MODEL=deepseek-r1:14b

# App
DEBUG=False

Running the Server

# Start MCP server
uv run postgresql_server.py

Available MCP Tools (27 Total)

Category 1: Analysis & Schema Tools (5 tools)

1. `analyze_database()`

Comprehensive schema analysis without LLM.

Full schema structure (tables, columns, keys, data types)
Junction tables detected
Implicit relationships discovered
Join suggestions (INNER vs LEFT)
Mermaid ER diagram
Mermaid relationship flowchart
Comprehensive Markdown documentation

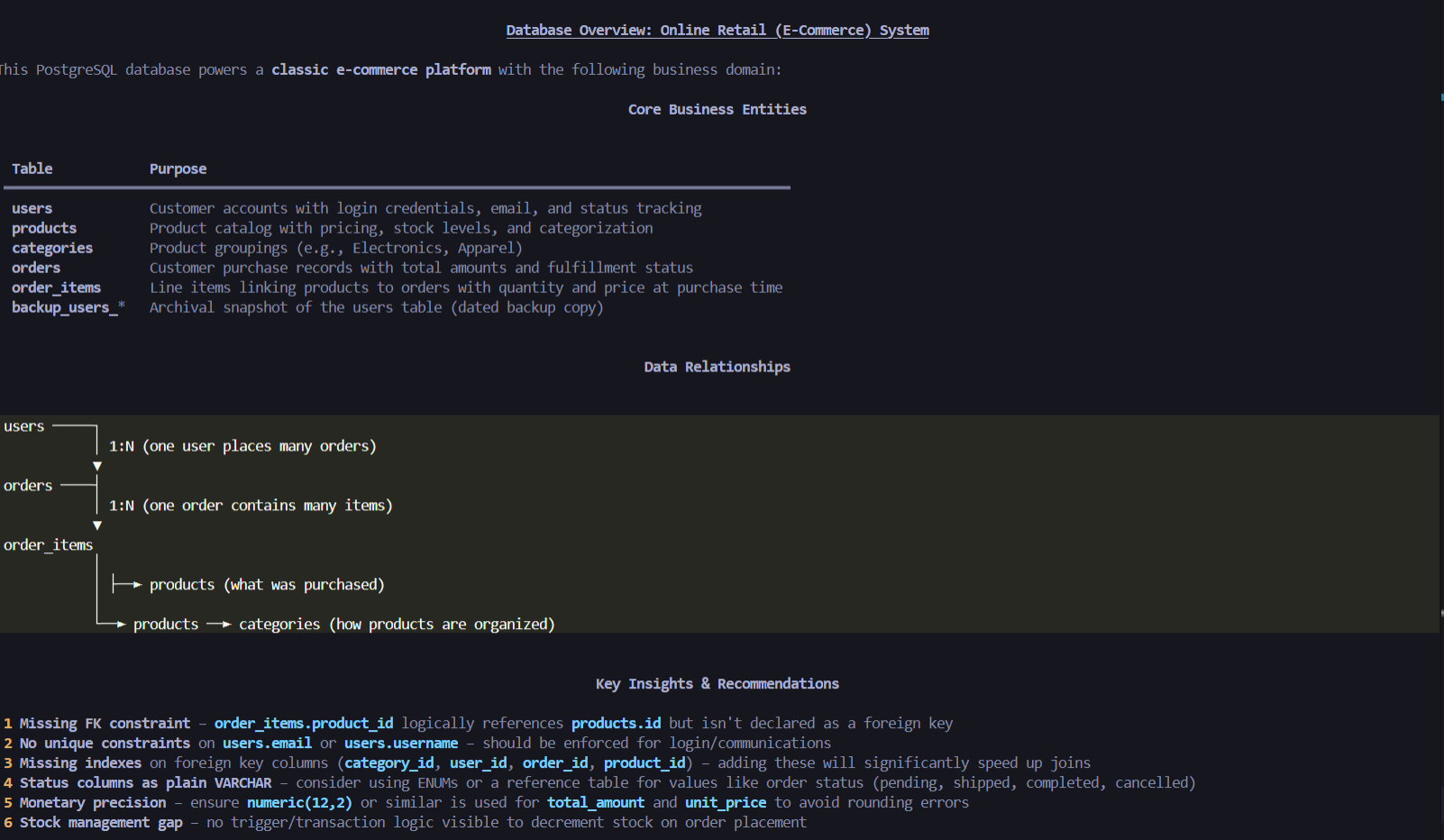

2. `explain_database()`

AI-powered database analysis using Ollama LLM.

Business explanation of database purpose
Detected relationships and join recommendations
Improved Mermaid ERD with AI insights
Database quality recommendations

3. `get_table_details(table_name: str)`

Detailed analysis of a specific table.

Table structure and relationships
Column information and constraints
Table-specific Markdown documentation

4. `get_database_info(info_type: str = "tables")`

NEW: Unified info retrieval tool - Consolidates list_tables, check_ollama_status

info_type="tables": List all tables with count
info_type="ollama": Check Ollama/LLM service status and available models
info_type="summary": Quick database statistics

5. `render_database_diagrams(output_format: str = "svg")`

Generate visual database structure diagrams.

ER Diagram (erd_svg.svg)
Flowchart (flowchart_svg.svg)
SVG/PNG/PDF files in diagrams/ directory

Category 2: CRUD Create Operations (4 tools)

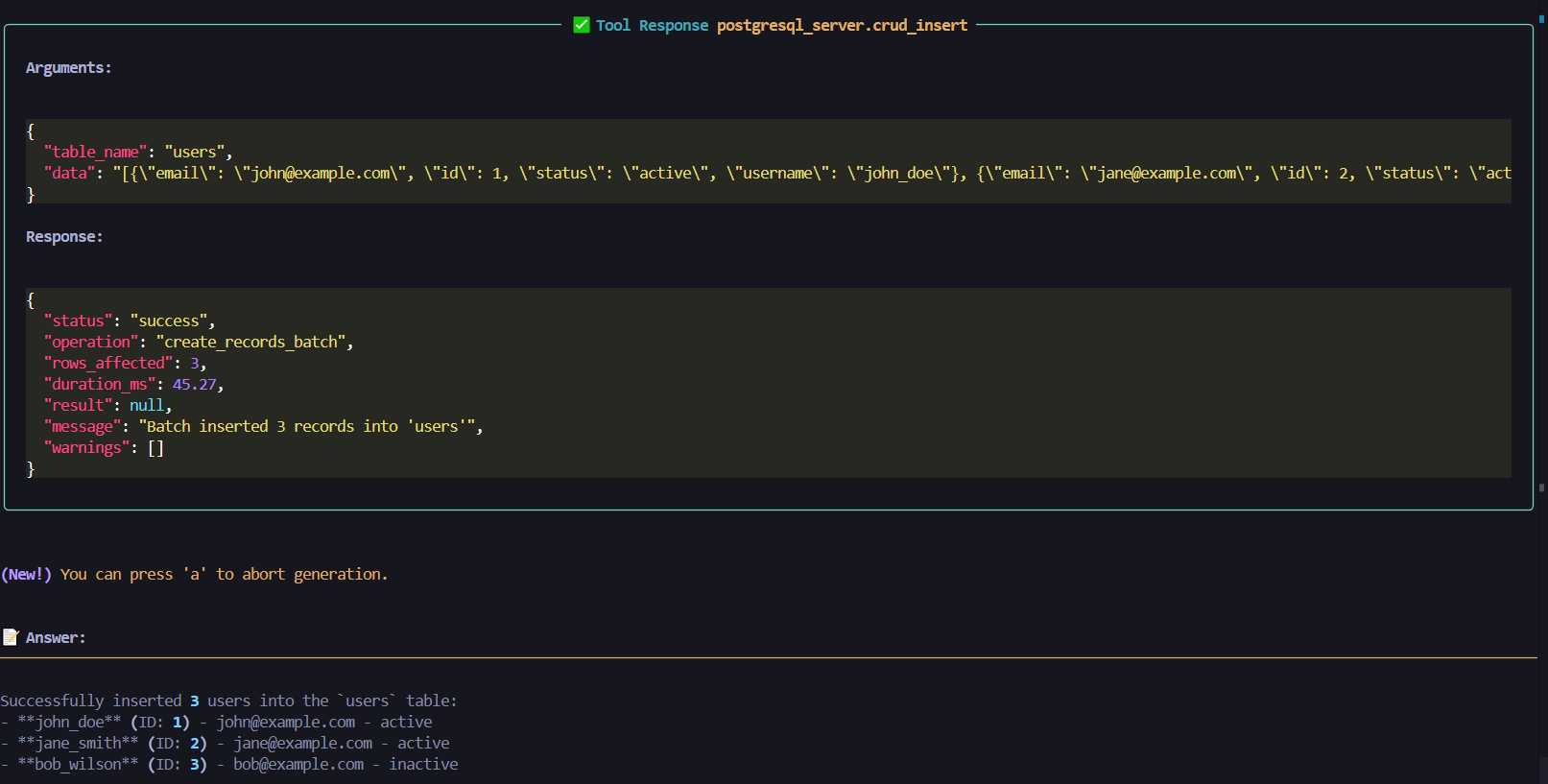

6. `crud_insert(table_name: str, data: Dict | List[Dict])`

NEW: Smart insert - Consolidates single and batch inserts

Single insert: Pass Dict → {"name": "John", "age": 30}
Batch insert: Pass List[Dict] → [{"name": "John"}, {"name": "Jane"}]
Automatic detection of single vs batch mode
Parameterized queries for SQL injection prevention

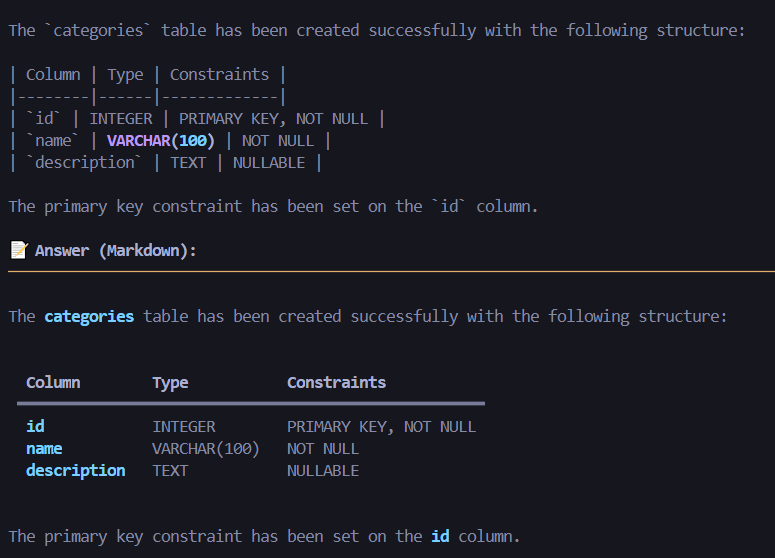

7. `crud_create_table(table_name, columns, primary_key)`

Create a new table with columns and constraints.

Define columns with types: {"name": "id", "type": "INTEGER", "nullable": False}
Optional primary key specification
Full constraint support

8. `crud_create_view(view_name, select_query, replace_if_exists)`

Create database views from SELECT queries.

Define virtual tables
Optional view replacement

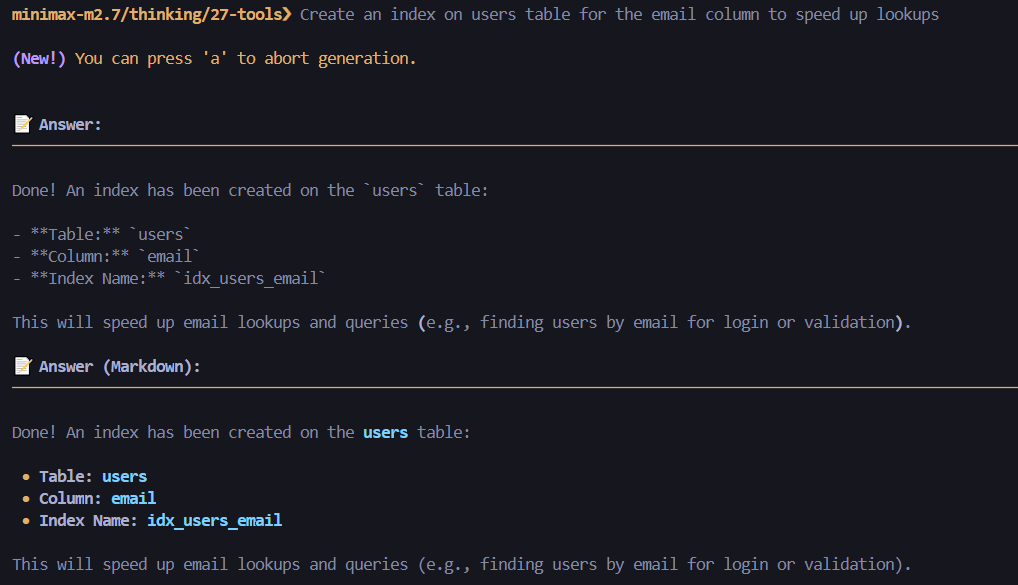

9. `crud_create_index(index_name, table_name, columns, unique)`

Create single or composite indexes.

Single column: columns=["email"]
Composite: columns=["last_name", "first_name"]
Optional UNIQUE constraint

Category 3: CRUD Read Operations (2 tools)

10. `crud_query(query, params, limit, offset)`

NEW: Raw SQL query execution - For complex queries with JOINs and aggregations

Execute any SELECT statement
Parameterized values: Use %s placeholders
Pagination support with limit/offset
Example: query="SELECT * FROM users WHERE age > %s", params=[30]

11. `crud_get(table_name, mode, where_clause, where_params, options)`

NEW: Unified high-level read - Consolidates 4 read operations

mode="records": Get filtered records (replaces crud_get_records)
mode="count": Count records (replaces crud_get_record_count)
mode="distinct": Get distinct values (replaces crud_distinct_values)
mode="paginate": Paginated results with metadata (replaces crud_paginate_data)
Full WHERE clause, ordering, and filter support

Category 4: CRUD Update Operations (2 tools)

12. `crud_update(table_name, values, where_clause, where_params, id_column, record_id)`

NEW: Unified update - Consolidates single, batch, and column updates

Single record: Provide record_id + id_column
Batch update: Provide where_clause + where_params
Column update: Single key-value in values dict
Parameterized queries for security

13. `crud_rename(object_type, old_name, new_name, table_name)`

NEW: Rename anything - Consolidates table and column rename

object_type="table": Rename table
object_type="column": Rename column (requires table_name)
Safe renaming with validation

Category 5: CRUD Delete Operations (1 tool)

14. `crud_delete(table_name, mode, where_clause, where_params, id_column, record_id, cascade)`

NEW: Unified deletion - Consolidates 4 delete operations

mode="records": Delete specific records (single or batch)
- Single: Provide record_id + id_column
- Batch: Provide where_clause + where_params
mode="truncate": Clear all data (fast, resets sequences)
mode="drop": Drop entire table (WARNING: destroys structure)
Optional cascade for dependent objects

Category 6: Schema Modification (5 tools)

15. `mod_column(table_name, action, column_name, column_spec, cascade)`

NEW: Unified column management - Consolidates 4 column operations

action="add": Add new column → column_spec={"name": "status", "type": "VARCHAR(50)"}
action="modify_type": Change data type → column_spec={"new_type": "TEXT"}
action="drop": Remove column
action="set_nullable": Toggle NULL constraint → column_spec={"is_nullable": True}

16. `mod_index(action, index_name, table_name, cascade)`

NEW: Index management - Consolidates list and drop operations

action="list": List all indexes (optionally filtered by table)
action="drop": Drop index with optional cascade

17. `mod_constraint(action, table_name, constraint_name, cascade)`

NEW: Constraint management - Consolidates list and drop operations

action="list": List all constraints (PK, FK, unique, check)
action="drop": Drop constraint with optional cascade

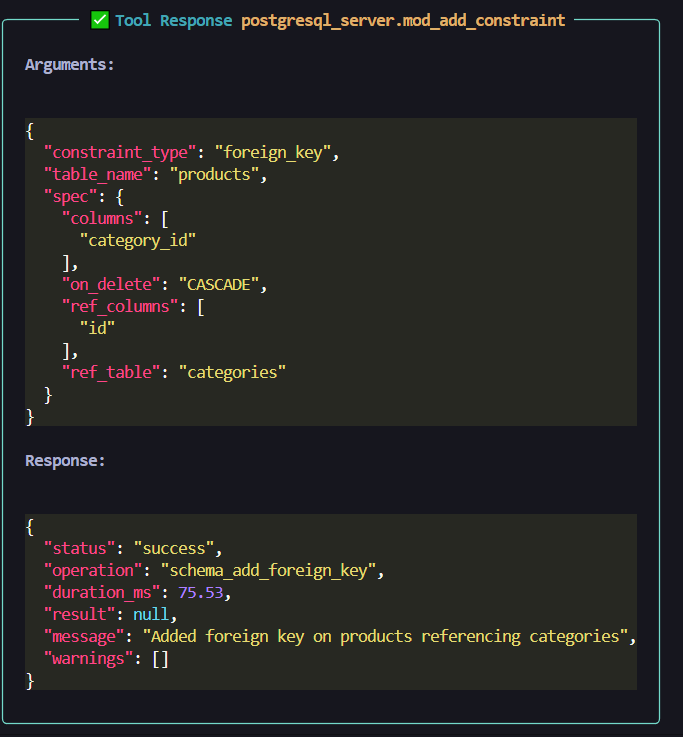

18. `mod_add_constraint(constraint_type, table_name, spec)`

NEW: Add constraints - Consolidates primary key and foreign key addition

constraint_type="primary_key" + spec={"columns": ["id"]}
constraint_type="foreign_key" + spec={"columns": ["user_id"], "ref_table": "users", "ref_columns": ["id"], "on_delete": "CASCADE"}

19. `mod_view(action, view_name, cascade)`

NEW: View management - Consolidates 3 view operations

action="list": List all views
action="get": Get view SQL definition
action="drop": Drop view with optional cascade

Category 7: Phase 3-6 Extended Tools (8 tools)

20. `query_explain(query, analyze, format)`

Get EXPLAIN / EXPLAIN ANALYZE output for any SQL query.

analyze=False: Show estimated plan only
analyze=True: Run query and show actual row counts and timings
format: "text" (default) or "json"

21. `query_analyze_indexes(mode, table_name, min_size_mb)`

Combined index analysis — suggest missing indexes or detect unused ones.

mode="suggest": Recommend indexes for FK columns and large tables (optionally scoped to table_name)
mode="unused": Find indexes with zero/low scan counts above min_size_mb
mode="all": Run both analyses and return a combined report

22. `data_export(table_name, format, where_clause, where_params, columns, limit)`

Export table data to CSV, JSON, or SQL INSERT format.

Supports column selection, WHERE filtering, and row limits
JSON output includes schema metadata

23. `data_import(table_name, data, format, column_mapping, conflict_action)`

Import data from CSV or JSON into a table.

conflict_action: "error" | "ignore" | "update"
column_mapping: Rename incoming fields to match table columns

24. `data_search(table_name, search_term, columns, search_type, limit)`

Full-text search across specified columns.

search_type: "ilike" (case-insensitive), "like" (case-sensitive), "fuzzy" (similarity)
Searches all text columns when columns is omitted

25. `transaction_execute(operations, rollback_on_error)`

Run multiple SQL operations atomically in a single transaction.

Each operation: {"sql": "...", "params": [...]}
Auto-rollback on any failure when rollback_on_error=True

26. `transaction_backup_table(table_name, backup_name, include_indexes)`

Create a quick snapshot backup of a table.

Copies data and optionally recreates indexes on the backup
Returns restore SQL to recover or diff against original

27. `monitoring_database_stats(stat_type)`

Comprehensive database health and performance monitoring.

stat_type: "summary" | "size" | "connections" | "cache_hit_ratio" | "slow_queries" | "locks" | "all"

Use OLLMCP client for locally testing with ollama providers

Security Features (All Operations):

Parameterized queries (prevents SQL injection)
Input validation (table/column name validation)
Constraint checking (validates data types and constraints)
Standardized response format with status and duration

CRUD & SCHEMA ANALYSIS VIDEO

🤝 Contributing

This project is OpenSource. Contributions are welcome

PostgreSQL MCP

PostgreSQL MCP Server

Overview

Key Features

Tool Evolution

Project Structure

Module Breakdown

config.py

src/database/connection.py

src/schema/extractor.py

src/analysis/detector.py

src/crud/crud_manager.py

src/crud/crud_validator.py

src/generation/mermaid_gen.py

src/generation/diagram_renderer.py

src/generation/markdown_gen.py

src/llm/ollama_client.py

src/query/query_optimizer.py (NEW - Phase 3A)

src/data/data_manager.py (NEW - Phase 4A & 4B)

src/transaction/transaction_manager.py (NEW - Phase 5A)

src/monitoring/monitor.py (NEW - Phase 6A)

Getting Started

Prerequisites

Installation

Running the Server

Available MCP Tools (27 Total)

Category 1: Analysis & Schema Tools (5 tools)

1. analyze_database()

2. explain_database()

3. get_table_details(table_name: str)

4. get_database_info(info_type: str = "tables")

5. render_database_diagrams(output_format: str = "svg")

Category 2: CRUD Create Operations (4 tools)

6. crud_insert(table_name: str, data: Dict | List[Dict])

7. crud_create_table(table_name, columns, primary_key)

8. crud_create_view(view_name, select_query, replace_if_exists)

9. crud_create_index(index_name, table_name, columns, unique)

Category 3: CRUD Read Operations (2 tools)

10. crud_query(query, params, limit, offset)

11. crud_get(table_name, mode, where_clause, where_params, options)

Category 4: CRUD Update Operations (2 tools)

12. crud_update(table_name, values, where_clause, where_params, id_column, record_id)

13. crud_rename(object_type, old_name, new_name, table_name)

Category 5: CRUD Delete Operations (1 tool)

14. crud_delete(table_name, mode, where_clause, where_params, id_column, record_id, cascade)

Category 6: Schema Modification (5 tools)

15. mod_column(table_name, action, column_name, column_spec, cascade)

16. mod_index(action, index_name, table_name, cascade)

17. mod_constraint(action, table_name, constraint_name, cascade)

18. mod_add_constraint(constraint_type, table_name, spec)

19. mod_view(action, view_name, cascade)

Category 7: Phase 3-6 Extended Tools (8 tools)

20. query_explain(query, analyze, format)

21. query_analyze_indexes(mode, table_name, min_size_mb)

22. data_export(table_name, format, where_clause, where_params, columns, limit)

23. data_import(table_name, data, format, column_mapping, conflict_action)

24. data_search(table_name, search_term, columns, search_type, limit)

25. transaction_execute(operations, rollback_on_error)

26. transaction_backup_table(table_name, backup_name, include_indexes)

27. monitoring_database_stats(stat_type)
