Gemini MCP

Integrate search grounded Gemini output into your workflow.

GitHub

@houtini/gemini-mcp

npm version MCP Registry Known Vulnerabilities

I've been running this MCP server in my Claude Desktop setup for months. It's one of the few I leave on permanently — not because Gemini replaces Claude, but because grounded search, image generation, SVG diagrams, and video are things Gemini does genuinely well. Having them as tools inside Claude beats switching browser tabs.

Thirteen tools. One npx command.

Gemini MCP server

Quick Navigation

Get started | What it does | SVG generation | Image output | Configuration | Tools | Models | Requirements

What it looks like

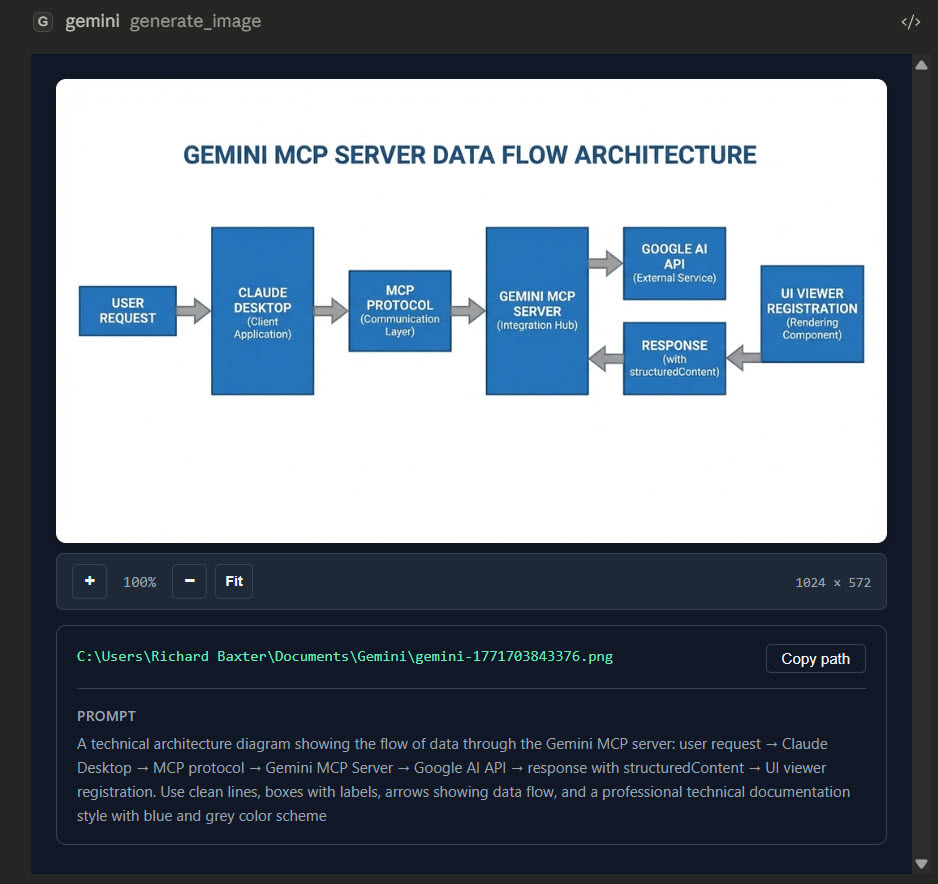

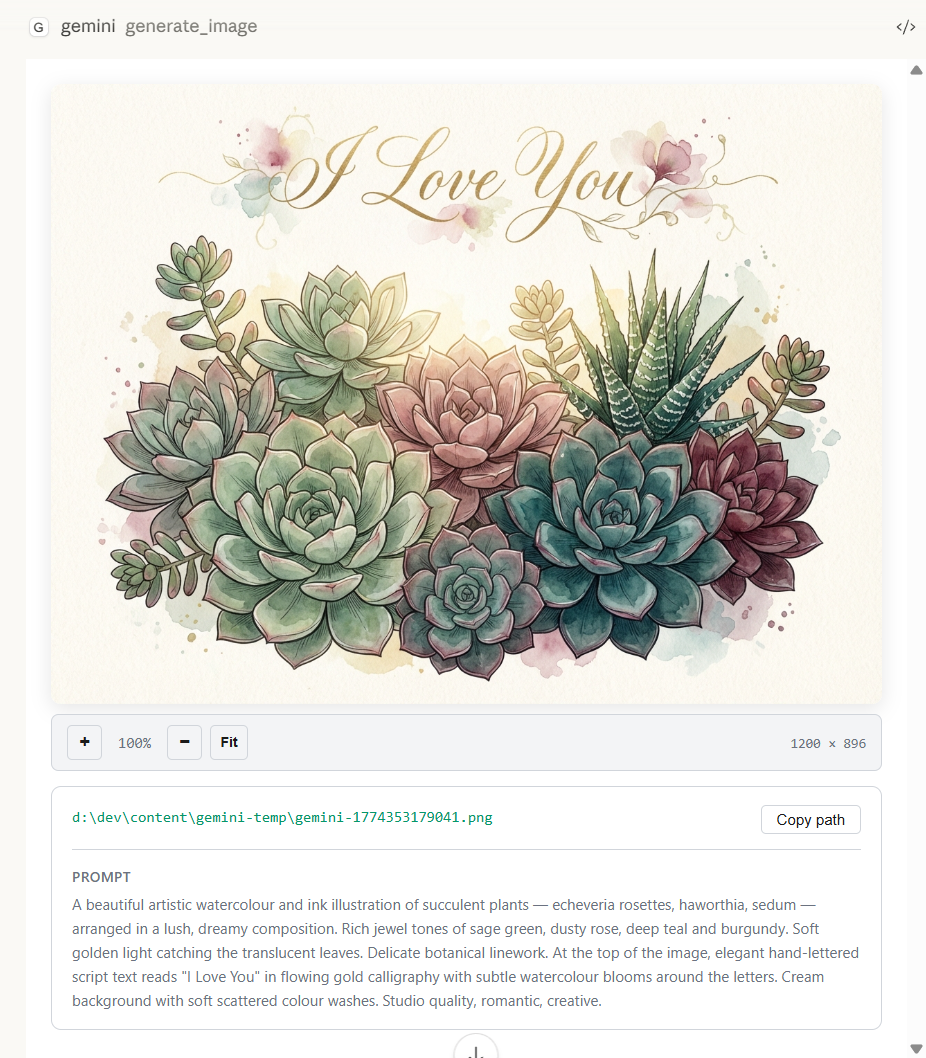

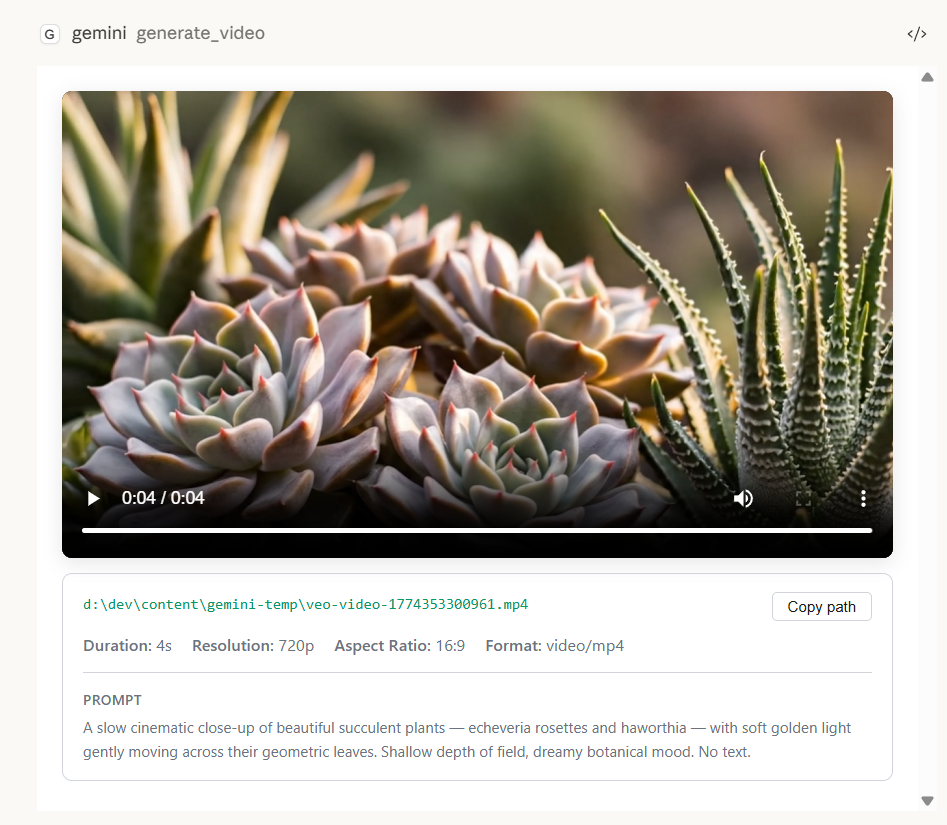

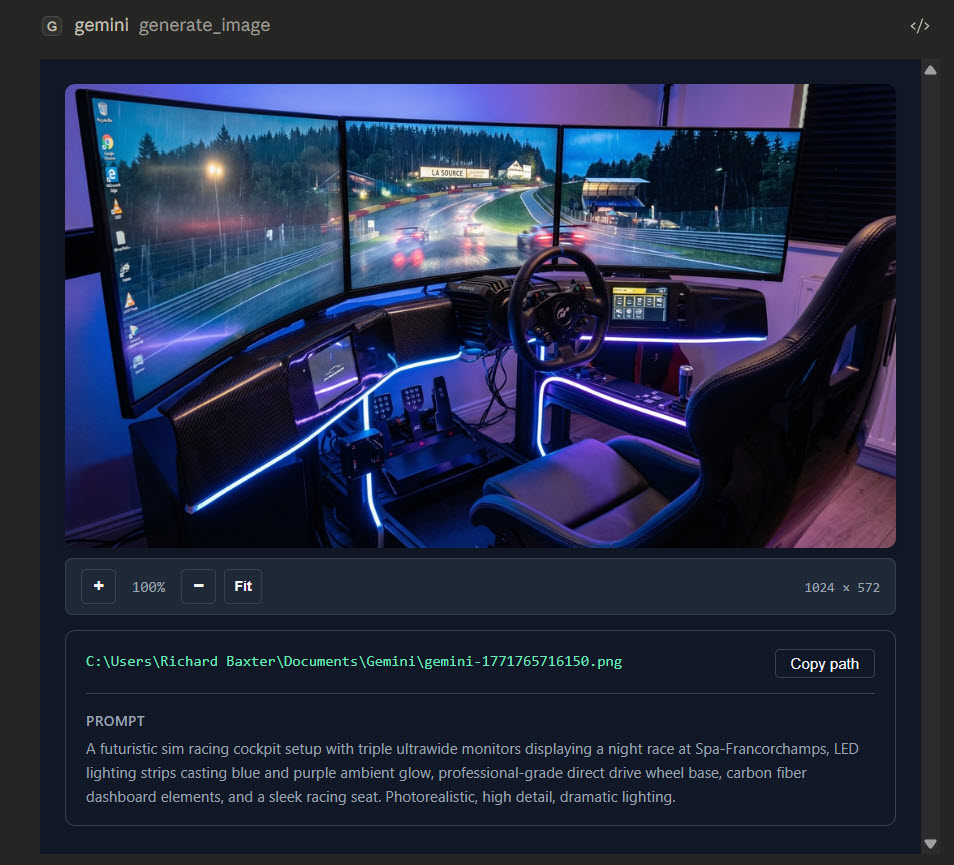

Generated images, SVGs, and videos render inline in Claude Desktop with zoom controls, file paths, and prompt context:

Image generationSVG / diagram generation
Image previewSVG preview
Image embedSVG embedVideo embed
Image embedSVG embedVideo embed

Get started in two minutes

Step 1: Get a Gemini API key

Go to Google AI Studio and create one. The free tier covers most development use — you'll hit rate limits on deep research if you're hammering it, but for day-to-day work it's fine.

Step 2: Add to your Claude Desktop config

Config file locations:

  • Windows: C:\Users\{username}\AppData\Roaming\Claude\claude_desktop_config.json
  • macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
{
  "mcpServers": {
    "gemini": {
      "command": "npx",
      "args": ["@houtini/gemini-mcp"],
      "env": {
        "GEMINI_API_KEY": "your-api-key-here"
      }
    }
  }
}

Step 3: Restart Claude Desktop

That's it. Tools show up automatically. npx pulls the package on first run — no separate install needed.

Local build instead

For development, or if you'd rather not rely on npx:

git clone https://github.com/houtini-ai/gemini-mcp
cd gemini-mcp
npm install --include=dev
npm run build

Then point your config at the local build:

{
  "mcpServers": {
    "gemini": {
      "command": "node",
      "args": ["C:/path/to/gemini-mcp/dist/index.js"],
      "env": {
        "GEMINI_API_KEY": "your-api-key-here"
      }
    }
  }
}

Claude Code (CLI)

Claude Code uses a different registration mechanism — it doesn't read claude_desktop_config.json. Use claude mcp add instead:

claude mcp add -e GEMINI_API_KEY=your-api-key-here -s user gemini -- npx -y @houtini/gemini-mcp

With optional image output directory:

claude mcp add \
  -e GEMINI_API_KEY=your-api-key-here \
  -e GEMINI_IMAGE_OUTPUT_DIR=/path/to/output \
  -s user \
  gemini -- npx -y @houtini/gemini-mcp

Verify with claude mcp get gemini — you should see Status: Connected.

What it does

Chat with Google Search grounding

Use gemini:gemini_chat to ask: "What changed in the MCP spec in the last month?"

Grounding is on by default. Gemini searches Google before answering, so you get current information rather than training cutoff answers. Sources come back as markdown links. For questions where you want pure reasoning — "explain this code" or similar — set grounding: false.

Supports thinking_level on Gemini 3 models: high for maximum reasoning depth, low to keep it fast, medium/minimal on Gemini 3 Flash only.

Deep research

Use gemini:gemini_deep_research with:
  research_question="What are the current approaches to AI agent memory management?"
  max_iterations=5

Runs multiple grounded search iterations then synthesises a full report. Takes 2-5 minutes depending on complexity — worth it for anything needing comprehensive coverage rather than a quick answer.

Set max_iterations to 3-4 in Claude Desktop (4-minute tool timeout). In IDEs (Cursor, Windsurf, VS Code) or agent frameworks, 7-10 iterations produces noticeably better synthesis. Pass focus_areas as an array to steer toward specific angles.

Image generation with search grounding

Use gemini:generate_image with:
  prompt="Stock price chart showing Apple (AAPL) closing prices for the last 5 trading days"
  use_search=true
  aspectRatio="16:9"

Default model is gemini-3-pro-image-preview (Nano Banana Pro). Also supports gemini-2.5-flash-image for faster generation.

When use_search=true, Gemini searches Google for current data before generating. Financial and news queries work reliably. The full-resolution image saves to disk automatically — the inline preview is resized for transport but the original is untouched.

Video generation with Veo 3.1

Use gemini:generate_video with:
  prompt="A close-up shot of a futuristic coffee machine brewing a glowing blue espresso, steam rising dramatically. Cinematic lighting."
  resolution="1080p"
  durationSeconds=8

Uses Google's Veo 3.1 model. Generates 4-8 second videos at up to 4K with native synchronised audio. Processing takes 2-5 minutes — the tool polls automatically until ready.

Options worth knowing:

  • aspectRatio — 16:9 landscape or 9:16 portrait/vertical
  • generateAudio — on by default, produces dialogue and sound effects matching the prompt
  • sampleCount — generate up to 4 variations in one call
  • seed — deterministic output across runs
  • generateThumbnail — extracts a frame via ffmpeg (needs ffmpeg in PATH)
  • firstFrameImage — animate from a starting image (image-to-video)

SVG generation

This is the one people underestimate. SVG output isn't just diagrams — it's production-ready vector graphics you can drop straight into a codebase, a presentation, or a web page. Clean, scalable, no raster artefacts.

Use gemini:generate_svg with:
  prompt="Architecture diagram showing a microservices system with API gateway, three services, and a shared database"
  style="technical"
  width=1000
  height=600

Four styles:

StyleBest for
technicalArchitecture diagrams, flowcharts, system maps
artisticIllustrations, decorative graphics, icons
minimalClean data visualisations, simple charts
data-vizComplex charts, dashboards, infographics

The output is actual SVG code — edit it, animate it, embed it in HTML, commit it to a repo. No rasterising, no export steps, no Figma required.

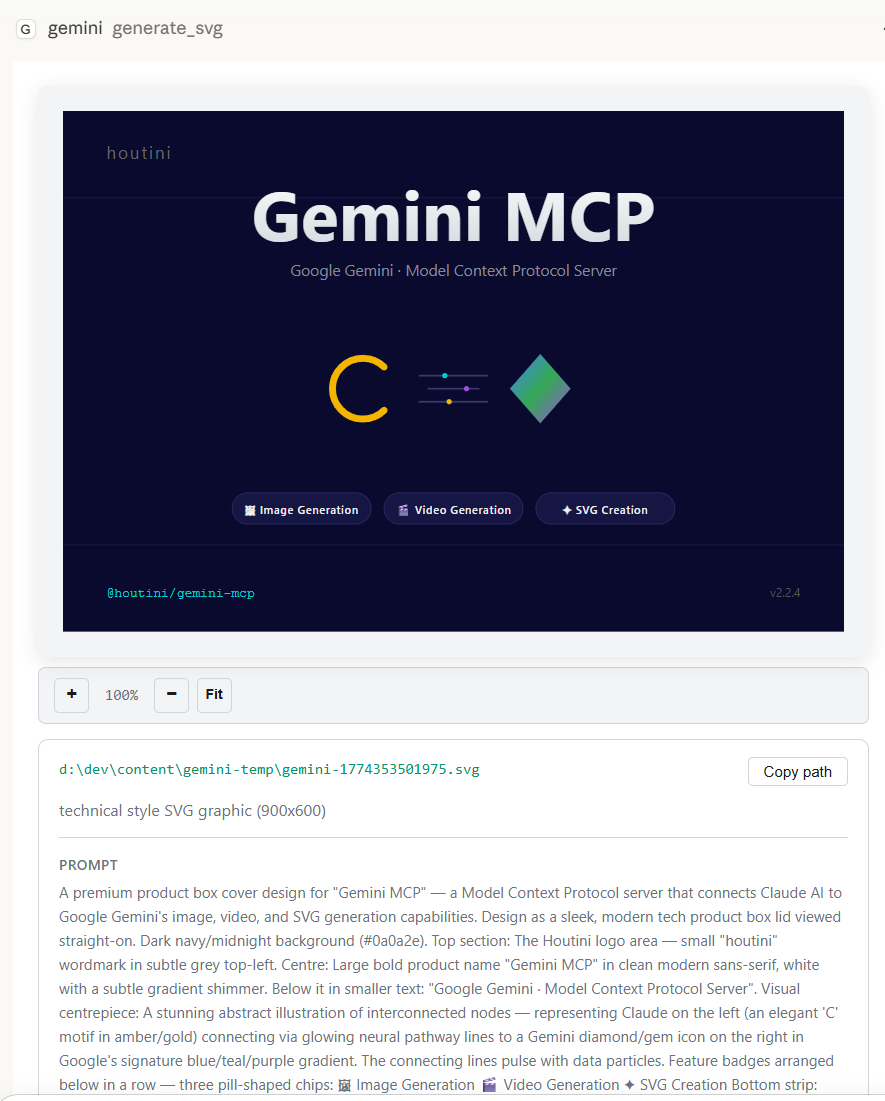

SVG generation in Claude Desktop

Image editing and analysis

Conversational editing — Gemini 3 Pro Image maintains context across editing turns. Pass thought signatures back on subsequent edit_image calls for full continuity:

Use gemini:edit_image with:
  prompt="Change the colour scheme to blue and green"
  images=[{data: imageBase64, mimeType: "image/png", thoughtSignature: "fromPreviousCall"}]

Analysis — two tools for different purposes:

  • describe_image — Fast general descriptions using Gemini 3 Flash
  • analyze_image — Structured extraction and detailed reasoning using Gemini 3.1 Pro

Load local files:

Use gemini:load_image_from_path with filePath="C:/screenshots/error.png"

Media resolution control

Reduce token usage by up to 75% whilst maintaining quality for the task:

LevelTokensSavingsBest for
MEDIA_RESOLUTION_LOW28075%Simple tasks, bulk operations
MEDIA_RESOLUTION_MEDIUM56050%PDFs/documents (OCR saturates here)
MEDIA_RESOLUTION_HIGH1120defaultDetailed analysis
MEDIA_RESOLUTION_ULTRA_HIGH2000+per-image onlyMaximum detail

For PDF OCR, MEDIUM gives identical text extraction quality to HIGH at half the tokens.

Landing page generation

Use gemini:generate_landing_page with:
  brief="A SaaS tool that helps developers monitor API latency"
  companyName="PingWatch"
  primaryColour="#6366F1"
  style="startup"
  sections=["hero", "features", "pricing", "cta"]

Returns a self-contained HTML file — inline CSS and vanilla JS, no external dependencies. Styles: minimal, bold, corporate, startup.

Professional chart design systems

gemini_prompt_assistant includes 9 professional chart design systems:

SystemInspirationBest for
storytellingCole Nussbaumer KnaflicExecutive presentations
financialFinancial TimesEditorial journalism — FT Pink, serif titles
terminalBloomberg / FintechHigh-density dark mode with neon
modernistW.E.B. Du BoisBold geometric blocks, stark contrasts
professionalIBM Carbon / TailwindEnterprise dashboards
editorialFiveThirtyEight / EconomistData journalism
scientificNature / ScienceAcademic rigour
minimalEdward TufteMaximum data-ink ratio
darkObservableModern dark mode

Help system

Use gemini:gemini_help with topic="overview"

Full documentation without leaving Claude. Topics: overview, image_generation, image_editing, image_analysis, chat, deep_research, grounding, media_resolution, models, all.

Image output and storage

By default, images return as inline previews rendered directly in Claude. Set GEMINI_IMAGE_OUTPUT_DIR to auto-save everything:

"env": {
  "GEMINI_API_KEY": "your-api-key-here",
  "GEMINI_IMAGE_OUTPUT_DIR": "C:/Users/username/Pictures/gemini-output"
}

The server uses a two-tier approach to handle the MCP protocol's 1MB JSON-RPC limit whilst preserving full-resolution files:

TierPurpose
Full-resSaved to disk immediately, untouched
PreviewResized JPEG for inline transport — dynamically sized to fit under the cap

Gemini returns 2-5MB images. The resize is smart — it measures the non-image overhead in each response and calculates the exact binary budget available, stepping down dimensions (800→600→400→300→200px) until it fits. The full image is always there on disk.

Configuration reference

VariableRequiredDefaultDescription
GEMINI_API_KEYYes—Google AI API key from AI Studio
GEMINI_DEFAULT_MODELNogemini-3.1-pro-previewDefault model for gemini_chat and analyze_image
GEMINI_DEFAULT_GROUNDINGNotrueEnable Google Search grounding by default
GEMINI_IMAGE_OUTPUT_DIRNo—Auto-save directory for generated images and videos
GEMINI_ALLOW_EXPERIMENTALNofalseInclude experimental/preview models in auto-discovery
GEMINI_MCP_LOG_FILENofalseWrite logs to ~/.gemini-mcp/logs/
DEBUG_MCPNofalseLog to stderr for debugging tool calls

Tools reference

ToolDescription
gemini_chatChat with Gemini 3.1 Pro. Google Search grounding on by default. Supports thinking_level
gemini_deep_researchMulti-step iterative research with Google Search. Synthesises comprehensive reports
gemini_list_modelsLists available models from the Gemini API
gemini_helpDocumentation for all features without leaving Claude
gemini_prompt_assistantExpert guidance for image generation with 9 chart design systems
generate_imageImage generation with optional search grounding. Full-res saved to disk
edit_imageEdit images with natural-language instructions. Multi-turn continuity via thought signatures
describe_imageFast image descriptions using Gemini 3 Flash
analyze_imageStructured extraction and analysis using Gemini 3.1 Pro
load_image_from_pathRead a local image file and return base64 for any image tool
generate_videoVideo generation with Veo 3.1 — 4-8 seconds at up to 4K with native audio
generate_svgProduction-ready SVG: diagrams, illustrations, icons, data visualisations
generate_landing_pageSelf-contained HTML landing pages with inline CSS/JS

Model reference

ModelUsed byNotes
gemini-3.1-pro-previewgemini_chat, analyze_imageDefault. Advanced reasoning
gemini-3-pro-image-previewgenerate_image, edit_imageNano Banana Pro — highest quality image generation
gemini-2.5-flash-imagegenerate_image (optional)Faster generation, higher volume
gemini-3-flash-previewdescribe_imageFast general descriptions
veo-3.1-generate-previewgenerate_videoVeo 3.1 — 4K video with native audio

Gemini 3 notes: Temperature is forced to 1.0 on Gemini 3 models (Google's requirement — lower values cause looping). Thinking level only applies to gemini_chat.

Requirements

  • Node.js 18+
  • A Gemini API key from Google AI Studio
  • ffmpeg (optional, for video thumbnail extraction)

Licence

Apache-2.0
