Truepane

Truepane

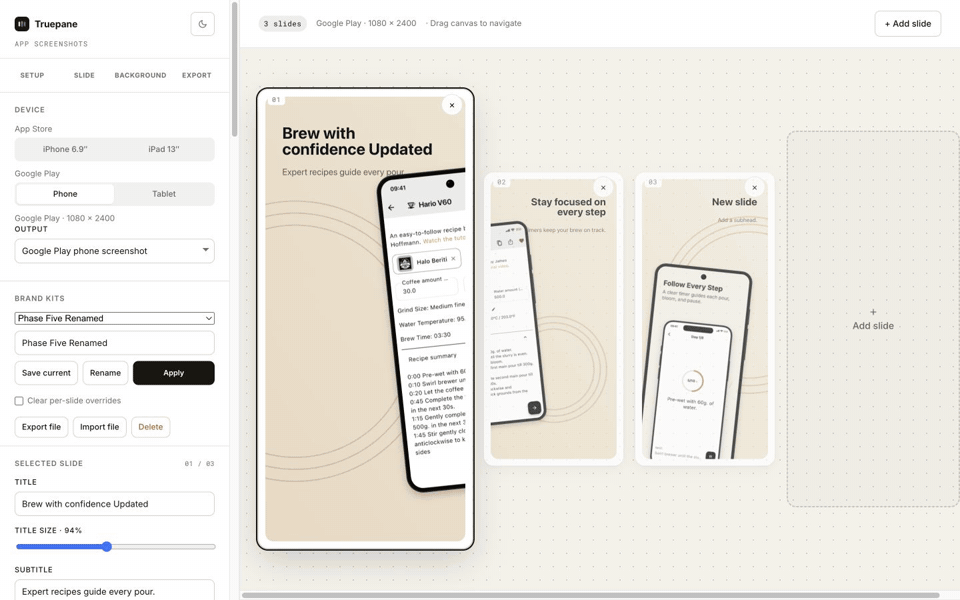

Truepane is a small, fast, browser-based app screenshot generator for the App Store and Google Play — title + subhead text, a device frame, your screenshot, and a generated background, exported as individual PNGs, a horizontal strip, or a ZIP.

Everything renders to <canvas> in the browser. Screenshots stay on your machine. Optional AI helpers send only the text you ask them to process (and, when supplied, your Groq API key) to the configured Edge Function and model provider. Google Fonts are also loaded from Google's CDN unless you use a system or uploaded font.

Guides

• Create App Store screenshots with Codex or Claude Code
• Update localized App Store screenshots without uploading them

Why this exists

Most screenshot generators composite a pre-rendered PNG of a phone. This one draws the device frame procedurally on a canvas — body, bezel, buttons, camera, and the screen mask are all geometry, not bitmaps. That choice drives most of what makes the tool small, sharp, and cheap to run.

Features

• Procedural device frames at exact store sizes: iPhone 6.9″ (1320×2868), iPad 13″ (2064×2752), Android phone (1080×2400), Android tablet (1600×2560).
• Backgrounds = fill + shape. A fill layer (solid, or linear/radial gradient) plus an optional shape overlay (rings, blobs, waves, dots, mesh, arcs, triangles, grid, zigzag, bubbles), each with independent colors. Shapes flow continuously across the strip and reproduce exactly from a stored seed.
• Color tools: content-based palette extraction from your screenshot, harmonized shape suggestions, an eyedropper (native EyeDropper API + a click-a-slide fallback for Safari/Firefox), and curated color-science presets.
• AI prompt → style (optional): describe a vibe ("calm, warm, organic") and a Groq model returns a style + palette. Bring your own Groq key, or use the hosted endpoint.
• Typography: curated Google Fonts (incl. Apple/Android system fonts and Noto multi-script + CJK) plus custom .ttf/.otf/.woff(2) upload.
• Flexible composition: choose a preset or place text and devices directly, resize them, rotate devices from −20° to +20°, and drag or nudge mockups on canvas.
• Cross-slide devices: span one synchronized device across two adjacent slides. Both clipped halves share their screenshot, position, scale, and rotation.
• Export: per-slide PNG, one horizontal strip PNG, or a ZIP of everything. Plus JSON project import/export. State auto-saves to localStorage.
• Multi-platform projects: keep separate iPhone, iPad, Android phone, and Android tablet captures on the same ordered slides. Locale screenshots fall back only to their own target's source capture; they never borrow another platform's image.
• Preview-first bulk import: choose a folder or ZIP, review deterministic target/locale/slide mappings, correct rows, then apply once. Explicit target/locale/NN-name.png paths take priority; conflicts never overwrite silently.
• Shared release preflight: the editor and MCP report the same stable issue codes for missing captures/translations, locale fallbacks, crop risk, composition, fonts, and fill/text contrast. Warnings are advisory and require “export anyway” in the web editor.
• Local brand kits: save typography, text colors, background, custom font, and default composition for reuse. Kits are portable .truepane-brand.json files and never contain slides, screenshots, targets, translations, credentials, or history.
• Flexible output surfaces: keep the four native store screenshot sizes, render a Google Play feature graphic at exactly 1024×500, or choose bounded custom dimensions. The procedural device is scaled and placed as a layer; captures are never stretched.
• Release update mode: explicitly save deterministic release signatures, compare added/changed/unchanged/removed assets later, and export a changed-only ZIP with a manifest. Baselines contain hashes, not rendered PNGs, and never update implicitly.

Design decisions (the interesting part)

Each of these was a deliberate fork, chosen for a reason:

• Procedural frames, not image mockups. The target is flat store-submission screenshots at exact required resolutions — which procedural drawing nails: crisp at any scale, no asset pipeline, and no licensing exposure (most "free" device-mockup packs are not actually clean for commercial redistribution). Flat 2D rotation is supported; perspective and photographic mockups remain out of scope.
• Parametric backgrounds, not diffusion images. Backgrounds are seeded procedural shapes that reproduce exactly and stay tasteful. A raster image model would be unpredictable, costly per call, hard to keep consistent across a set, and would force a heavier backend. AI is used only as a thin prompt → parameters layer.
• Content-based palette runs entirely client-side — no model, no cost.
• $0-egress architecture. The app is static and all image work happens in the browser, so hosting bandwidth is effectively free. The only metered cost is the optional AI prompt call, which is rate-limited and can be replaced with your own key.

Architecture

• src/render.ts — the rendering engine. Pure canvas drawing, no React. Defines the device frames and paints every pixel.
  • Concentric-corner invariant: the BODY / BEZEL / SCREEN rounded rects share a center of curvature (x + r equal across all three; same for y + r). Breaking it produces "laddery" corner kinks. New frames go through defineFrame(), which throws on violation; the shell() helper derives the inner rects so the invariant holds by construction.
  • Backgrounds render in two layers: a fill (solid / linear / radial gradient) then an optional shape overlay from a generator registry. Each shape lays out in strip-space so it flows across slides; a seeded mulberry32 PRNG keeps a strip reproducible.
  • Masking uses offscreen canvases with destination-in / destination-out (rather than ctx.clip()) to get antialiased edges.
• src/App.tsx — single source of truth for { slides, settings }, persistence (localStorage), font loading, and all export paths.
• src/Sidebar.tsx — the control panel. src/components.tsx — reusable controls and the slide preview. src/palette.ts — screenshot palette extraction. src/ai.ts — client for the AI endpoint.
• supabase/functions/generator-bg-prompt/ — the Edge Function that turns a prompt into validated, clamped style params (raw model output never reaches the renderer).

Running locally

npm install
npm run dev        # http://localhost:5173
npm run build      # tsc -b && vite build → dist/
npm run preview    # serve the production build
npm run typecheck
npm test           # vitest (pure-logic suite)

Configuration

The AI prompt feature is optional. Without it, the app is fully functional and the AI controls are hidden. To enable them, copy .env.example to .env and opt in:

VITE_ENABLE_AI=true
VITE_BG_PROMPT_URL=https://YOUR-PROJECT.supabase.co/functions/v1/generator-bg-prompt
VITE_SUPABASE_ANON_KEY=your-anon-key

The Edge Function reads GROQ_API_KEY from its Supabase secrets (and an optional BG_PROMPT_MODEL, default llama-3.3-70b-versatile). Deploy it with:

supabase functions deploy generator-bg-prompt --project-ref YOUR-REF --no-verify-jwt

Server-side rate limiting is currently best-effort (in-memory, per isolate). Add a durable limiter before a high-traffic public launch.

Temporary beta gate

A soft, client-side password gate can be enabled during private beta by setting VITE_GATE_PASSWORD_HASH to the SHA-256 of your password (unset = no gate):

printf '%s' 'your-password' | shasum -a 256   # put the hash in .env

It's a deterrent, not real security (it's a static client app) — meant to be removed after beta.

Use with AI agents (MCP)

Truepane ships a local MCP server, so an AI agent (Claude Code, Codex, …) can take simulator screenshots and turn them into store-ready slides without a human driving the browser UI. It renders with a native canvas (@napi-rs/canvas) — screenshots are read from local paths and PNGs are written to local paths; nothing is uploaded anywhere, and no configuration or env vars are needed: the agent is the LLM, so styling and translation are its own judgment calls (the web app's AI helpers are not involved).

It's a standard stdio MCP server published to npm as truepane-mcp, so any MCP-capable client can launch it with npx -y truepane-mcp — no checkout needed. Setup for the common ones:

Claude Code

claude mcp add truepane -- npx -y truepane-mcp

Codex CLI — add to ~/.codex/config.toml:

[mcp_servers.truepane]
command = "npx"
args = ["-y", "truepane-mcp"]

Cursor, Windsurf, Claude Desktop, and other JSON-config clients — add to the client's mcpServers block (e.g. .cursor/mcp.json, claude_desktop_config.json):

{
  "mcpServers": {
    "truepane": { "command": "npx", "args": ["-y", "truepane-mcp"] }
  }
}

The server lives in packages/truepane-mcp. To run it from a repo checkout instead (for development), point the client's command at npx tsx server/mcp/index.ts, or npm run mcp:build and run node packages/truepane-mcp/dist/index.js.

Workflow the tools expect

1. list_options — start here to discover the full workflow, platforms (with exact store pixel sizes), output surfaces, fonts, fills, shapes, and composition presets.
2. create_project — slide titles/subheads + absolute screenshot file paths. Pass targets to start a multi-platform project.
3. set_style — colors, background, typography (font, titleScale/subtitleScale, and titleWeight/subtitleWeight from 100–900), chosen with the agent's own design judgment (suggest_palette_from_screenshot extracts an accent + background tint from a screenshot with pure local math if a starting point helps). Its composition patch controls normalized text/device position, size, alignment, and flat rotation. Use slide_index for a slide-specific composition.
4. set_screenshots — attach each capture with its target and optional language. A missing target stays visibly empty; Truepane never stretches a capture from a different platform into it. For a prepared directory, import_screenshots returns a dry-run mapping by default; repeat with apply: true, dry_run: false to apply only non-conflicting files.
5. render — writes full-resolution PNGs (e.g. iPhone 6.9″ = 1320×2868) into an output dir you pass, and returns a small inline preview to inspect. Adjust and re-render until it looks right. Pass target: "all" for one folder per target. render summarizes advisory preflight warnings; call validate_project for the complete ordered target/locale/slide matrix.
6. set_translations — the agent translates the slide texts itself and stores the results per language; then render with language: "all" writes per-language subfolders (source/, es/, …), matching the web app's all-languages ZIP. A locale can also carry its own screenshots (for apps whose UI is itself localized): pass screenshot_path per slide here, or set_screenshots with a language; a locale without its own screenshot reuses the base one. Each language can render in its own font too (font here, or set_style with a language) — e.g. San Francisco for the base and Noto Sans Arabic for ar — since the server has no per-glyph fallback for scripts a font doesn't cover.
7. export_project / load_project — round-trip v2 project JSON with the web app's Import/Export Project, so a human can fine-tune the agent's work (or vice versa).

Use span_device_across_slides to place one device across an adjacent slide pair. The two clipped halves keep their screenshot, position, scale, and rotation linked, including after project export/import and later screenshot or copy updates.

export_brand_kit and apply_brand_kit move the current visual defaults between projects without carrying project content. Applying preserves per-slide overrides unless clear_slide_overrides: true is explicitly supplied.

Use set_output to persist a native, play-feature, or custom output on an MCP project. render also accepts temporary output_id, output_width, output_height, and output_frame overrides.

Use compare_release, set_release_baseline, and render changed_only:true for release updates through MCP. Any future pixel-affecting renderer change must bump RENDERER_SCHEMA_VERSION in src/core/release.ts, intentionally marking every asset changed.

Google Fonts are fetched on demand and cached in ~/.cache/truepane/fonts (Inter is bundled, so offline rendering works out of the box). The -apple-system font renders as real San Francisco on macOS — from your own installed system font, which is never bundled or redistributed (Apple's font is proprietary) — and falls back to Inter on Linux/CI. Because SF is a variable font, its full weight range resolves (including Heavy/Black via titleWeight/subtitleWeight), not just Regular/Bold. A curated set of Google fonts — Inter, Manrope, and Fraunces — is loaded as a single-file variable font too, so their full weight range resolves as well; every other Google font uses its static faces (typically up to 700). Want another font's full range? Open an issue or PR adding it to VARIABLE_FONT_URLS in server/mcp/fonts.ts. For non-Latin target languages, pick a font that covers the script (Inter covers Cyrillic/Greek; Noto Sans JP/KR/SC for CJK; Noto Sans Arabic for Arabic, which is shaped and laid out right-to-left automatically) — unlike browsers, server-side rendering has no per-glyph system-font fallback, so glyphs a font lacks come out as boxes.

Deployment

Builds to a static site in dist/ — deploy anywhere. Cloudflare Pages is recommended (unlimited bandwidth on the free tier, so egress stays $0): build command npm run build, output directory dist. Set the two VITE_* variables in the Pages project to enable AI.

License

AGPL-3.0. Because this is a client-side app, the source is distributed to every browser — so forks, including publicly hosted ones, must make their source available under the same license.

The Inter font files bundled with truepane-mcp are distributed under the SIL Open Font License 1.1; the copyright notice and license travel with them in server/mcp/assets/fonts/LICENSE-Inter.txt and in the published npm package.

Support

If this is useful to you, sponsorship is welcome — see .github/FUNDING.yml.
